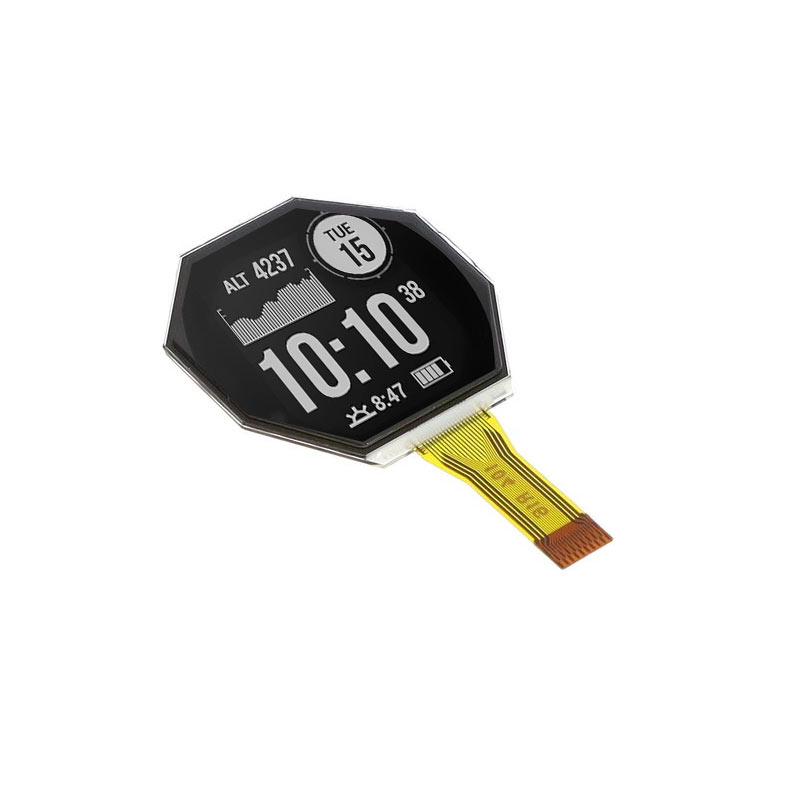

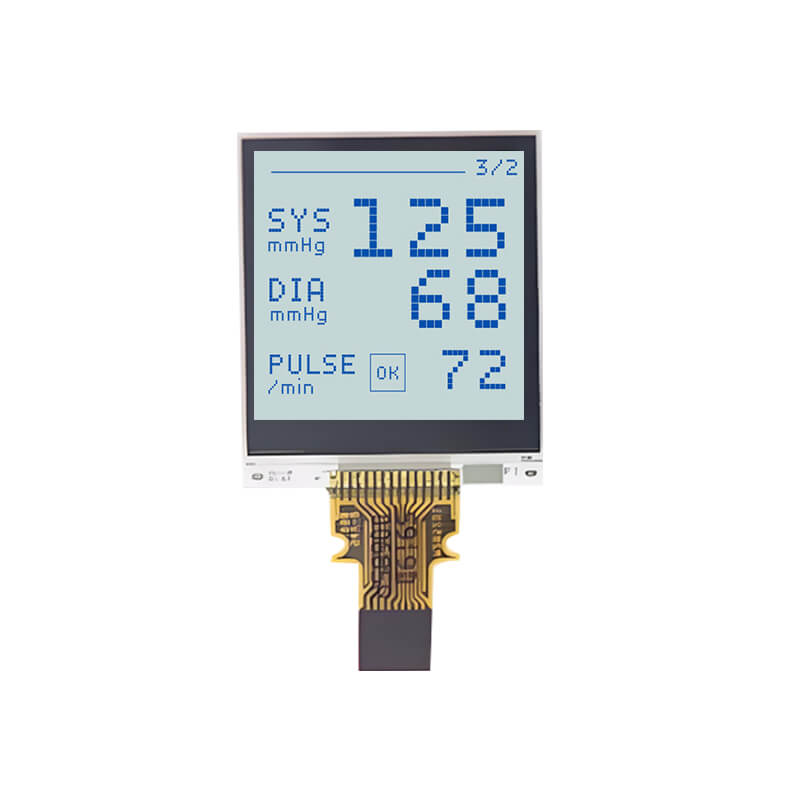

TN0103ANVNANN-GN00 1 Inch Reflective Display 128x128 3-wire SPI MIP Display For Wearable

TN0103ANVNANN-GN00 Overview
TN0103ANVNANN-GN00 is a 1.0 inch diagonal a-Si TFT-LCD display screen product, without backlight, without touch screen. TN0103ANVNANN-GN00 supports display 128×128 with aspect ratio of 1:1 (W:H), whose pixels are arranged in Rectangle. It features active area of 18.56(W)×18.56(H) mm, outline size of 21.96(W)×24.26(H)×1.71(D) mm, with surface treament of Glare (Haze 0%), net weight of 2.00g (Typ.). As a ECB, Normally Black, Reflective LCM product, TN0103ANVNANN-GN00 can provides , 35:1 (Typ.) reflective contrast ratio, 60/60/60/60 (Typ.)(CR≥2) (L/R/U/D) viewing angle , and response time of 6/7 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 1-bit gray scale signal for each dot, thus presenting a palette of Monochrome colors. This product have no backlight. TN0103ANVNANN-GN00 utilizes 3-wire SPI as it's signal inputting systerm, which connected by 10 pins FPC with power supply voltage of 3.3V (Typ.).

TN0103ANVNANN-GN00 Application
For Wearable & Industrial LCD.

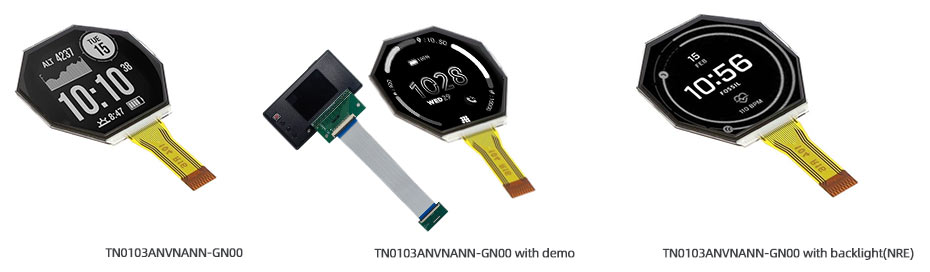

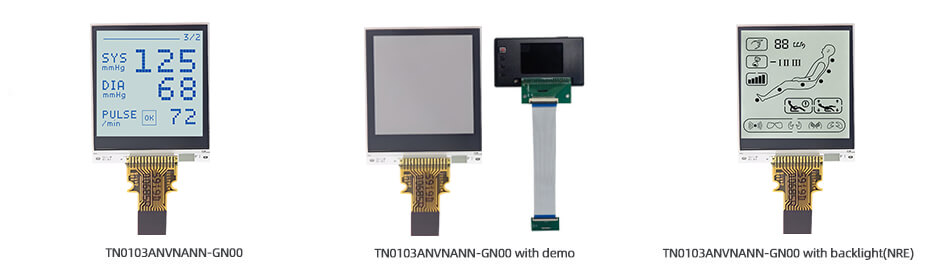

More TN0103ANVNANN-GN00 Options For Reference
TN0103ANVNANN-GN00

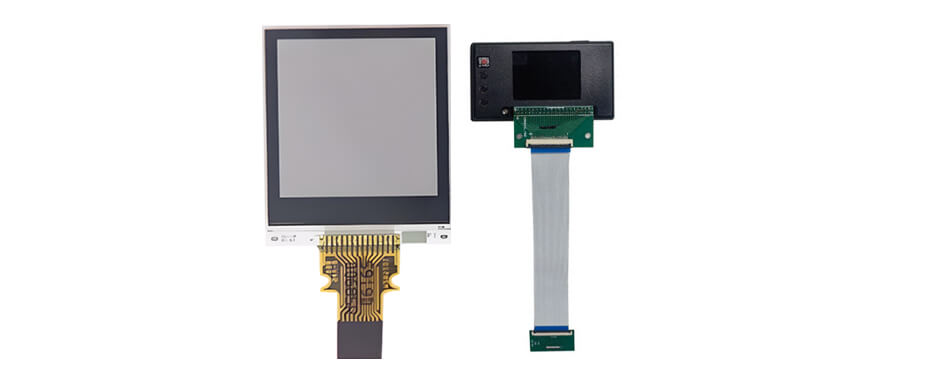

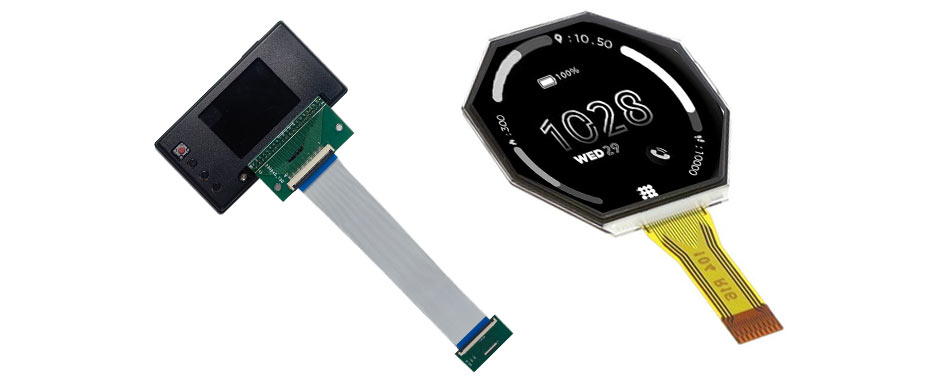

TN0103ANVNANN-GN00 with demo
TN0103ANVNANN-GN00 with backlight(NRE)

Reflective MIP Displays Technology

Reflective MIP Displays Application

To operate in low-light conditions, RLCDs need to be paired with an efficient front light solution such as the Youritech Front Light Panel.With improved optical coupling, collimation, and attenuation, our front light solution efficiently delivers more light exactly where you need it, and efficient LEDs can be used without experiencing typical issues with diffusion and material losses. Plus, as few as one low-power LED can be used in a front light instead of the five or more LEDs needed for alternative display light guides, making our solution the most efficient front light option available today.

It means your devices can stop relying on power-hungry backlights. By reinventing light guide and front light technology, we makes it possible to fully embrace the inherent power-saving features of RLCDs – from the brightest outdoor to the darkest indoor lighting environments.
