0.48"-5" LCD Display (0.95”)

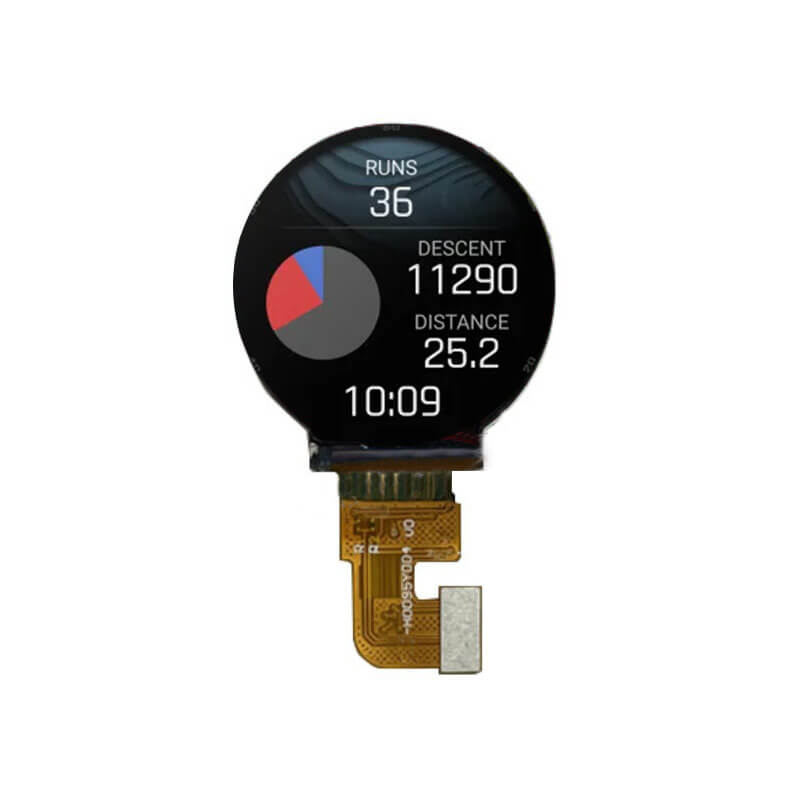

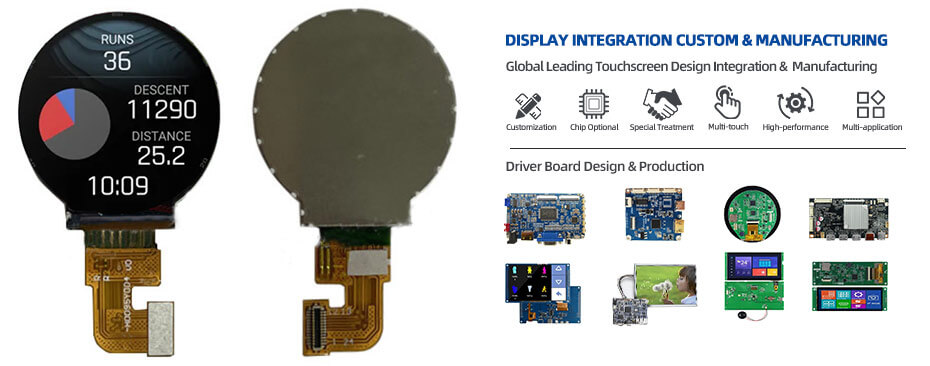

0.95 Inch Circular Display 128x128 SPI 1000nits High Brightness Round LCD Display For Wearable

Part No.:ET095CR01-H
Size:0.95″ inch
Resolution:128x128
Panel Interface:SPI
Display mode:Transmissive
Outline Dimension:25.24x27.14mm
Active Area:23.04x23.04mm
Viewing Angle L/R/U/D:85/85/85/85
Brightness（cd/m2）:1000(Typ.)
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:no

0.95 Inch Circular LCD Display Overview
0.95 Inch Circular Display 128x128 SPI 1000nits High Brightness Round LCD Display For Wearable.

Circular Display Application

Production and Manufacturing
