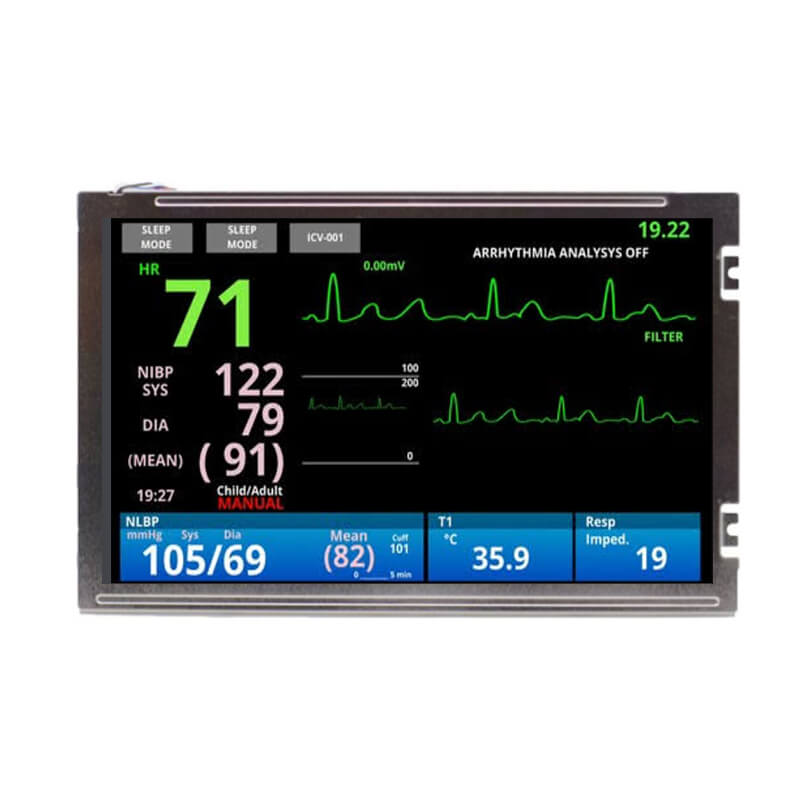

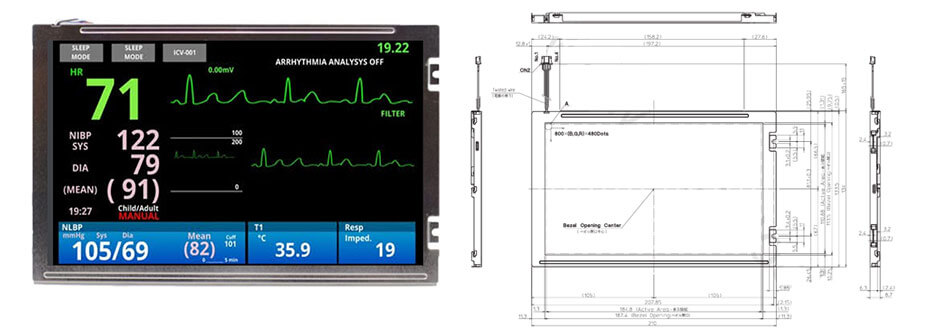

TCG085WVLQDPNN-GN00 is a 8.5 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen. TCG085WVLQDPNN-GN00 supports display 800(RGB)×480 (WVGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 184.8(W)×110.88(H) mm, outline size of 210(W)×134(H)×9.2(D) mm, viewing area size of 187.4(W)×113.5(H) mm, with surface treament of Glare (Haze 0%), net weight of 310g. As a AWV, Normally Black, Transmissive LCM product, TCG085WVLQDPNN-GN00 can provides 400 cd/m² display brightness 500:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 12/18 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 50% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 70K hours, external backlight driver is additionally needed. TCG085WVLQDPNN-GN00 utilizes CMOS (1 ch, 6-bit) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
High Image Quality
–Sharp, accurate images for medical diagnostics.
High Brightness
–Excellent visibility in various lighting conditions.
Wide Viewing Angle
–IPS technology ensures clear viewing from any angle.
24/7 Reliable Operation
–Stable performance for continuous medical use.
Wide Temperature Range
–Reliable in demanding healthcare environments.
PCAP Touch Support
–Smooth, accurate touch with glove compatibility.
Low Power Consumption
–Energy-efficient for portable medical devices.
Long-Term Supply
–Stable lifecycle for medical equipment projects.
Custom Design Support
–Brightness, touch, interface, and optical bonding customization.
OEM & ODM Service
–End-to-end display solutions for healthcare applications.
Medical Imaging Equipment
Ultrasound Systems; Patient Monitoring Systems; X-Ray Imaging Systems; Digital Radiography Systems; CT Scanners; MRI Systems; Endoscopy Systems; Medical Imaging Monitors; Portable Ultrasound Devices.
Patient Monitoring & Critical Care
Patient Monitors; Vital Signs Monitors; ECG / EKG Monitors; Blood Pressure Monitors; Pulse Oximeters; Capnography Monitors; Multi-Parameter Patient Monitors; Central Patient Monitoring Stations.
Diagnostic & Laboratory Equipment
Blood Analyzers; Hematology Analyzers; Biochemistry Analyzers; Immunoassay Analyzers; Urine Analyzers; Microscopy Systems; Laboratory Analyzers; Point-of-Care Testing Devices; Diagnostic Testing Equipment.
Surgical & Operating Room Equipment
Surgical Displays; Surgical Monitors; Endoscopic Systems; Laparoscopic Systems; Surgical Navigation Systems; Operating Room Displays; Anesthesia Machines; Electrosurgical Units; Surgical Robots.
Dental Equipment
Dental Treatment Units; Dental Imaging Systems; Dental X-Ray Systems; Intraoral Cameras; Dental CAD/CAM Systems; Dental Chairs; Dental Sterilization Equipment.
Emergency & Ambulance Equipment
Portable Patient Monitors; Defibrillators; Emergency Ventilators; Portable Ultrasound; Ambulance Monitoring Systems; Emergency Medical Devices; Portable Diagnostic Equipment.
Respiratory & Anesthesia Equipment
Ventilators; Respiratory Monitors; Anesthesia Machines; Oxygen Concentrators; CPAP / BiPAP Devices; Respiratory Therapy Equipment; Gas Monitoring Systems.
Infusion & Drug Delivery
Infusion Pumps; Syringe Pumps; Enteral Feeding Pumps; Drug Delivery Systems; IV Monitoring Systems.
Rehabilitation & Home Healthcare
Rehabilitation Equipment; Physiotherapy Equipment; Home Patient Monitoring; Home Healthcare Devices; Mobility Assistance Equipment; Smart Healthcare Devices; Remote Patient Monitoring Devices.
Ophthalmic Equipment
Ophthalmic Diagnostic Devices; Fundus Cameras; Optical Coherence Tomography (OCT) Systems; Slit Lamps; Autorefractors; Vision Screening Devices; Ophthalmic Surgical Systems.
Cardiology Equipment
ECG / EKG Devices; Holter Monitors; Cardiac Monitoring Systems; Ultrasound / Echocardiography Systems; Stress Test Systems; Defibrillators; Cardiac Diagnostic Equipment.
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
