(3.4")

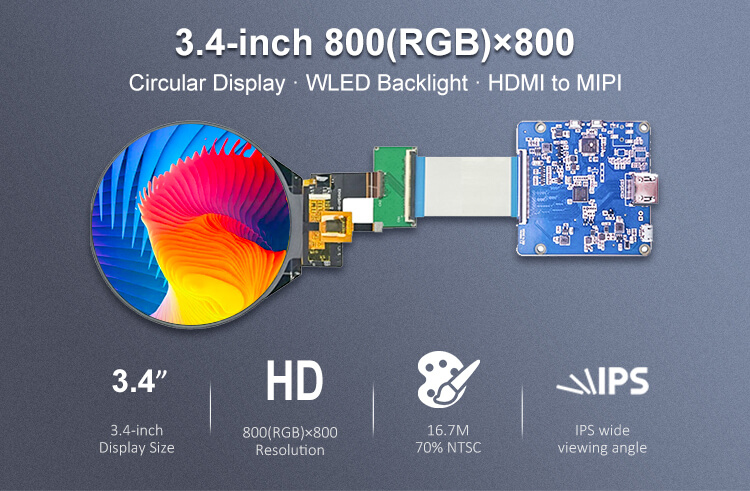

Original IPS 800x800 3.4 Inch Circular Capacitive Screen Round LCD Display Panel Mipi Round LCD Panel With Touch

Part No.:TM034XVZP01
Size:3.4″ inch
Resolution:800x800
Panel Interface:MIPI (3 data lanes)
Display mode:SFT,Normally Black
Outline Dimension:99(H)x96.6(V)
Active Area:87.6(H)x87.6(V)
Viewing Angle L/R/U/D:80/80/80/80
Brightness（cd/m2）:350(Typ.)
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:no

Products Description
