7.84 Inch High Brightness LCD Display Overview

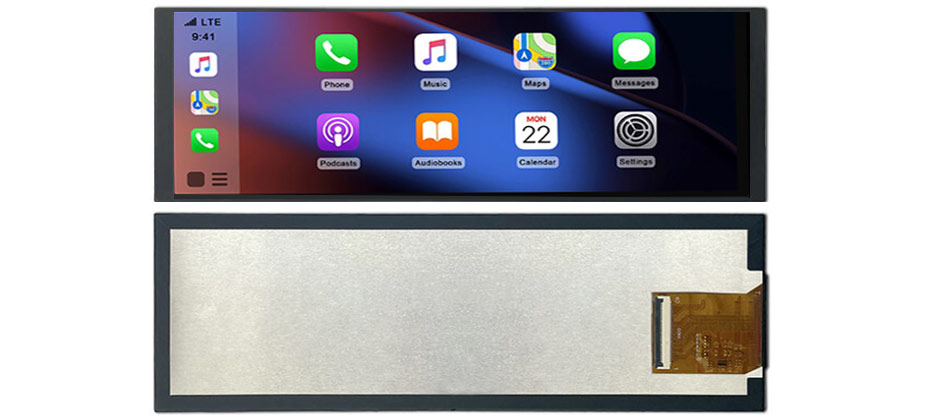

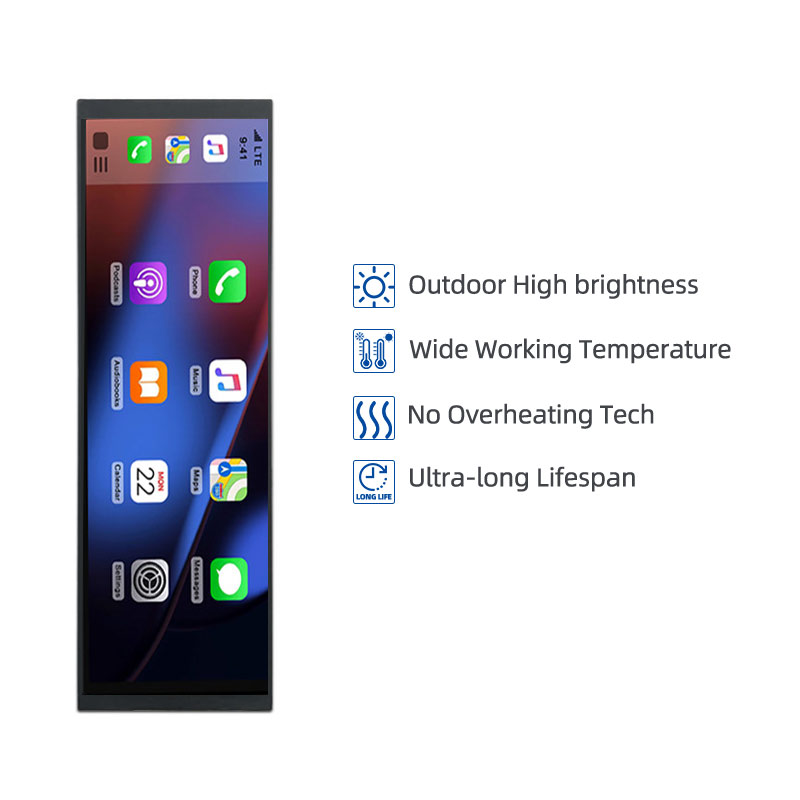

The ET078HD02-T is a 7.84-inch high-brightness IPS TFT LCD display featuring a 400×1280 resolution with an LVDS interface. It operates in transmissive mode, provides a typical brightness of 700 cd/m², and offers 80° viewing angles in all directions. The active area measures 59.4×190.08 mm, framed within an outline of 67.14×205.12 mm. The display supports operation from –20 °C to 70 °C and storage from –30 °C to 80 °C, and it does not include touch functionality.
More 7.84 Inch High Brightness Display For Reference
ET078HD01-T (400x1280, MIPI, 700nits, -20~70°C, 67.14x205.12mm)
ET078HD02-T (400x1280, LVDS, 700nits, -20~70°C, 67.14x205.12mm)
ET070HD03-T (400x1280, TTL, 700nits, -20~70°C, 67.8x205.78mm)
Outdoor High Brightness Displays Technology
YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options
Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
Production and Manufacturing
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
