0.48"-5" LCD Display (5")

5 Inch Wide Temperature LCD Display 1024×600 MIPI -30°C to 80°C High Brightness 1000nits TFT LCD Display

  • Part No.:ET050WS01-GL
  • Size:5″ inch
  • Resolution:1024x600
  • Panel Interface:MIPI
  • Display mode:Transmissive

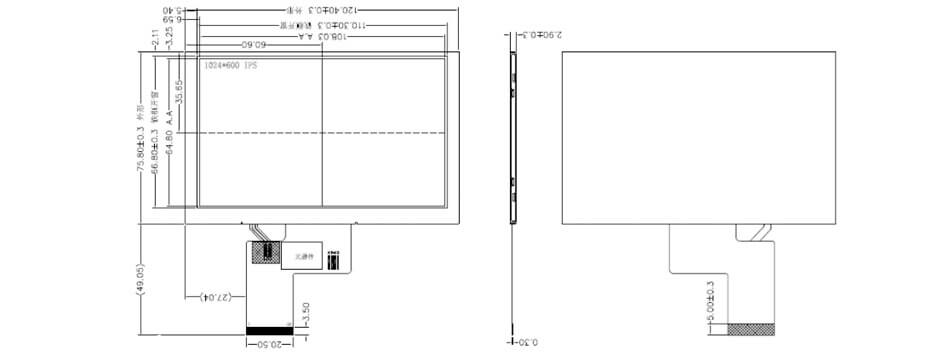

  • Outline Dimension:120.3x75.4mm
  • Active Area:108.03x64.8mm
  • Viewing Angle L/R/U/D:85/85/85/85
  • Brightness(cd/m2):1000nits
  • Operation / Storage Temp:-30~80°C / -30~80°C
  • Touch:no


5 Inch Wide Temperature LCD Display Overview
5 Inch Wide Temperature LCD Display 1024×600 MIPI -30°C to 80°C High Brightness 1000nits TFT LCD Display.


More 5 Inch Wide Temperature Displays For Reference
ET050FW01-ZK (LCD
, 480×854, TTL, IPS, 400nits, -30~70°C, 66.4×120.05mm)
ET050HD04-T (LCD, 720×1280, MIPI, IPS, 400nits, -30~85°C, 65.4×119.3mm)
ET050HD01-HG (OLED, 720×1280, MIPI, IPS, 450nits, -40~65°C, 68.88×125.18mm, CTP)
ET050WS01-A (LCD, 1024×600, LVDS, IPS, 500nits, -30~80°C, 120.7×75.8mm)
ET050WS01-GL (LCD, 1024×600, MIPI, IPS, 1000nits, -30~80°C, 120.3×75.4mm)
ET050WV01-GT (LCD, 800×480, TTL, IPS, 550nits, -30~85°C, 120.7×75.8mm, CTP)
ET050WV06-T (LCD, 800×480, TTL, IPS, 1500nits, -30~85°C, 120.7×75.8mm)
ET050WV01-BH (LCD, 480×272, TTL, IPS, 350nits, -30~85°C, 120.7×75.8mm)


Wide Temperature Displays Technology


YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options


Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.


Youritech Production and Manufacturing

No specification brief is filled in!
X
youritech

At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
