10.2"-17.3" LCD Display (14.1")

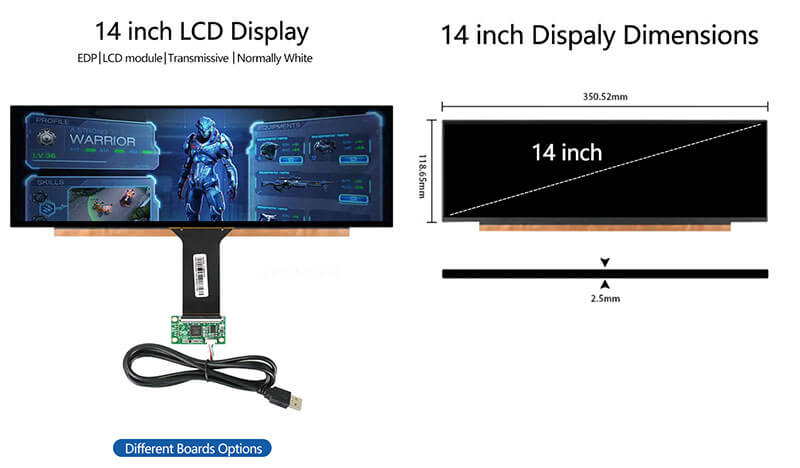

NV140DQM 14 inch Stretched Bar LCD 1920x550 Strip Screen Touch LCD With Driver Board

  • Part No.:NV140DQM
  • Size:14.1″ inch
  • Resolution:1920x550
  • Panel Interface:eDP (2 Lanes)
  • Display mode:Transmissive
  • Outline Dimension:350.52(W)x118.65(H)mm
  • Active Area:344.218(W)x98.604(H)mm
  • Viewing Angle L/R/U/D:85/85/85/85 (Typ.)
  • Brightness(cd/m2):400cd/m²(Typ.)
  • Operation / Storage Temp:0~60°C / -20~65°C
  • Touch:no

NV140DQM is a 14.1 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, With LED Driver, without touch screen.NV140DQM supports display 1920(RGB)×550 with aspect ratio of >3:1 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 344.218(W)×98.604(H) mm, outline size of 350.52(W)×118.65(H)×2.5(D) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 170g (Max.), shape stype of Slim (PCBA Flat, T≤3.2mm). As a ADS, Normally Black, Transmissive LCM product, NV140DQM can provides 400 cd/m² display brightness 1200:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms.

Screen Size:14.1 inch
14 Inch 1920×550 Bar LCD Panel With Touch Drive Board.

-With LED Drive

-Reverse I/F
-WLED Backlight

For Digital Photo Frame or Industrial LCD.

More SKU To Choose
-LCD With White Touch Screen
-LCD With Driver Board
-LCD+2B Touch+Driver Board
-LCD+3B Touch+Driver Board

No specification brief is filled in!

At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
