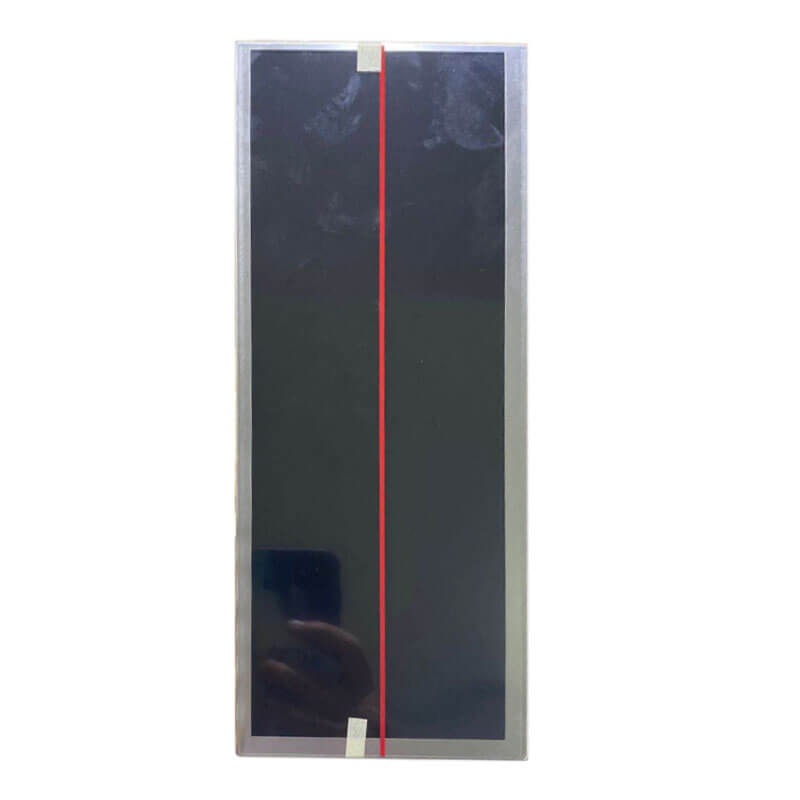

AV123Z7M-N11 12.3 Inch High Brightness Bar Display 1920x720 LCD Screen With H-DMI Board For Automotive Display

  • Part No.:AV123Z7M-N11
  • Size:12.3″ inch
  • Resolution:1920x720
  • Panel Interface:LVDS (2 ch,8-bit)
  • Display mode:Transmissive
  • Outline Dimension:307.9x130.27mm
  • Active Area:292.032x109.512mm
  • Viewing Angle L/R/U/D:80/80/80/80 (Typ.)
  • Brightness(cd/m2):800cd/m²(Typ.)
  • Operation / Storage Temp:-30~85°C / -40~90°C
  • Touch:no

AV123Z7M-N11 supports display 1920(RGB)×720 with aspect ratio of 8:3 (W:H), whose pixels are arranged in RGB Vertical Stripe.It features active area of 292.032(W)×109.512(H) mm, outline size of 307.9(W)×130.27(H) mm, viewing area size of 295.03(W)×112.51(H) mm, net weight of 520±50g. As a ADS, Normally Black, Transmissive LCM product, AV123Z7M-N11 can provides 800 cd/m² display brightness 1000:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms.

Screen Size:12.3 inch
AV123Z7M-N11 12.3 inch 1920x720 Outdoor High Brightness Bar LCD With H-DMI Board

-Ultra High Brightness
-Wide Temperature
-WLED Backing
-Life:50K hours
-Full Viewing Angle
-Support Color: 16.7M (8-bit)

For Outdoor High Brightness & Automotive Display& Industrial LCD.

What's included in the package ?
-controller board
-12.3inch LCD
-12.3inch LCD + driver board
-12.3inch LCD + driver board + touch screen
-12.3inch LCD + USB driver board
-12.3inch LCD + AV driver board

No specification brief is filled in!

At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
