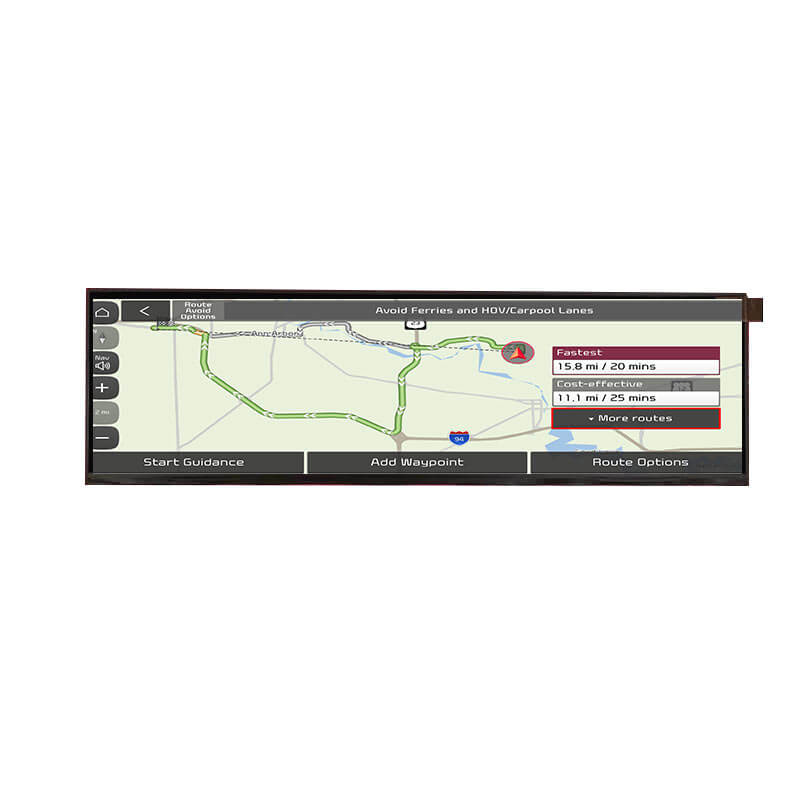

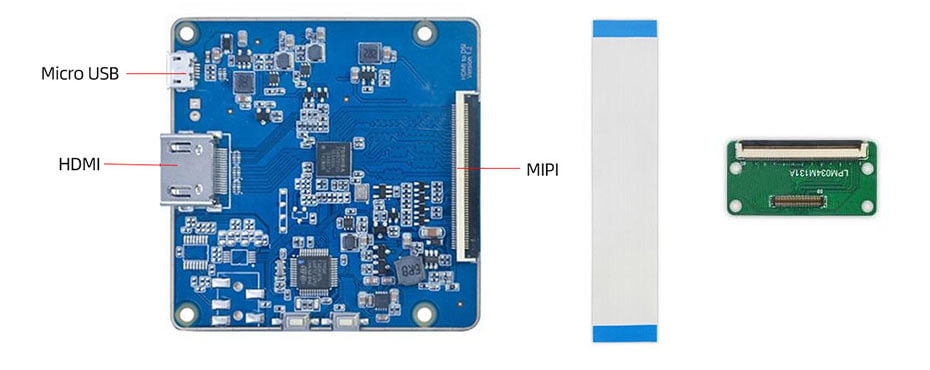

NV126B5M-N41 BOE 12.6 Inch TFT LCD Display 1920x515 eDP Bar Display With Driver Board

12.6 Inch LCD Display Overview

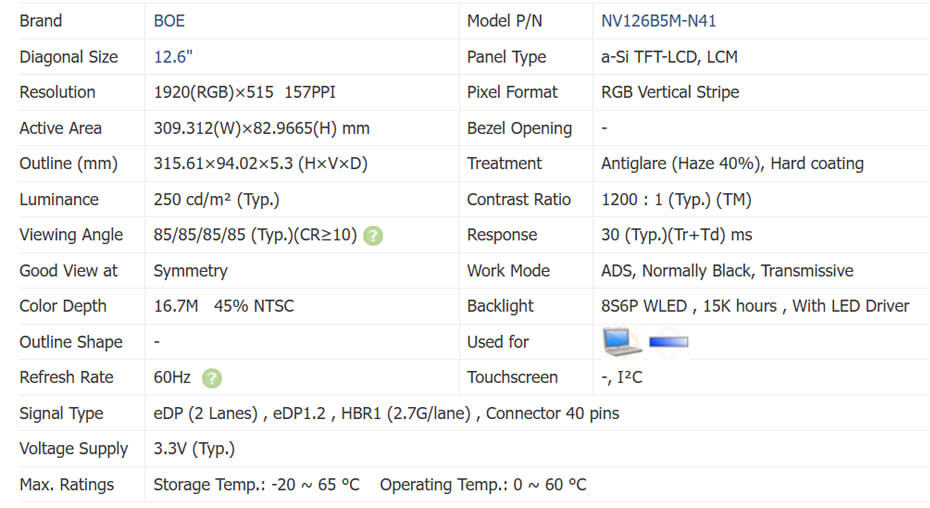

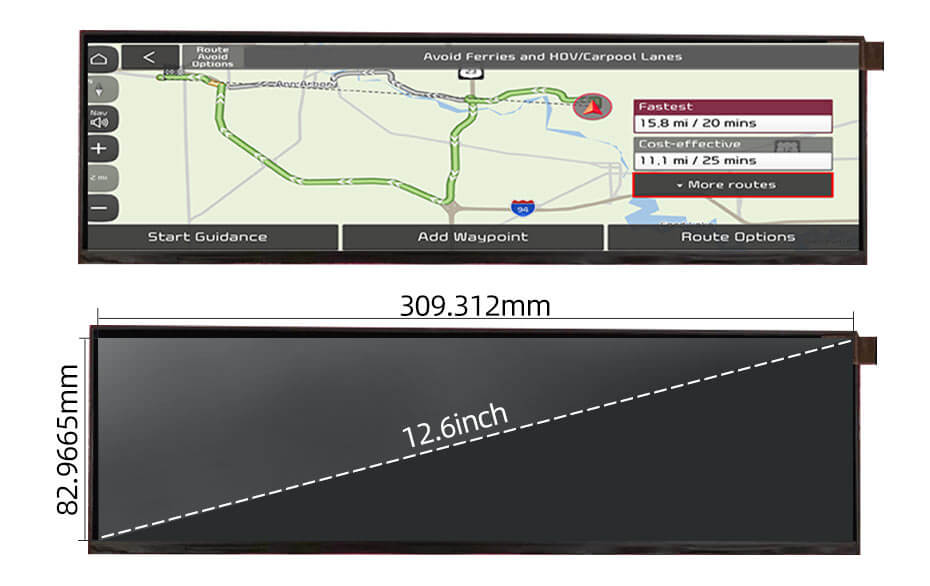

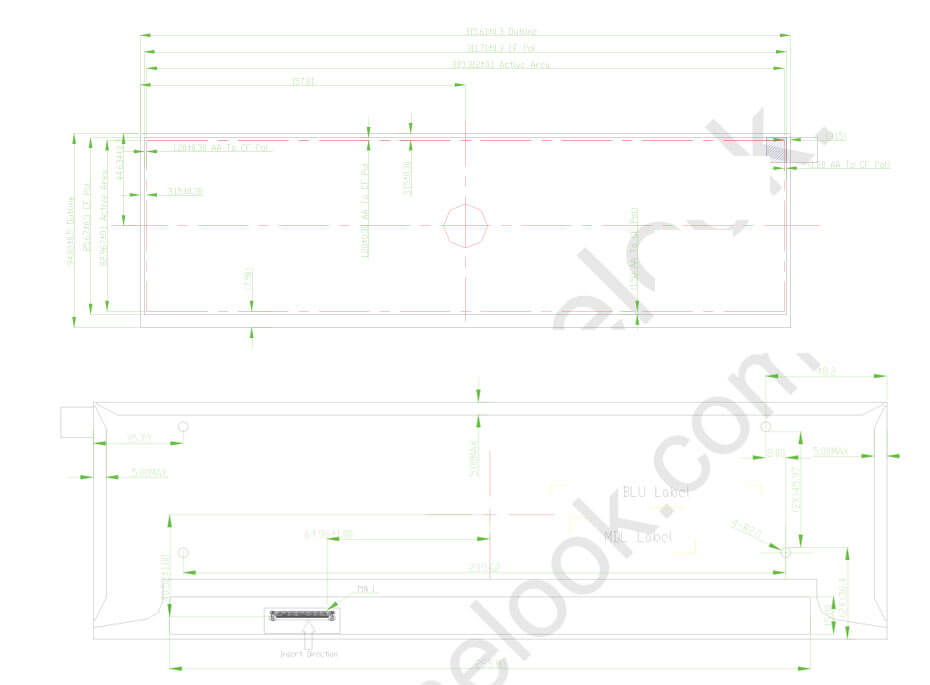

NV126B5M-N41 supports display 1920(RGB)×515 with aspect ratio of >3:1 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 309.312(W)×82.9665(H) mm, outline size of 315.61(W)×94.02(H)×5.3(D) mm, with surface treament of Antiglare (Haze 40%), Hard coating, net weight of 175g (Max.). As a ADS, Normally Black, Transmissive LCM product, NV126B5M-N41 can provides 250 cd/m² display brightness 1200:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 45% (NTSC). This product adopted 8S6P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. NV126B5M-N41 utilizes eDP (2 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
