10.2"-17.3" LCD Display (15")

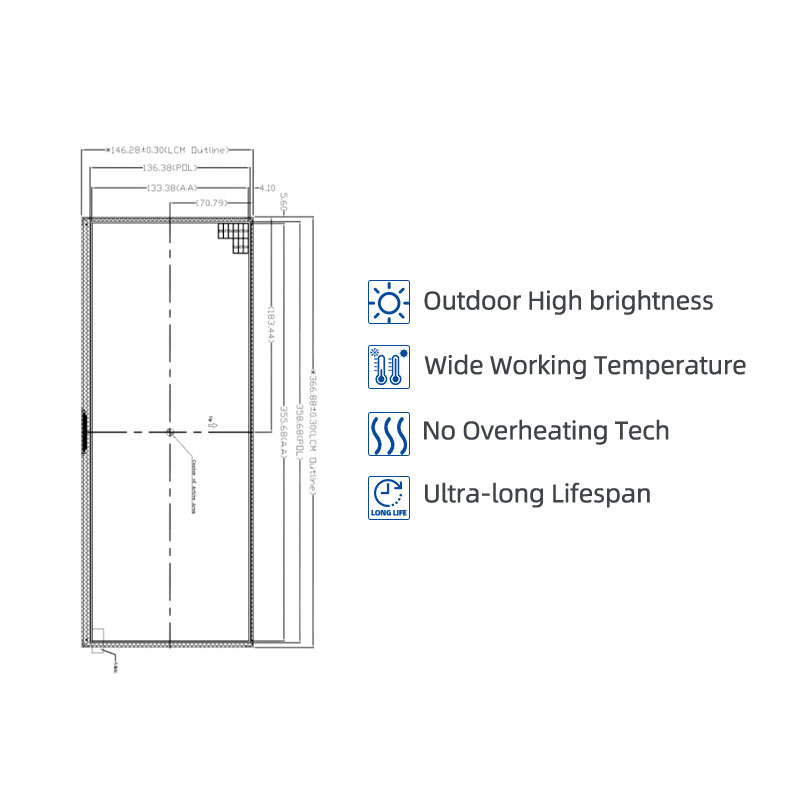

15 Inch High Brightness Display 1200nits 1920x720 LVDS Wide Temperature TFT LCD Display

  • Part No.:ET150BA01-GL
  • Size:15″ inch
  • Resolution:1920x720
  • Panel Interface:LVDS
  • Display mode:Transmissive

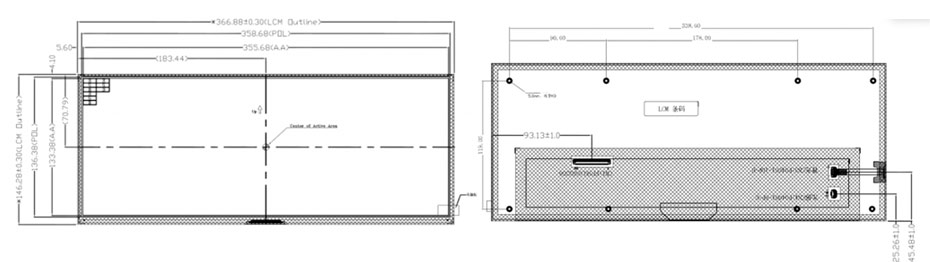

  • Outline Dimension:366.88x146.28mm
  • Active Area:355.68x133.38mm
  • Viewing Angle L/R/U/D:85/85/85/85
  • Brightness(cd/m2):1200(Typ.)
  • Operation / Storage Temp:-30~85°C / -40~90°C
  • Touch:no

15 Inch High Brightness LCD Display Overview
15 Inch High Brightness Display 1200nits 1920x720 LVDS Wide Temperature TFT LCD Display.

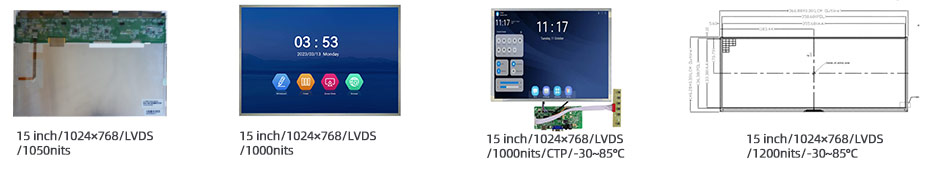

More 15 Inch High Brightness Display For Reference
ET150WU01-LP (1600x1200, LVDS, 1050nits, -30~70°C, 318.7x242.65mm)
ET150WX01-R (1024x768, LVDS, 1000nits, -20~70°C, 37.4x231.3mm)
ET150WX01-ZKT (1024x768, LVDS, 1000nits, -30~85°C, 326.5x253.5mm, CTP)
ET150BA01-GL (1920x720, LVDS, 1200nits, -30~85°C, 366.88x146.28mm)
