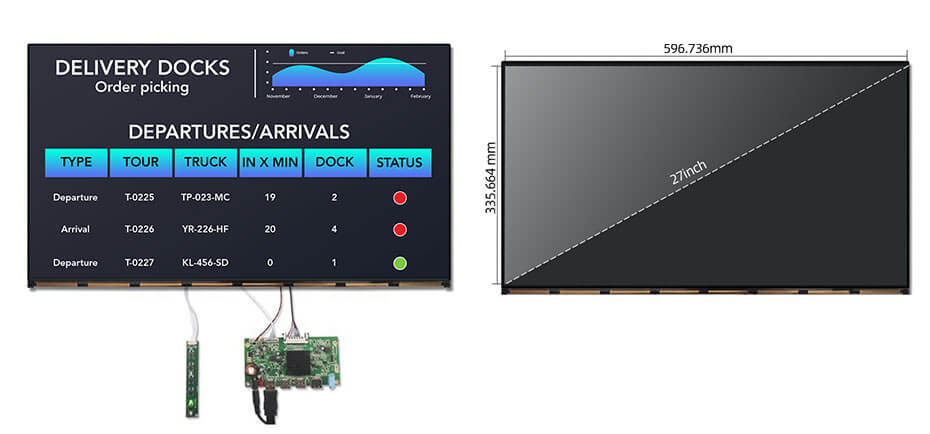

MV270QUM-N20 BOE 27 Inch TFT LCD Display 3840x2160 eDP LCD Panel With Driver Board

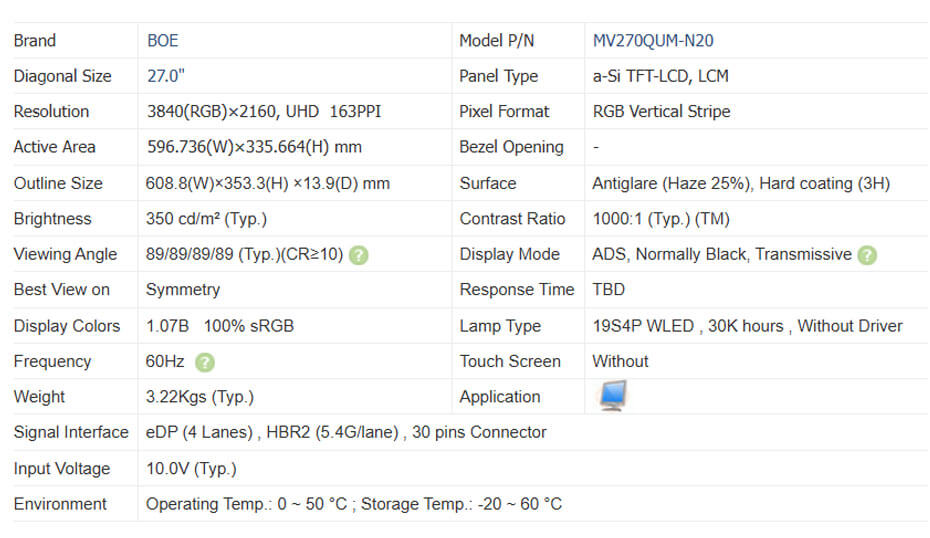

27 Inch LCD Display Overview
MV270QUM-N20 is a 27.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen.MV270QUM-N20 supports display 3840(RGB)×2160 (UHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 596.736(W)×335.664(H) mm, outline size of 608.8(W)×353.3(H)×13.9(D) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 3.22Kgs (Typ.). As a ADS, Normally Black, Transmissive LCM product, MV270QUM-N20 can provides 350 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of TBD ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 100% (sRGB). This product adopted 19S4P WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 30K hours, external backlight driver is additionally needed. MV270QUM-N20 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 10.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

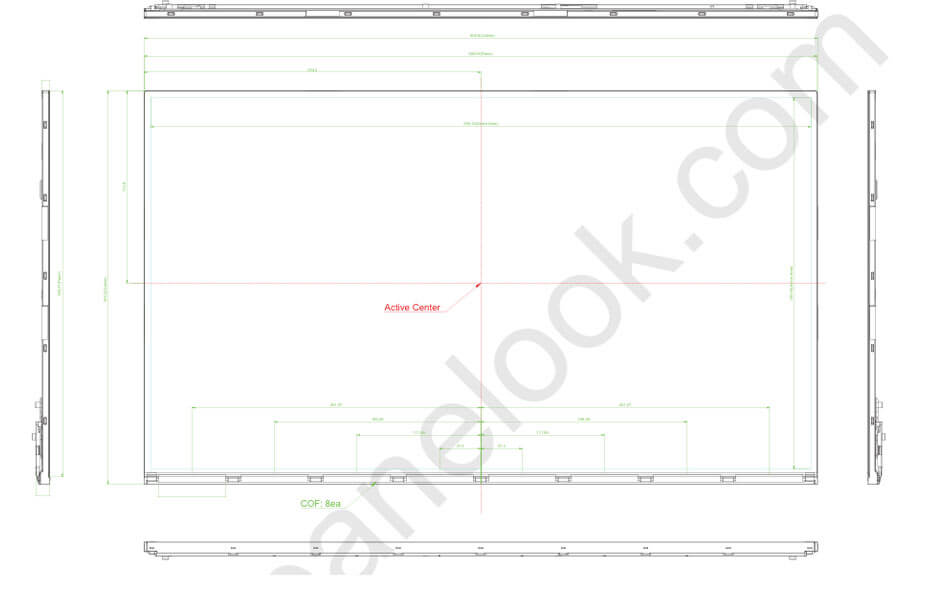

27 Inch LCD Display Drawing
