LCD above 17.3" (28")

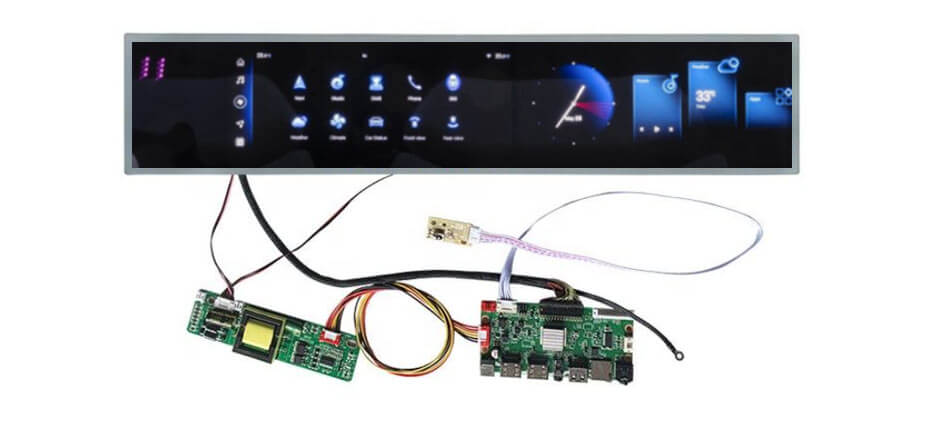

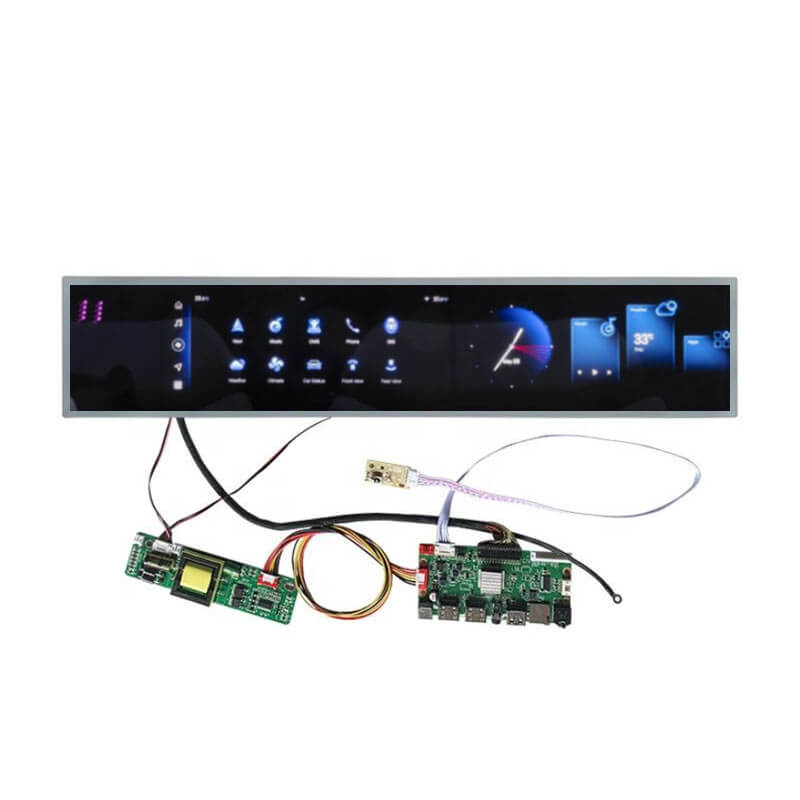

DV280FBM-NB1 BOE 28 Inch TFT LCD Display 1920x360 LVDS High Brightness 700nits Stretched Bar Display With Driver Board.

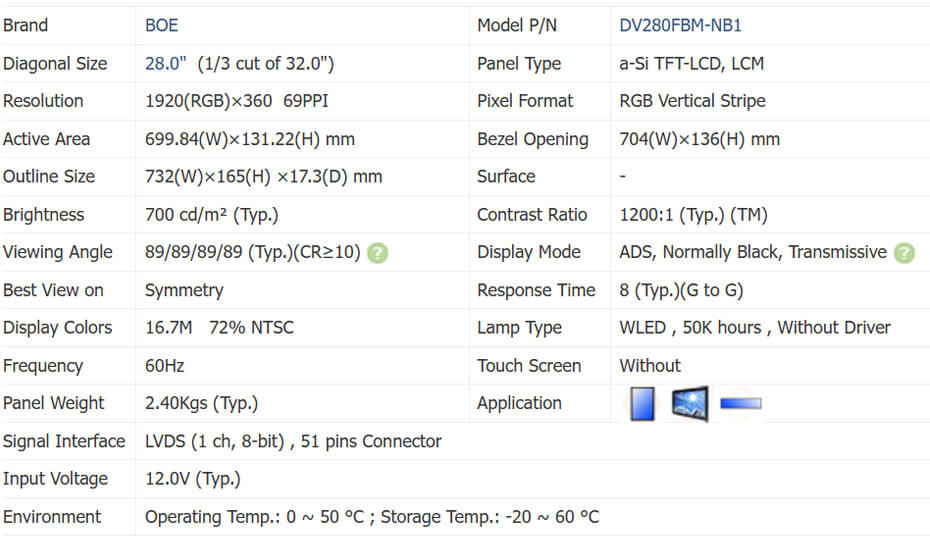

Part No.:DV280FBM-NB1
Size:28″ inch
Resolution:1920x360
Panel Interface:LVDS (1 ch,8-bit)
Display mode:ADS,ransmissive
Outline Dimension:732x165x17.3mm
Active Area:699.84x131.22mm
Viewing Angle L/R/U/D:89/89/89/89 (Typ.)
Brightness（cd/m2）:700cd/m²(Typ.)
Operation / Storage Temp:0~50°C / -20~60°C
Touch:no

28 Inch LCD Display Overview
DV280FBM-NB1 is a 28.0" diagonal a-Si TFT-LCD display panel with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.0G (9.8 m/s²). It's general features are summarized in the following: Hight Brightness, WLED Backlight, Life ≥ 50K hours, Bar Display , 1/3 cut of 31.5". Based on its features, Panelook recommend that this model be applied to Digital Signage, Outdoor High Brightness, Stretched Bar LCD etc.
