24 Inch Stretched Bar Display Overview

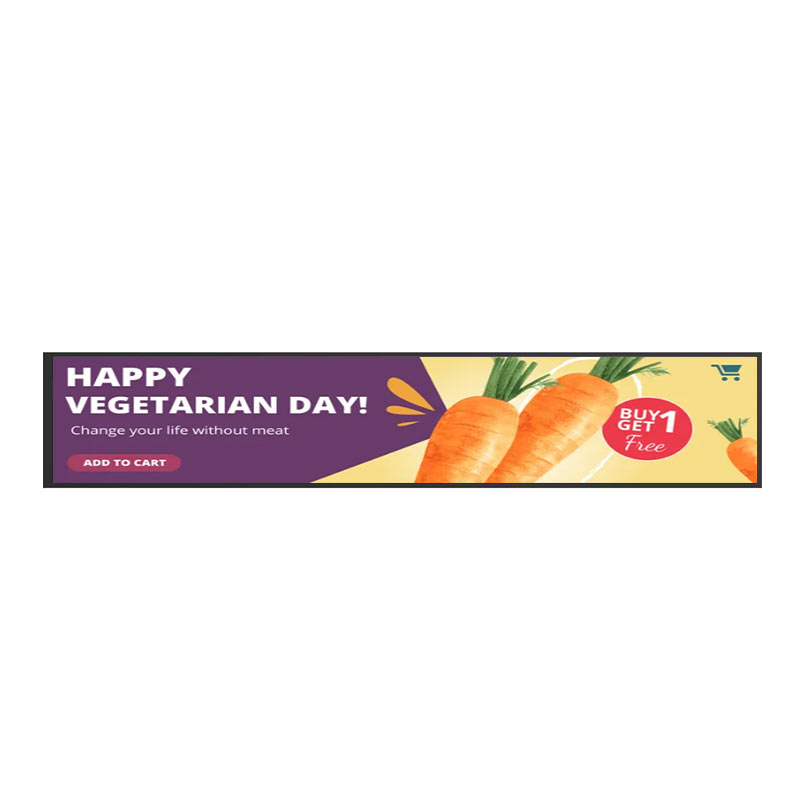

ET240BA01-YU is a 24-inch diagonal stretched bar TFT-LCD display featuring a transmissive IPS panel with high-brightness performance. It supports a 3840 × 720 resolution, delivering sharp and detailed visuals across its wide format. The display has an active area of 596.7 (W) × 111.9 (H) mm and an outline dimension of 620 (W) × 132 (H) mm, suitable for digital signage, control panels, and information bars. ET240BA01-YU uses an eDP interface and provides a typical brightness of 500 cd/m². With wide viewing angles of 89° in all directions (L/R/U/D), it ensures consistent color and contrast. The display operates in temperatures from 0 to 50 °C and can be stored between –20 to 60 °C, and it supports touch functionality for interactive applications.
More 24 Inch Bar Displays For Reference
ET240BA01-FS (1920x360, LVDS, IPS, 1000nits, 0~50°C, 612.7x132.1mm)
ET240BA01-YU(3840x720, LVDS, IPS, 500nits, 0~50°C, 620x132mm)
YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options
Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
Production and Manufacturing
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
