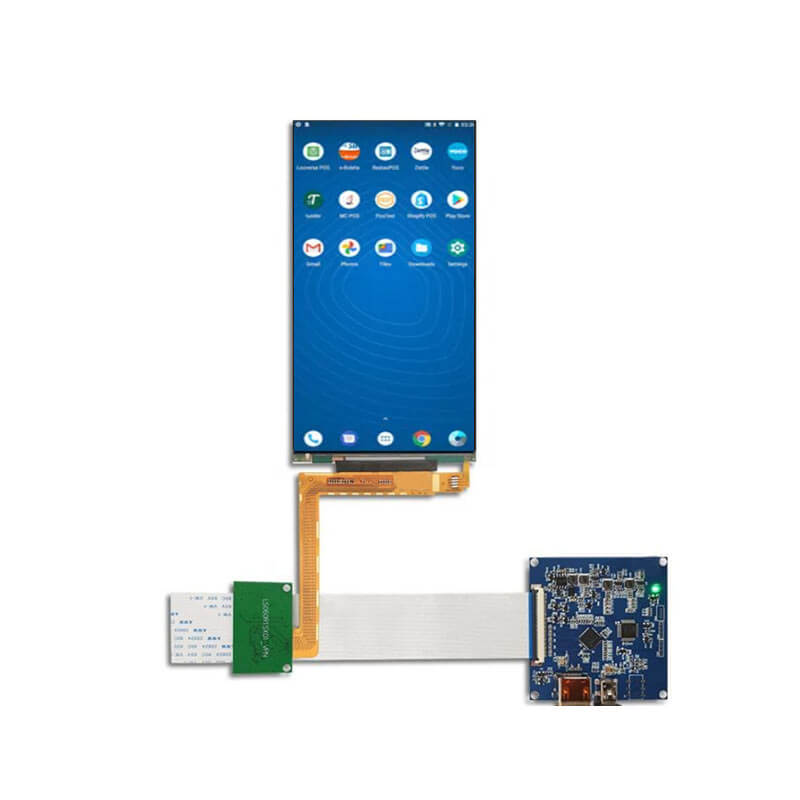

LS060R1SX02 Sharp 6 Inch LCD Display 1440x2560 MIPI LCD Module With Driver Board

6 Inch LCD Display Overview

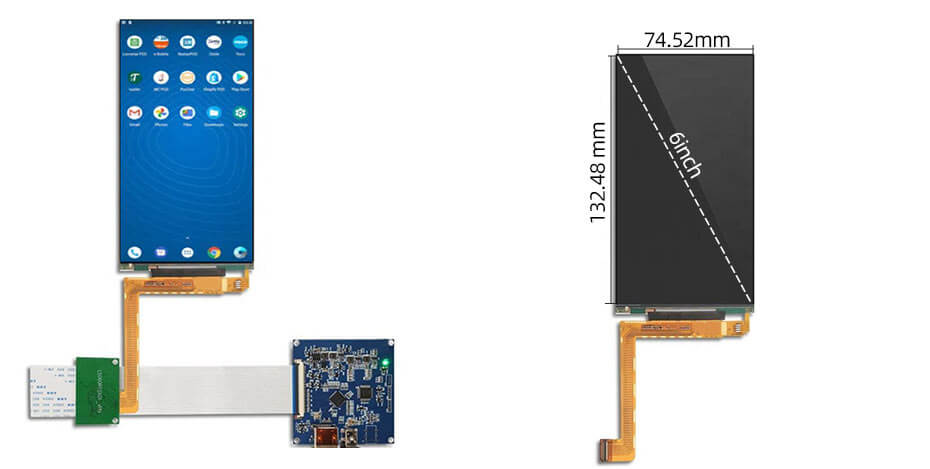

LS060R1SX02 supports display 1440(RGB)×2560 (Quad-HD) with aspect ratio of 9:16 (W:H), whose pixels are arranged in RGB Vertical Stripe, it's pixel density is 490 PPI. As for mechanical detail, it features active area of 74.52(W)×132.48(H) mm, outline size of 76.92(W)×140.13(H)×1.35(D) mm, net weight of 21.5g (Typ.). As a New Mode2, Normally Black, Transmissive LCM product, LS060R1SX02 can provides 450 cd/m² display brightness 1300:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 35 (Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 70% (NTSC). This product adopted 8S2P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed. LS060R1SX02 utilizes MIPI (2 ch, 4 data lanes) as it's signal inputting systerm, which connected by 50 pins Connector with power supply voltage of 1.8/5.75/-5.75V (Typ.(IOVCC/VSP/VSN).
