LS059T1SX01 Sharp 5.9 Inch TFT LCD Display 1080x1920 MIPI LCD Module With Driver Board

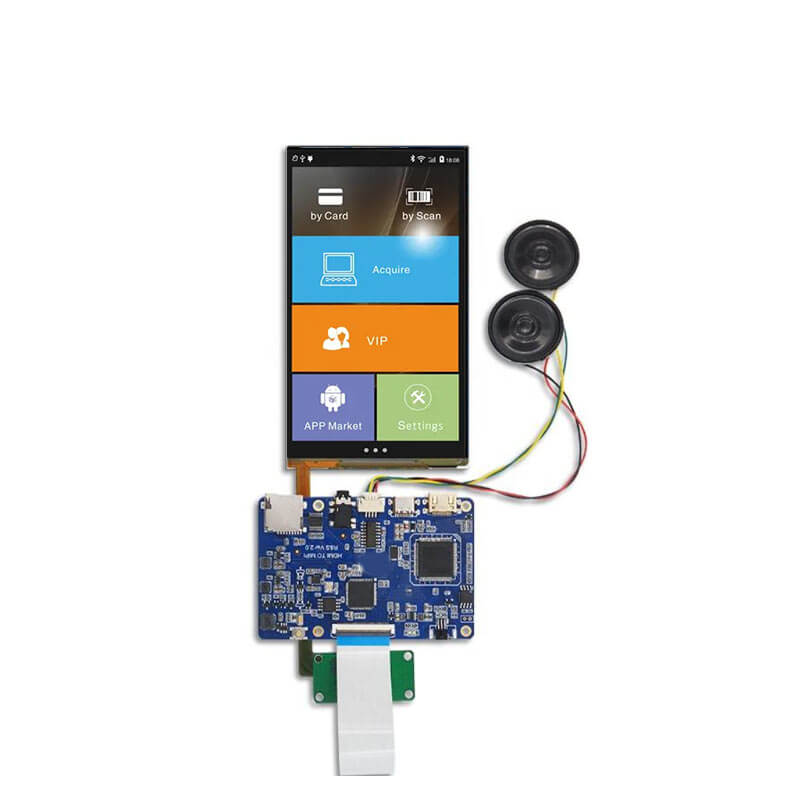

5.9 Inch LCD Display Overview

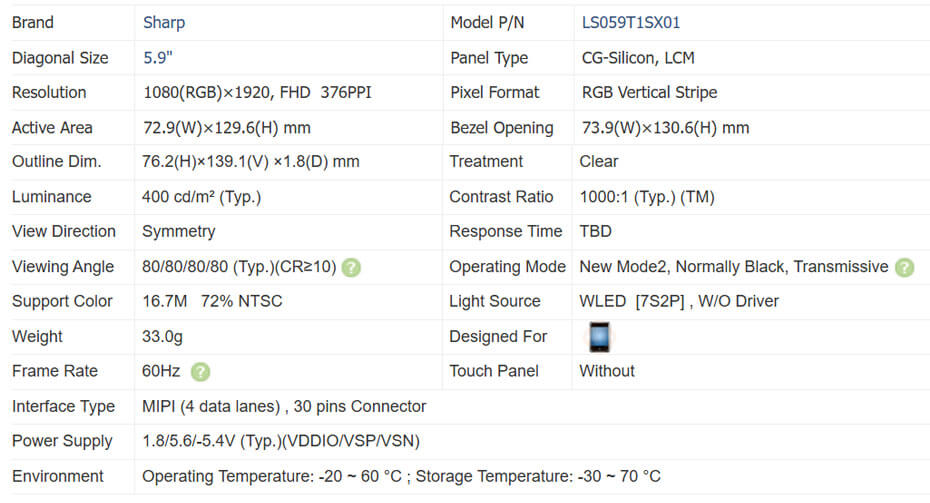

LS059T1SX01 is a 5.9 inch diagonal CG-Silicon display screen with a built-in WLED backlight, without backlight driver, without touch screen. LS059T1SX01 supports display 1080(RGB)×1920 (FHD) with aspect ratio of 9:16 (W:H), whose pixels are arranged in RGB Vertical Stripe, according to calculation of Panelook it's pixel density is 376 PPI. As for mechanical detail, it features active area of 72.9(W)×129.6(H) mm, outline size of 76.2(W)×139.1(H)×1.8(D) mm, viewing area size of 73.9(W)×130.6(H) mm, with surface treament of Clear, net weight of 33.0g. As a New Mode2, Normally Black, Transmissive LCM product, LS059T1SX01 can provides 400 cd/m² display brightness 1000:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of TBD ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted 7S2P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed. LS059T1SX01 utilizes MIPI (4 data lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 1.8/5.6/-5.4V (Typ.)(VDDIO/VSP/VSN). It's typical vertical frame rate (Fv) is 60Hz.

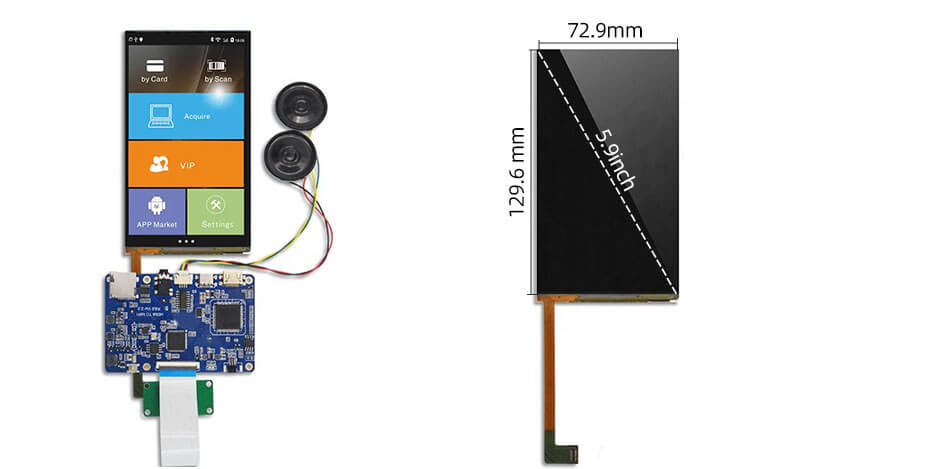

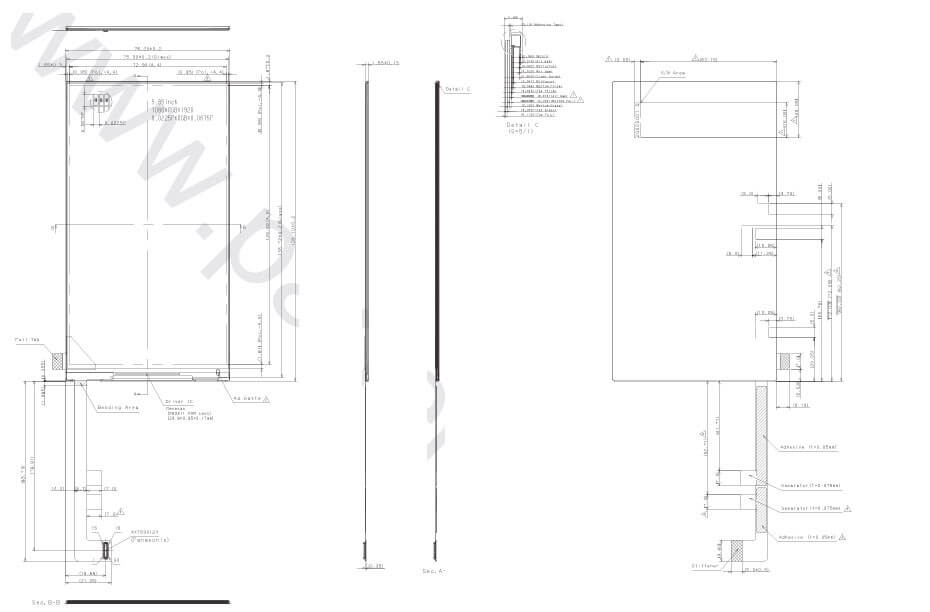

5.9 Inch LCD Display Drawing
