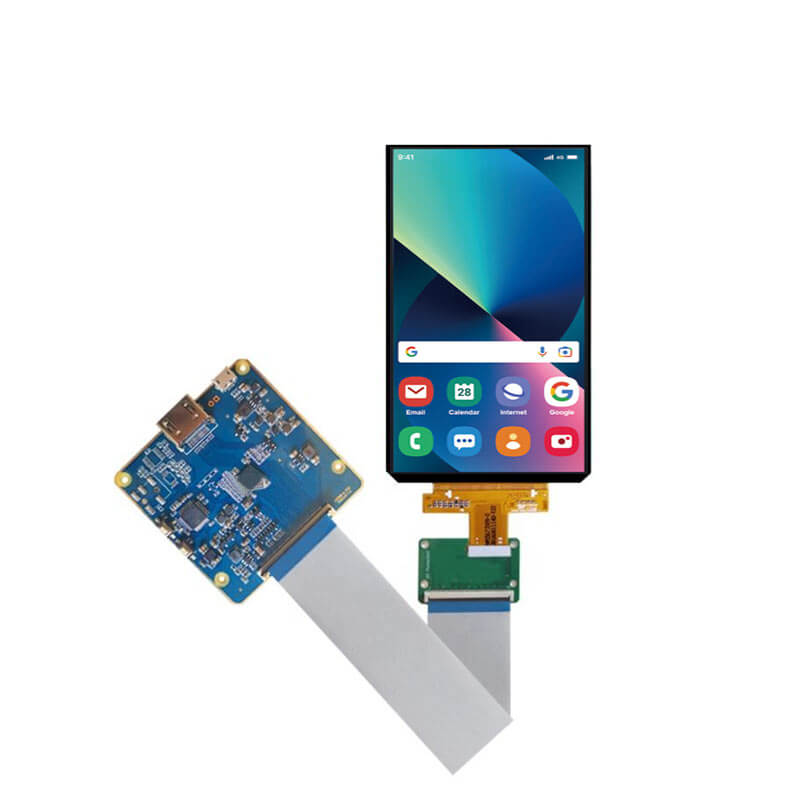

LPP057A386A JDI 5.7 Inch TFT LCD Display 1440x2560 MIPI Touch LCD Module With Driver Board

5.7 Inch LCD Display Overview

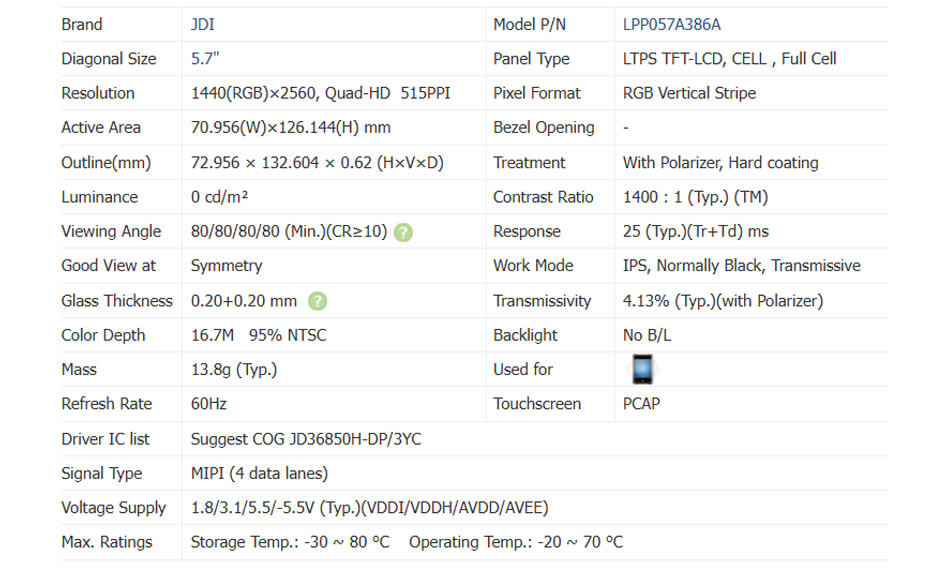

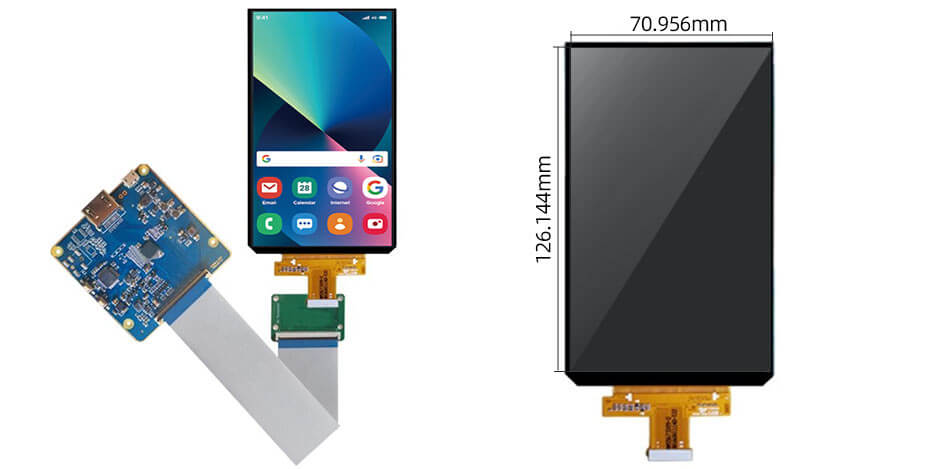

LPP057A386A is a 5.7 inch diagonal LTPS TFT-LCD display screen product from JDI, without backlight, touchscreen PCAP. LPP057A386A supports display 1440(RGB)×2560 (Quad-HD) with aspect ratio of 9:16 (W:H), whose pixels are arranged in RGB Vertical Stripe, it's pixel density is 515 PPI. As for mechanical detail, it features active area of 70.956(W)×126.144(H) mm, outline size of 72.956(W)×132.604(H)×0.62(D) mm, with surface treament of With Polarizer, Hard coating, net weight of 13.8g (Typ.), utilizing 0.20+0.20 mm mm plate. As a IPS, Normally Black, Transmissive CELL product, LPP057A386A can provides 1400:1 transimissive contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 95% (NTSC). This product have no backlight. LPP057A386A utilizes MIPI (4 data lanes) as it's signal inputting systerm with power supply voltage of 1.8/3.1/5.5/-5.5V (Typ.)(VDDI/VDDH/AVDD/AVEE). It's typical vertical frame rate (Fv) is 60Hz.
