LS029B3SX06 Sharp 2.9 Inch 2160x2160 LCD Display MIPI 51 Pin FPC LCD Panel With HDMI Board For HMD AR VR

  • Part No.:LS029B3SX06
  • Size:2.9″ inch
  • Resolution:2160x2160
  • Panel Interface:MIPI (2 ch,4 data lanes)
  • Display mode:Transmissive
  • Outline Dimension:54.24x59.32mm
  • Active Area:51.84x51.84mm
  • Viewing Angle L/R/U/D:/
  • Brightness(cd/m2):100cd/m²(Typ.)
  • Operation / Storage Temp:-10~60°C / -20~70°C
  • Touch:no

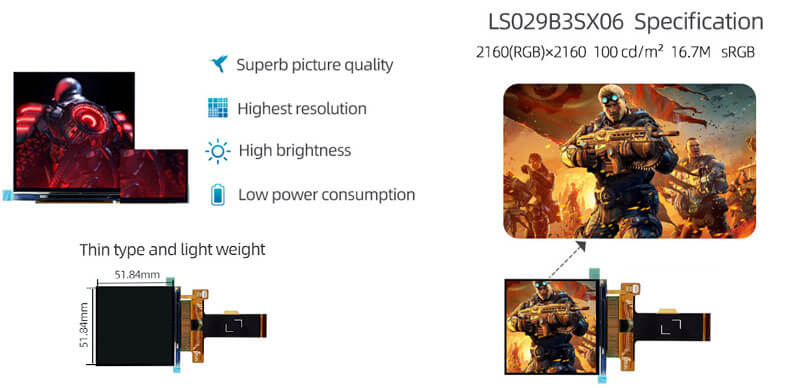

LS029B3SX06 Overview
LS029B3SX06 is a 2.9 inch diagonal CG-Silicon display panel product, with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -10 ~ 60°C , a storage temperature range of -20 ~ 70°C . It's general features are summarized in the following: sRGB, WLED Backlight . Based on its features, we recommend that this model be applied to HMD VR AR etc.

Screen Size:2.9 inch
Brand: Sharp
2.9 Inch 2160x2160 LCD Display With HDMI Board

LS029B3SX06 Feature
-LCD panel with hdmi board
-High contrast
-Wide temperature range
-Low power consumption
-High resolution


LS029B3SX06 Application
Head-mounted Displays, Viewfinders, Small Display,AR VR etc.

As one of the Pioneers within microdisplays products, Youritech have pushed energy efficiency to the edge, delivering high-performance Near-Eye Displays (NED) for a wide range of products, that include video glasses, head-mounted sports devices, camera viewfinders, medical applications, and many other professional devices worldwide.


At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
