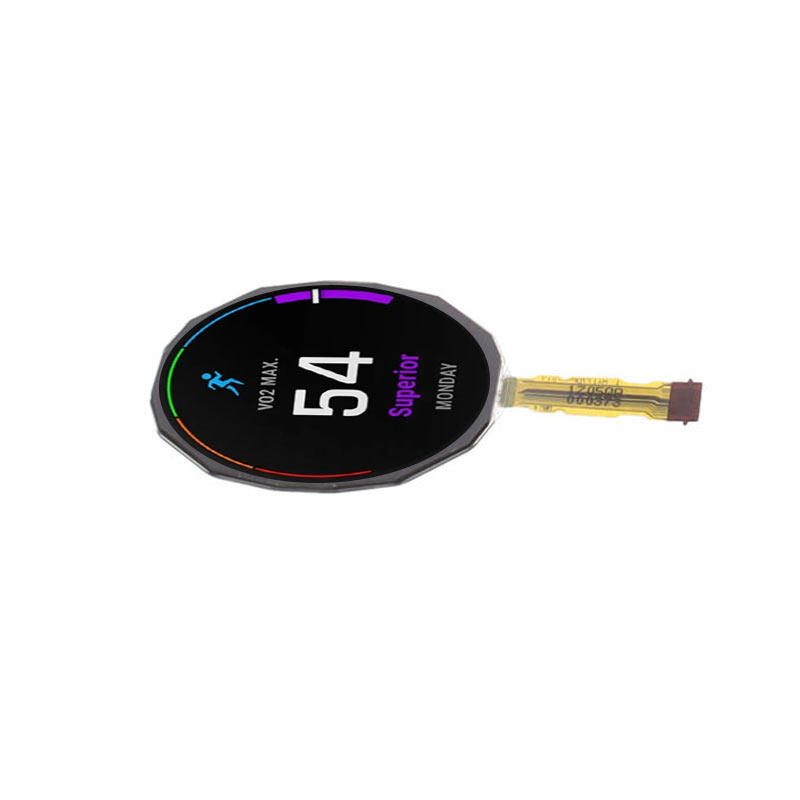

LS014B7DD01 Sharp 1.39 Inch Circular Display 280x280 Reflective Sunlight Readable LCD Display For Wearable

LS014B7DD01 Overview
LS014B7DD01 is a 1.39 inch diagonal CG-Silicon display screen product, without backlight, without touch screen.LS014B7DD01 supports display 280(RGB)×280 with aspect ratio of 1:1 (W:H), whose pixels are arranged in RGB Vertical Stripe.It features active area of 35.28(W)×35.28(H) mm, outline size of 38.08(W)×38.78(H) mm, with surface treament of Hard coating, net weight of TBD. As a VA, Normally Black, Reflective LCM product, LS014B7DD01 can provides 0 cd/m² display brightness, 25:1 (Typ.) reflective contrast ratio, 60/60/60/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 20/20 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 2-bit gray scale signal for each dot, thus presenting a palette of 64 colors, also with performance of color gamut 18% (NTSC).

Screen Size:1.39 inch
Resolution:280x280
Brand: Sharp
1.39 Inch 280x280 Reflective Round LCD Display.

LS014B7DD01 Application
For Wearable & Industrial LCD Display.

LS014B7DD01 Options For Reference
LS014B7DD01
LS014B7DD01 with demo
LS014B7DD01 with backlight(NRE)

Reflective MIP Displays Technology

Reflective MIP Displays Application

To operate in low-light conditions, RLCDs need to be paired with an efficient front light solution such as the Youritech Front Light Panel.With improved optical coupling, collimation, and attenuation, our front light solution efficiently delivers more light exactly where you need it, and efficient LEDs can be used without experiencing typical issues with diffusion and material losses. Plus, as few as one low-power LED can be used in a front light instead of the five or more LEDs needed for alternative display light guides, making our solution the most efficient front light option available today.

It means your devices can stop relying on power-hungry backlights. By reinventing light guide and front light technology, we makes it possible to fully embrace the inherent power-saving features of RLCDs – from the brightest outdoor to the darkest indoor lighting environments.
