5.8 Inch High Brightness LCD Display Overview

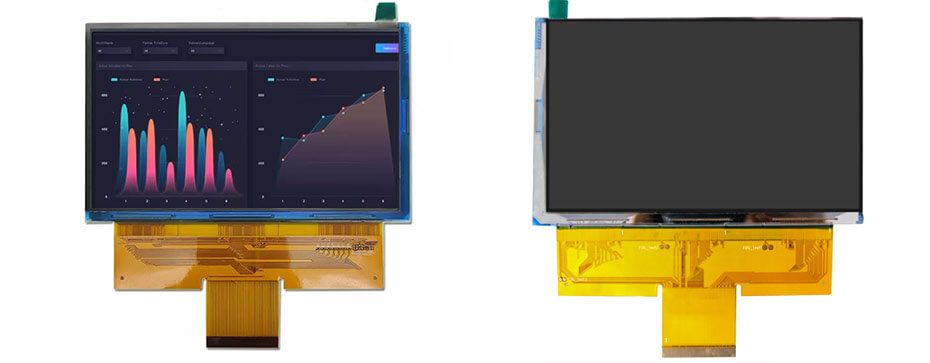

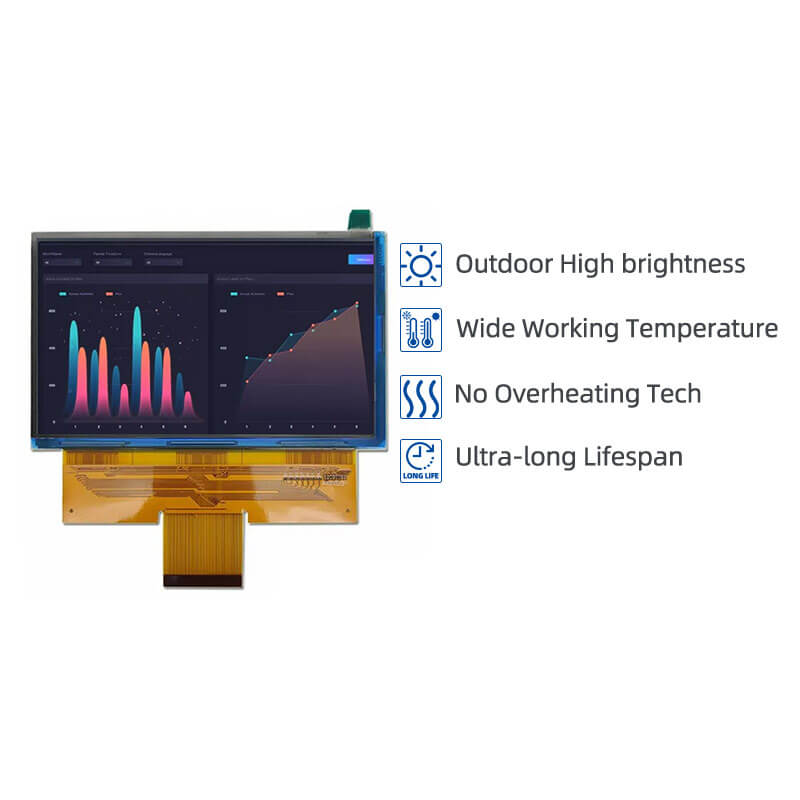

ET058HD01-RX is a 5.8-inch high-brightness Mini LVDS TFT LCD display with a transmissive display mode. It supports a resolution of 1280×768 and a typical brightness of 1000 cd/m². The display features an active area of 126.72 × 74.88 mm and an outline dimension of 137.488 × 84.7 mm. It offers viewing angles of 45° left/right, 20° up, and 50° down. The operating temperature range is –20 °C to 70 °C, with storage from –30 °C to 80 °C. This model does not include touch functionality.
More 5.8 Inch High Brightness LCD Display For Reference
ET058HD01-RX (1280x768, Mini LVDS, 1000nits, -20~70°C, 137.488x84.7mm)
ET058WV01-R (852x600, MIPI/RGB, 880nits, -30~80°C, 133.66x86.83mm)
Outdoor High Brightness Displays Technology
YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options
Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
Production and Manufacturing
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
