LS010B7DH04 Sharp 1 Inch Memory-in-Pixel LCD Display 128x128 Reflective 3-wire SPI MIP LCD Display

LS010B7DH04 Overview
LS010B7DH04 is a 1.0 inch diagonal CG-Silicon display screen product from Sharp, without backlight, without touch screen. LS010B7DH04 supports display 128×128 with aspect ratio of 1:1 (W:H), whose pixels are arranged in Rectangle. It features active area of 18.56(W)×18.56(H) mm, outline size of 22.12(W)×25.82(H)×0.86(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 1.00g (Max.). As a TN, Normally White, Reflective LCM product, LS010B7DH04 can provides , 20:1 (Typ.) reflective contrast ratio, 60/60/60/60 (Min.)(CR≥2) (L/R/U/D) viewing angle , and response time of 10/20 (Typ.)(Tr/Td) ms.

LS010B7DH04 Feature
-Reflective
-Matte
-Sunlight Readable Screen
Size:1 inch
Resolution:128x128
Brand:Sharp

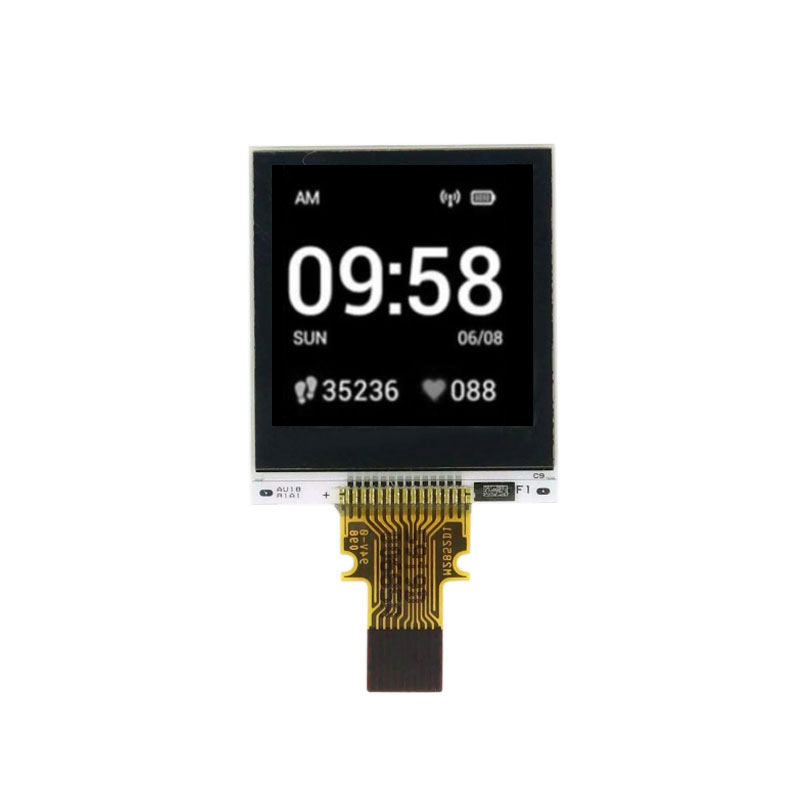

LS010B7DH04 Sharp 1 Inch 128x128 Sunlight Readable LCD Display.

LS010B7DH04 Application
For Wearable & Industrial LCD.

More LS010B7DH04 Options For Reference
LS010B7DH04
LS013B7DH05 with demo
LS010B7DH04 with backlight(NRE)

Reflective MIP Displays Technology

Reflective MIP Displays Application

To operate in low-light conditions, RLCDs need to be paired with an efficient front light solution such as the Youritech Front Light Panel.With improved optical coupling, collimation, and attenuation, our front light solution efficiently delivers more light exactly where you need it, and efficient LEDs can be used without experiencing typical issues with diffusion and material losses. Plus, as few as one low-power LED can be used in a front light instead of the five or more LEDs needed for alternative display light guides, making our solution the most efficient front light option available today.

It means your devices can stop relying on power-hungry backlights. By reinventing light guide and front light technology, we makes it possible to fully embrace the inherent power-saving features of RLCDs – from the brightest outdoor to the darkest indoor lighting environments.
