TN0216ANVNANN-GN00 2.2 Inch Reflective Display 320x176 Sunlight Readable 3-wire SPI MIP Display

TN0216ANVNANN-GN00 Overview
TN0216ANVNANN-GN00 supports display 320×176 with aspect ratio of 17:9 (W:H), whose pixels are arranged in Rectangle. As for mechanical detail, it features active area of 48(W)×26(H) mm, outline size of 51.1(W)×31.85(H)×1.54(D) mm, with surface treament of Glare (Haze 0%), net weight of 5.00g (Typ.). As a ECB, Normally Black, Reflective LCM product, TN0216ANVNANN-GN00 can provides , 40:1 (Typ.) reflective contrast ratio, 60/60/60/60 (Typ.)(CR≥2) (L/R/U/D) viewing angle , and response time of 12/13 (Typ.)(Tr/Td) ms., thus presenting a palette of Monochrome colors. This product have no backlight. TN0216ANVNANN-GN00 utilizes 3-wire SPI as it's signal inputting systerm, which connected by 9 pins FPC with power supply voltage of 3.3V (Typ.).

TN0216ANVNANN-GN00 Feature
-Reflective
-Sunlight Readable
-Glossy

Screen Size: 2.2 inch
Resolution: 320x176
Brand: Kyocera

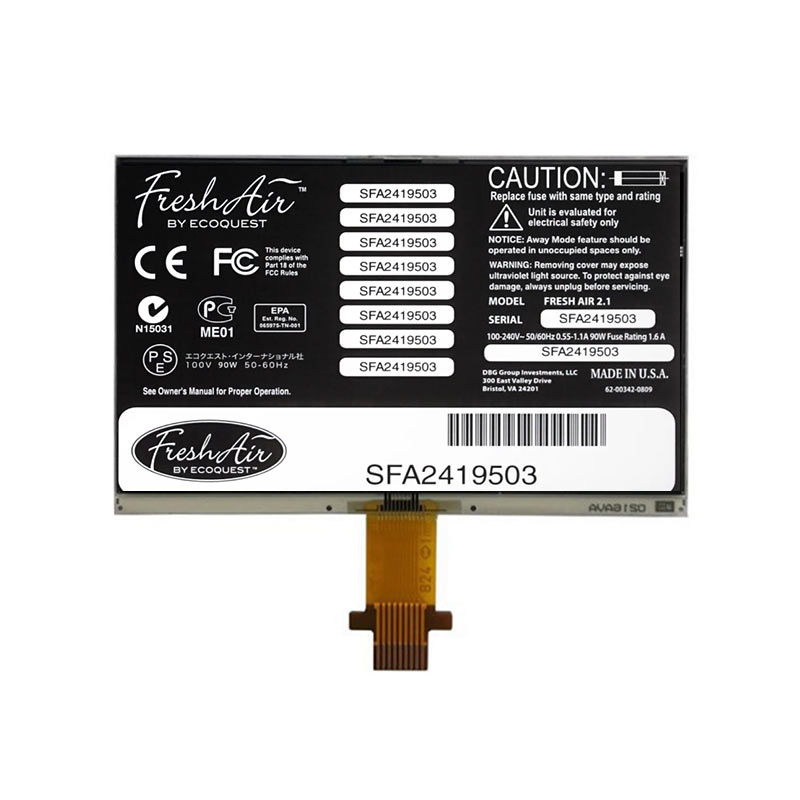

TN0216ANVNANN-GN00 2.2 Inch 320x176 Reflective Display.

TN0216ANVNANN-GN00 Application
For Wearable & Industrial LCD Display.

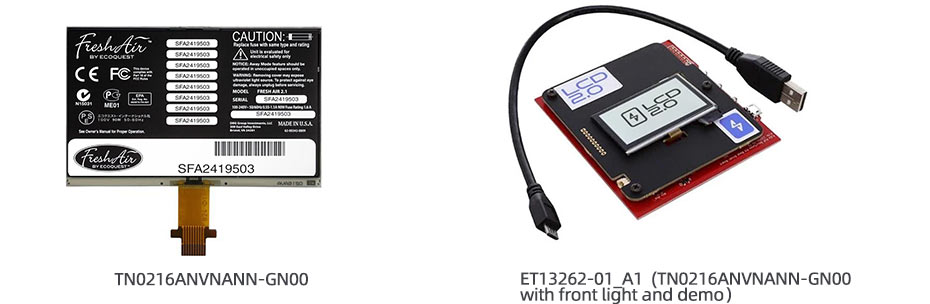

TN0216ANVNANN-GN00 Options For Reference
TN0216ANVNANN-GN00
ET13262-01_A1 (TN0216ANVNANN-GN00 with front light and demo)

Reflective MIP Displays Technology

Reflective MIP Displays Application

To operate in low-light conditions, RLCDs need to be paired with an efficient front light solution such as the Youritech Front Light Panel.With improved optical coupling, collimation, and attenuation, our front light solution efficiently delivers more light exactly where you need it, and efficient LEDs can be used without experiencing typical issues with diffusion and material losses. Plus, as few as one low-power LED can be used in a front light instead of the five or more LEDs needed for alternative display light guides, making our solution the most efficient front light option available today.

It means your devices can stop relying on power-hungry backlights. By reinventing light guide and front light technology, we makes it possible to fully embrace the inherent power-saving features of RLCDs – from the brightest outdoor to the darkest indoor lighting environments.
