LQ156D1JX02 Sharp 15.6 Inch TFT LCD Display 3840x2160 eDP LCD Panel With Driver Board

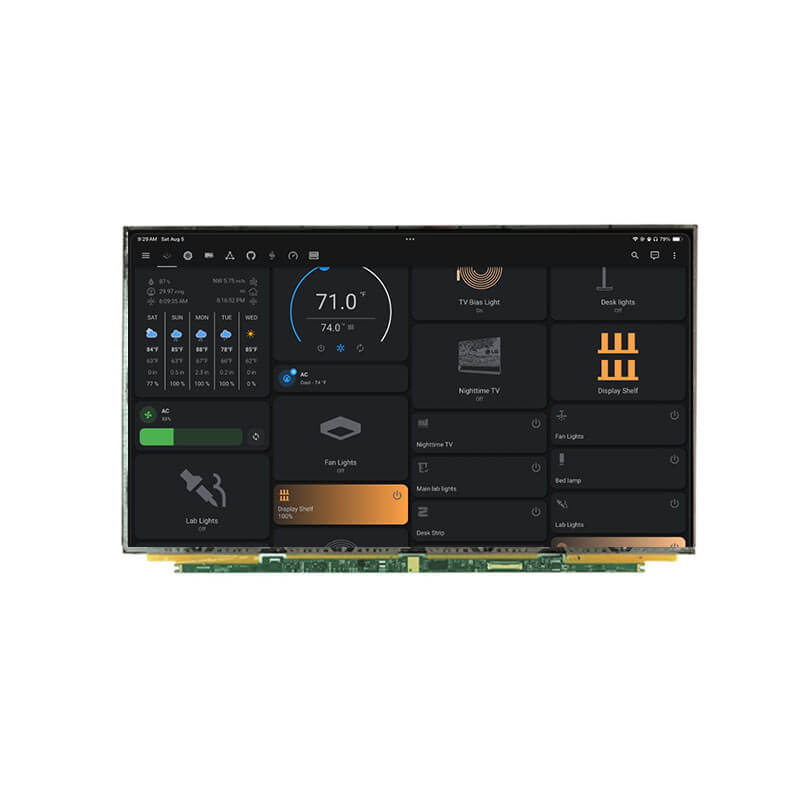

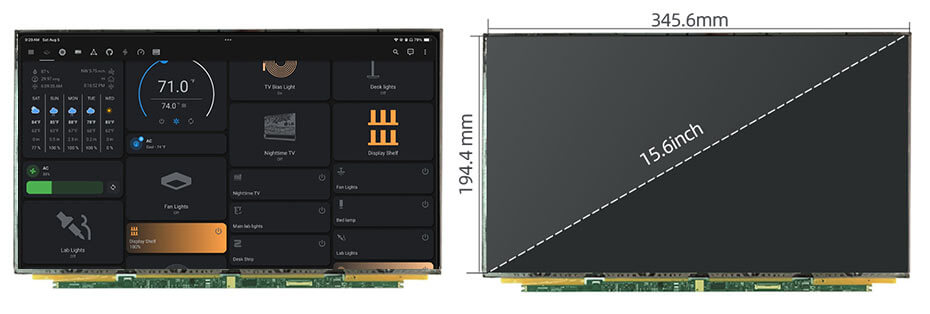

15.6 Inch LCD Display Overview

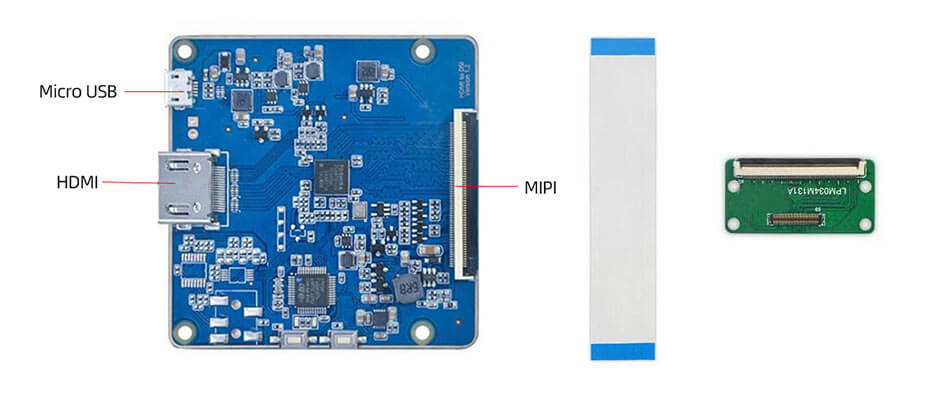

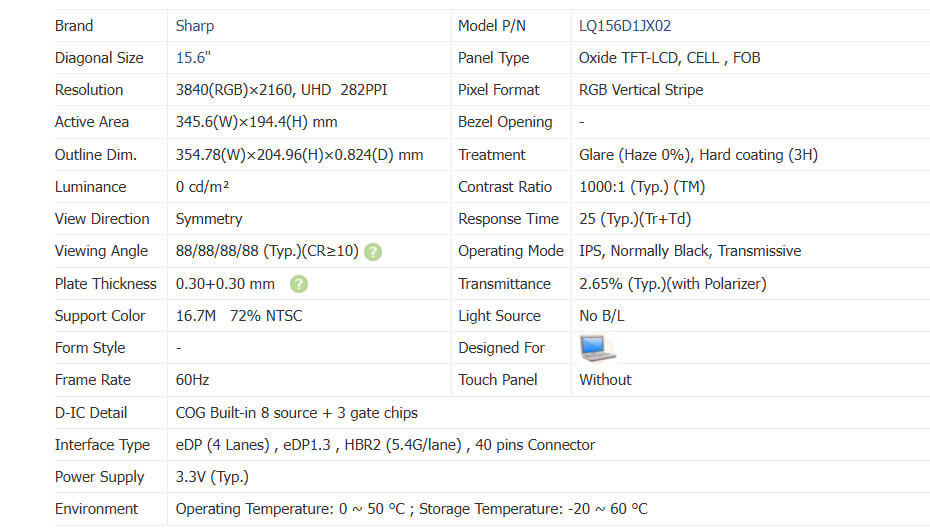

LQ156D1JX02 supports display 3840(RGB)×2160 (UHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe, it's pixel density is 282 PPI. As for mechanical detail, it features active area of 345.6(W)×194.4(H) mm, outline size of 354.78(W)×204.96(H)×0.824(D) mm, with surface treament of Glare (Haze 0%), Hard coating (3H), net weight of TBD, utilizing 0.30+0.30 mm mm plate. As a IPS, Normally Black, Transmissive CELL product, LQ156D1JX02 can provides 1000:1 transimissive contrast ratio, 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product have no backlight. LQ156D1JX02 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

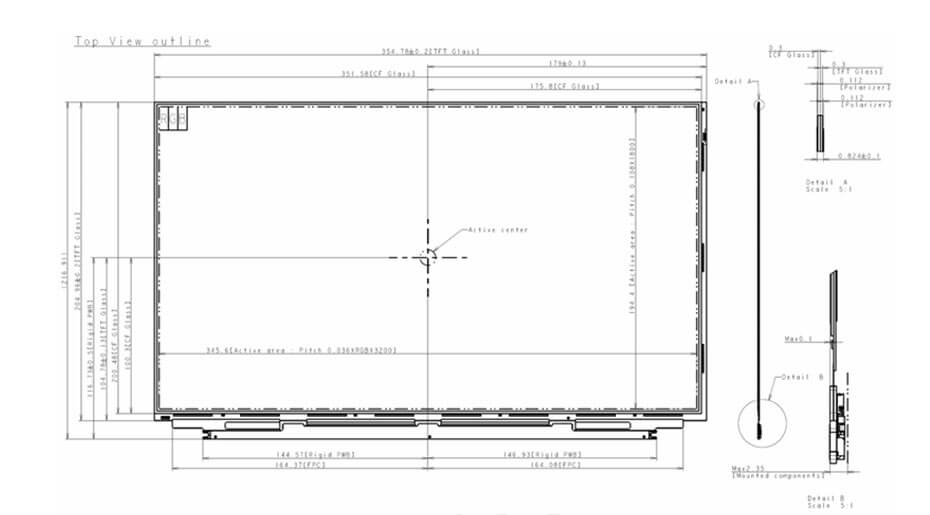

15.6 Inch LCD Display Drawing
