19.1 Inch High Brightness LCD Display Overview

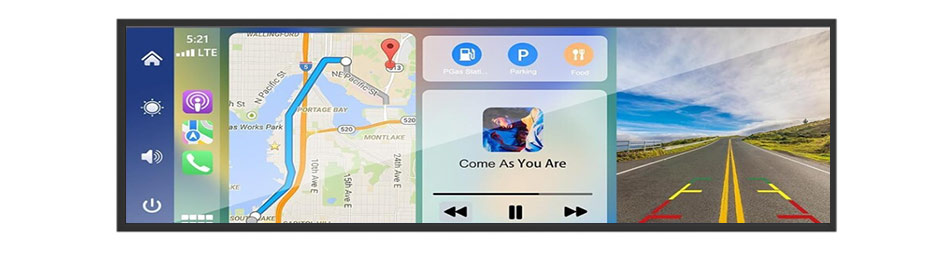

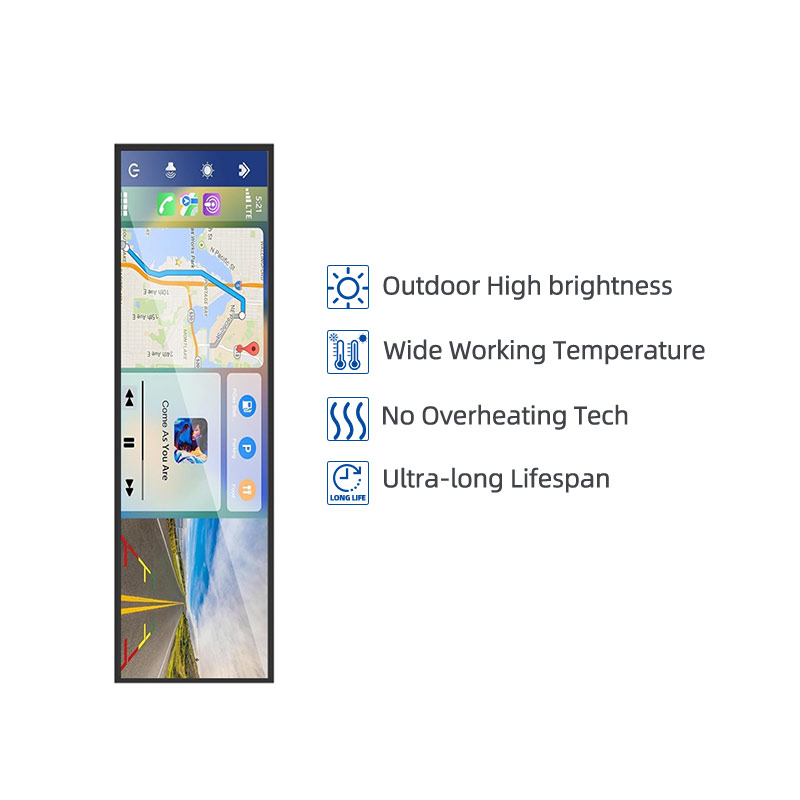

ET191BA02-R is a 19.1-inch high-brightness IPS TFT LCD display with a transmissive display mode and LVDS interface. It supports a resolution of 1920 × 360, offers a typical brightness of 1500 cd/m², and provides full viewing angles of 89°/89°/89°/89° (L/R/U/D). The display features an active area of 476.64 × 89.37 mm and an outline dimension of 510 × 123 mm. It operates between 0 °C and 50 °C, can be stored between −20 °C and 60 °C, and does not include touch functionality.
More 19.1 Inch High Brightness Display For Reference

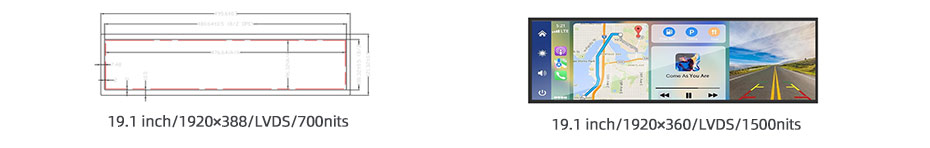

ET191BA01-R (1920x388, LVDS, 700nits, 0~50°C, 495.6x121.3mm)
ET191BA02-R (1920x360, LVDS, 1500nits, 0~50°C, 510x123mm)
Outdoor High Brightness Displays Technology
YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options
Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
Production and Manufacturing
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
