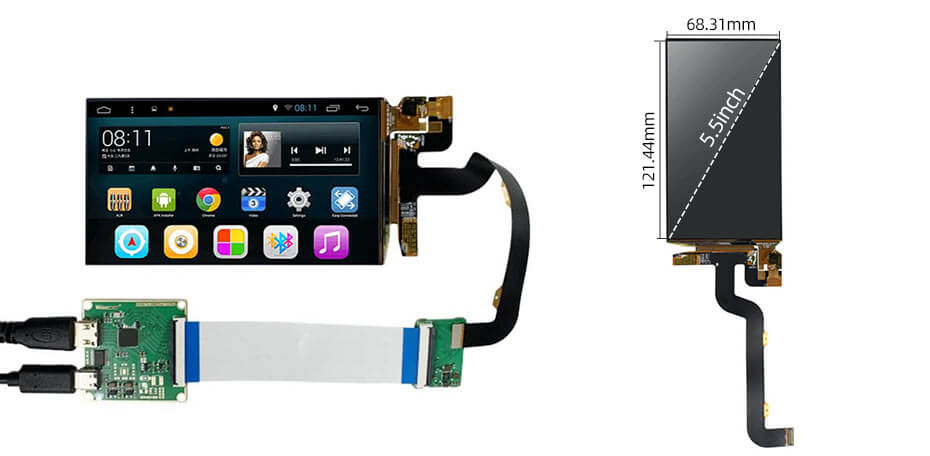

BB055FHM-T00-6P01 BOE 5.5 Inch AMOLED Display 1080x1920 MIPI Touch OLED Display With Driver Board

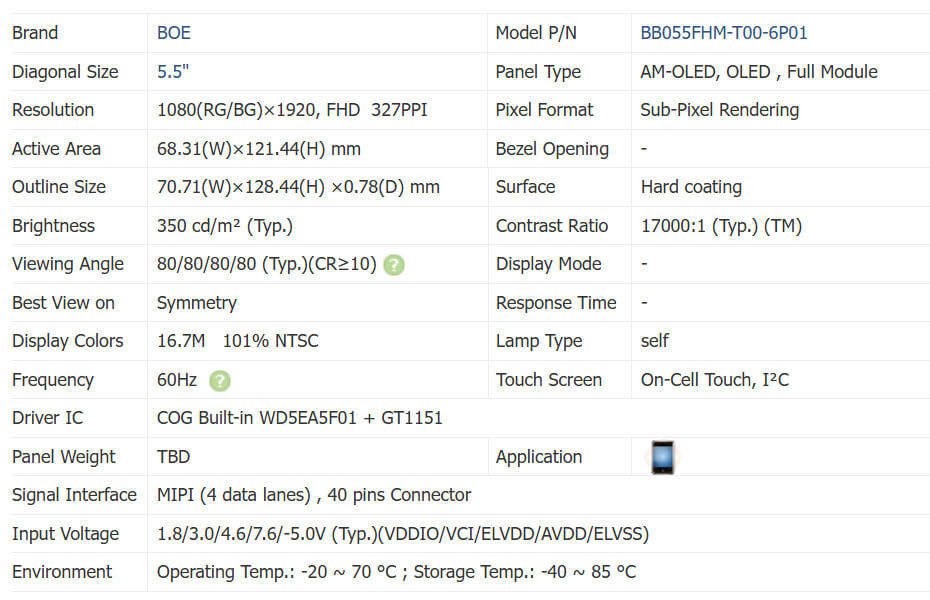

Part No.:BB055FHM-T00-6P01
Size:5.5″ inch
Resolution:1080x1920
Panel Interface:MIPI (4 data lanes)
Display mode:/

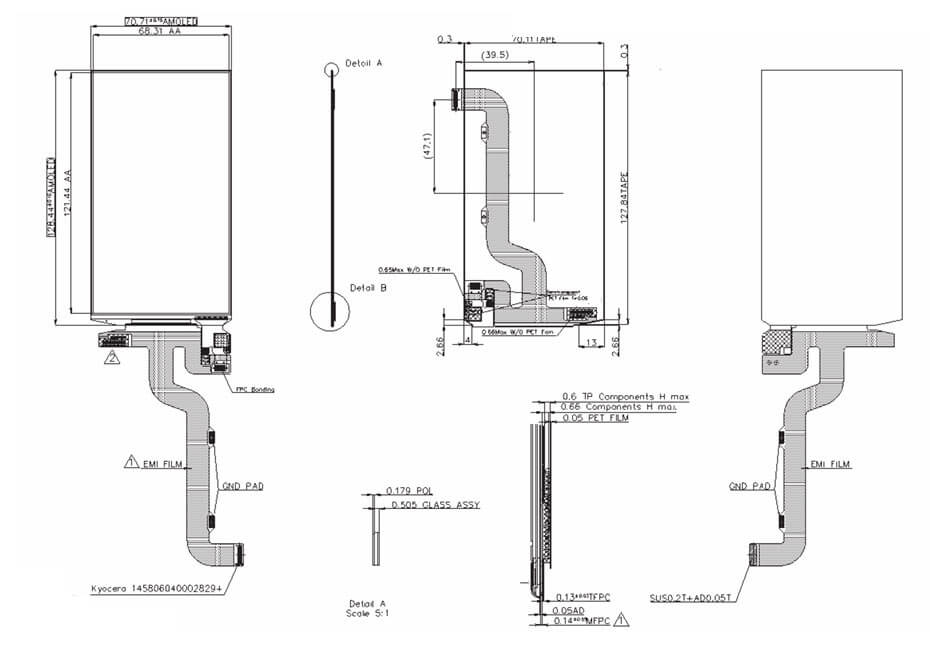

Outline Dimension:70.71x128.44mm
Active Area:68.31x121.44mm
Viewing Angle L/R/U/D:80/80/80/80 (Typ.)
Brightness（cd/m2）:350cd/m²(Typ.)
Operation / Storage Temp:-20~70°C / -40~85°C
Touch:yes

5.5 Inch LCD Display Overview
BB055FHM-T00-6P01 supports display 1080(RG/BG)×1920 (FHD) with aspect ratio of 9:16 (W:H), whose pixels are arranged in Sub-Pixel Rendering,it's pixel density is 327 PPI. As for mechanical detail, it features active area of 68.31(W)×121.44(H) mm, outline size of 70.71(W)×128.44(H)×0.78(D) mm, with surface treament of Hard coating, net weight of TBD. BB055FHM-T00-6P01 can provides 350 cd/m² display brightness 17000:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry . Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 101% (NTSC). This product emiting itself . BB055FHM-T00-6P01 utilizes MIPI (4 data lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 1.8/3.0/4.6/7.6/-5.0V (Typ.)(VDDIO/VCI/ELVDD/AVDD/ELVSS). It's typical vertical frame rate (Fv) is 60Hz.
