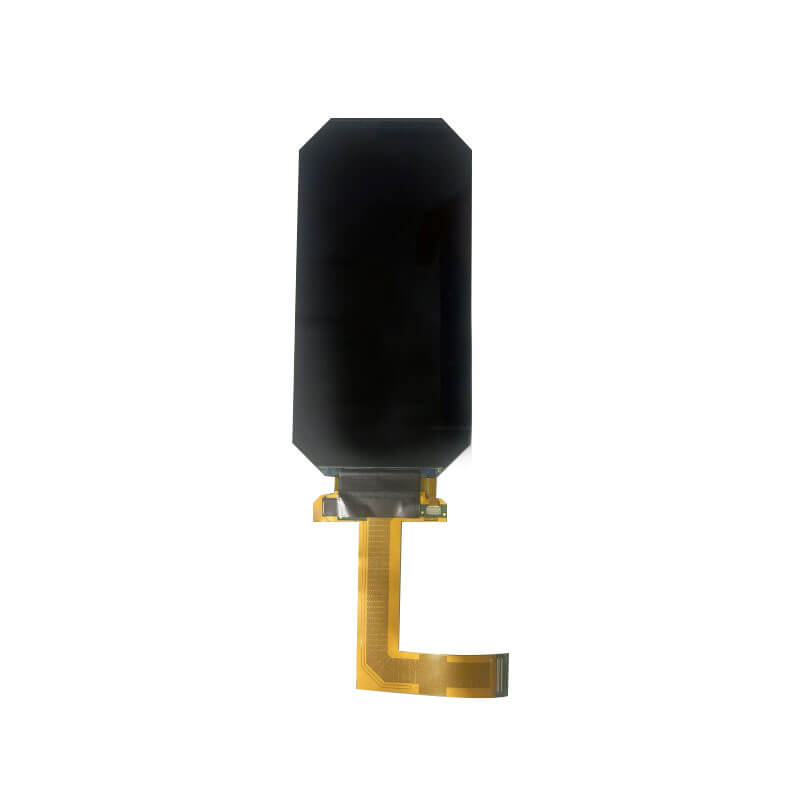

LPM055M493F JDI 5.5 Inch TFT LCD Display 1920x3664 MIPI LCD Panel

LPM055M493F Overview

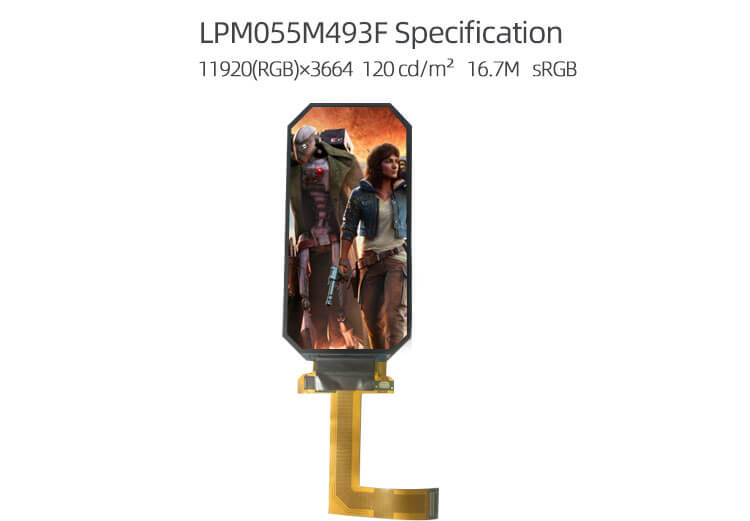

LPM055M493F supports display 1920(RGB)×3664 with aspect ratio of 1:2 (W:H), whose pixels are arranged in RGB Vertical Stripe, according to calculation of Panelook it's pixel density is 757 PPI. As for mechanical detail, it features active area of 63.07(W)×123.58(H) mm, outline size of 66.3(W)×135.98(H)×1.8(D) mm, with surface treament of Hard coating, net weight of 24.6g (Typ.). As a IPS, Normally Black, Transmissive LCM product, LPM055M493F can provides 120 cd/m² display brightness 650:1 transimissive contrast ratio, best view direction on Symmetry , and response time of 4 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 99% (sRGB). This product adopted 8S4P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed. LPM055M493F utilizes MIPI (2 ch, 4 data lanes) as it's signal inputting systerm, which connected by 60 pins Connector with power supply voltage of 1.8/5.7/-5.7V (Typ.)(IOVCC/VSP/VSN). It's typical vertical frame rate (Fv) is 120Hz.

Application
Head-mounted Displays, Viewfinders, Small Display,AR VR etc.

As one of the Pioneers within microdisplays products, Youritech have pushed energy efficiency to the edge, delivering high-performance Near-Eye Displays (NED) for a wide range of products, that include video glasses, head-mounted sports devices, camera viewfinders, medical applications, and many other professional devices worldwide.
