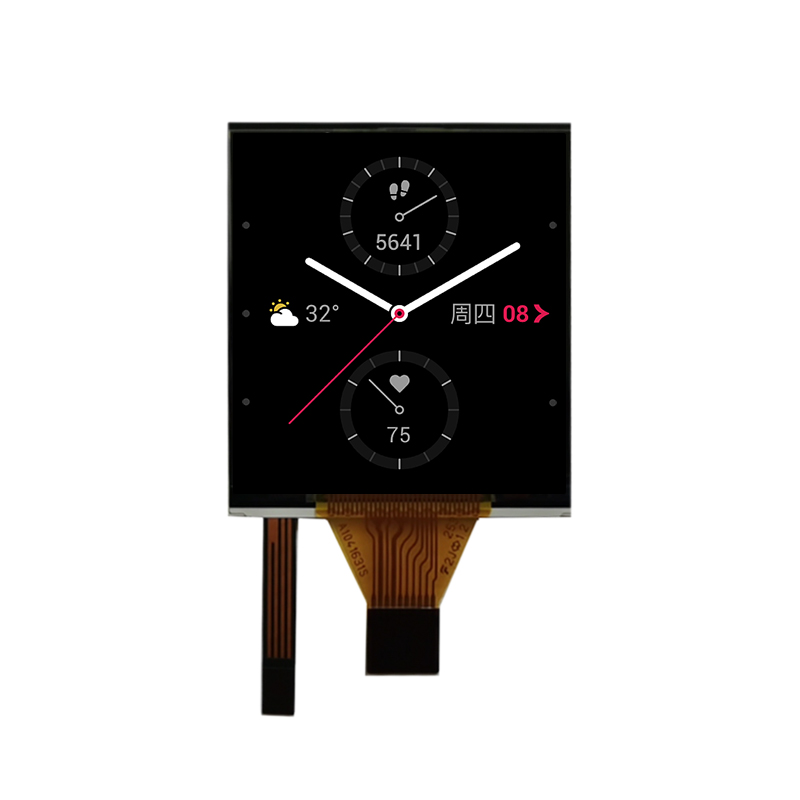

LPM013M126C JDI 1.28 Inch TFT LCD Display 176x176 Reflective Sunlight Readable LCD Panel

LPM013M126C Overview
LPM013M126C supports display 176(RGB)×176 with aspect ratio of 1:1 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 23.0208(W)×23.0208(H) mm, outline size of 26.62(W)×29.72(H)×1.6(D) mm, with surface treament of Hard coating (2H), net weight of 1.60g (Typ.). As a ECB, Normally Black, Reflective LCM product, LPM013M126C can provides 10 cd/m² display brightness, 30:1 (Typ.) reflective contrast ratio, 65/65/65/65 (Typ.)(CR≥2) (L/R/U/D) viewing angle , and response time of 4/6 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 1-bit gray scale signal for each dot, thus presenting a palette of 8 colors, also with performance of color gamut 23% (NTSC). This product adopted 1S2P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed. LPM013M126C utilizes SPI as it's signal inputting systerm, which connected by 10 pins FPC with power supply voltage of 3.3/3.3V (Typ.)(VDDA/VDD). It's typical vertical frame rate (Fv) is 60Hz.

LPM013M126C Application
For Handheld & PDA,Industrial,wearable.

Reflective MIP Displays Technology

Reflective MIP Displays Application

To operate in low-light conditions, RLCDs need to be paired with an efficient front light solution such as the Youritech Front Light Panel.With improved optical coupling, collimation, and attenuation, our front light solution efficiently delivers more light exactly where you need it, and efficient LEDs can be used without experiencing typical issues with diffusion and material losses. Plus, as few as one low-power LED can be used in a front light instead of the five or more LEDs needed for alternative display light guides, making our solution the most efficient front light option available today.

It means your devices can stop relying on power-hungry backlights. By reinventing light guide and front light technology, we makes it possible to fully embrace the inherent power-saving features of RLCDs – from the brightest outdoor to the darkest indoor lighting environments.
