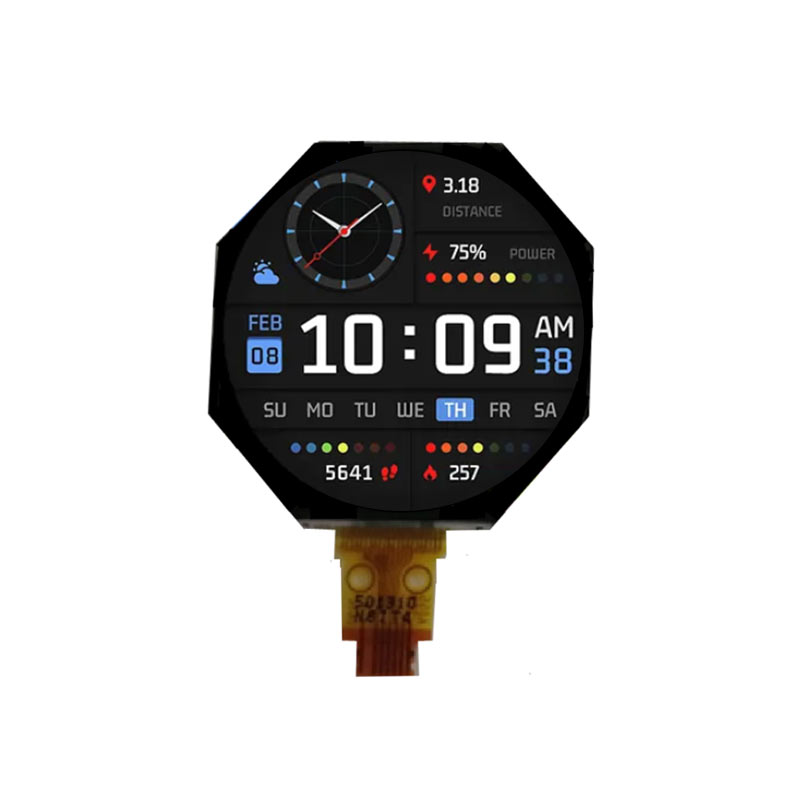

LPM010M297B JDI 1 Inch TFT LCD Display 208×208 Reflective Sunlight Readable Circular Display

LPM010M297B Overview
LPM010M297B supports display 208(RGB)×208 with aspect ratio of 1:1 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 26.2912(W)×26.2912(H) mm, outline size of 29.291(W)×30.591(H)×1.01(D) mm, with surface treament of Hard coating (2H), net weight of 1.35g (Typ.). As a ECB, Normally Black, Reflective LCM product, LPM010M297B can provides , 30:1 (Typ.) reflective contrast ratio, 65/65/65/65 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 4/6 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 1-bit gray scale signal for each dot, thus presenting a palette of 8 colors, also with performance of color gamut 23% (NTSC). This product have no backlight. LPM010M297B utilizes 3-wire SPI as it's signal inputting systerm, which connected by 8 pins FPC with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

LPM010M297B Feature
-Reflective
-Circular
-Sunlight Readable

Screen Size: 1 inch
Resolution: 208x208
Brand:Sharp
LPM010M297B JDI 1 Inch 208×208 Sunlight Readable LCD Display.

LPM010M297B Application
For Wearable & Industrial LCD.

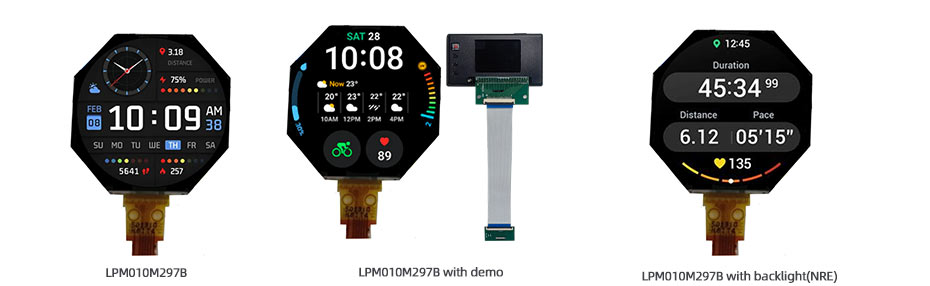

More LPM010M297B Options For Reference
LPM010M297B

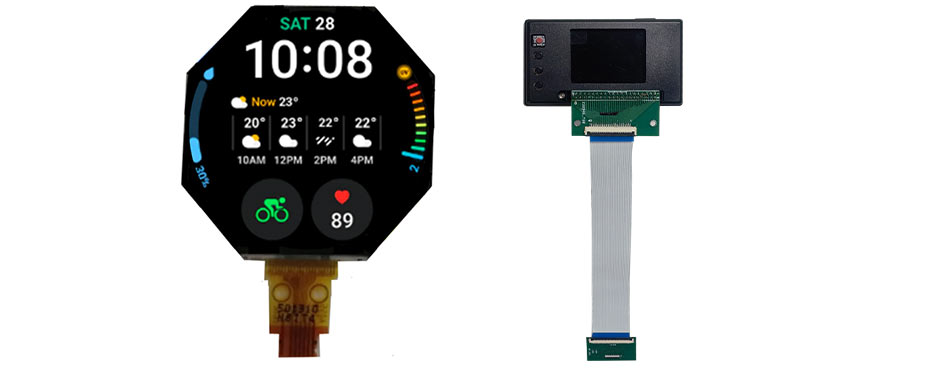

LPM010M297B with demo
LPM010M297B with backlight(NRE)

Reflective MIP Displays Technology

Reflective MIP Displays Application

To operate in low-light conditions, RLCDs need to be paired with an efficient front light solution such as the Youritech Front Light Panel.With improved optical coupling, collimation, and attenuation, our front light solution efficiently delivers more light exactly where you need it, and efficient LEDs can be used without experiencing typical issues with diffusion and material losses. Plus, as few as one low-power LED can be used in a front light instead of the five or more LEDs needed for alternative display light guides, making our solution the most efficient front light option available today.

It means your devices can stop relying on power-hungry backlights. By reinventing light guide and front light technology, we makes it possible to fully embrace the inherent power-saving features of RLCDs – from the brightest outdoor to the darkest indoor lighting environments.
