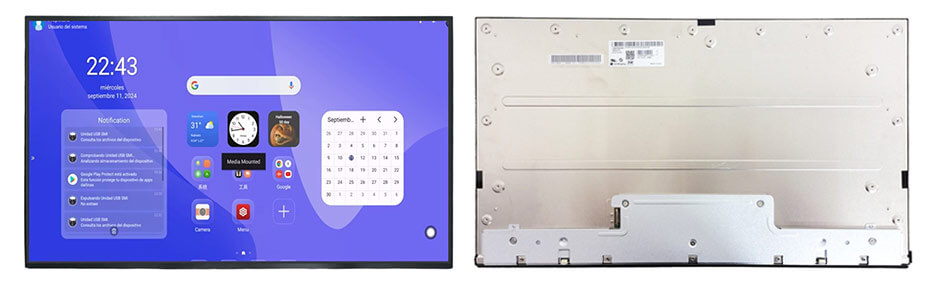

LM270WR5-SSF1 27 Inch 4K LCD Display 3840x2160 eDP (4 Lanes) IPS LCD Module

27 Inch 4k Display Overview
 LM270WR5-SSF1 supports display 3840(RGB)×2160 (UHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 596.736(W)×335.664(H) mm, outline size of 608.8(W)×349.4(H)×12.5(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 2.54/2.67Kgs (Typ./Max.). As a IPS, Normally Black, Transmissive LCM product, LM270WR5-SSF1 can provides 400 cd/m² display brightness 1300:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 100% (sRGB). This product adopted 4 strings × 2CN WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 30K hours, external backlight driver is additionally needed. LM270WR5-SSF1 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 10.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

More 27 Inch 4k Display For Reference
LM270WR3-SSA1 (LCM, 3840x2160, eDP, 350nits, 0~50°C, 608.8x355.3mm)
LM270WR4-SSA1 (LCM, 3840x2160, eDP, 350nits, 0~50°C, 608.8x355.3mm)
LM270WR5-SSF1 (LCM, 3840x2160, eDP, 400nits, 0~50°C, 608.8x349.4mm)
LM270WR5-SSE1 (LCM, 3840x2160, eDP, 350nits, 0~50°C, 608.8x349.4mm)
LM270WR8-SSA1 (LCM, 3840x2160, eDP, 450nits, 0~50°C, 603.9x347.45mm)
LM270WR8-SSC1 (LCM, 3840x2160, eDP, 400nits, 0~50°C, 603.9x346.15mm)
LM270WR9-SSA1 (LCM, 3840x2160, eDP, 400nits, 0~50°C, 608.8x349.4mm)
LM270WR8-SSD1 (LCM, 3840x2160, eDP, 450nits, 0~50°C, 603.9x347.45mm)
LM270WRC-SSA1 (LCM, 3840x2160, eDP, 400nits, 0~50°C, 608.8x354mm)
LM270WRA-SSA1 (LCM, 3840x2160, eDP, 450nits, 0~50°C, 608.8x349.4mm)
LM270QQ2-SPA3 (LCM, 5120x288 , eDP, 54nits, 0~50°C, 620.6x361.1mm)
G270ZAN01.1 (LCM, 3840x2160, V-by-One, 800nits, 0~50°C, 630x368.2mm)
G270ZAN01.3 (LCM, 3840x2160, eDP, 350nits, 0~50°C, 630x368.2mm)
G270ZAN01.5 (LCM, 3840x2160, eDP, 500nits, 0~50°C, 613.6x356.85mm)
M270QAN06.1 (LCM, 3840x2160, eDP, 400nits, 0~50°C, 608.92x355.3mm)
M270QAN07.0 (LCM, 3840x2160, eDP, 400nits, 0~50°C, 609.1x355mm)
MV270QUM-N50 (LCM, 3840x2160, eDP, 400nits, 0~50°C, 609.4x355.6mm)
EV270QUM-N11 (LCM, 3840x2160, eDP, 10000nits, 0~50°C, 630x368.2mm)
MV270QUM-NM1 (LCM, 3840x2160, eDP, 600nits, 0~50°C, 608.9x359.8mm)
MV270QUM-N54 (LCM, 3840x2160, eDP, 450nits, 0~50°C, 609.4x355.6mm)
MV270QUM-NM0 (LCM, 3840x2160, eDP, 720nits, 0~50°C, 608.8x354.1mm)
EV270QUM-N10 (LCM, 3840x2160, eDP, 1000nits, 0~50°C, 630x368.2mm)
ET270UH01-R (LCM, 3840x2160, LVDS,  1500nits, 0~50°C, 618x360mm)
ET270UH02-R (LCM, 3840x2160, eDP, 1000nits, 0~50°C, 628.8x367.1mm)
