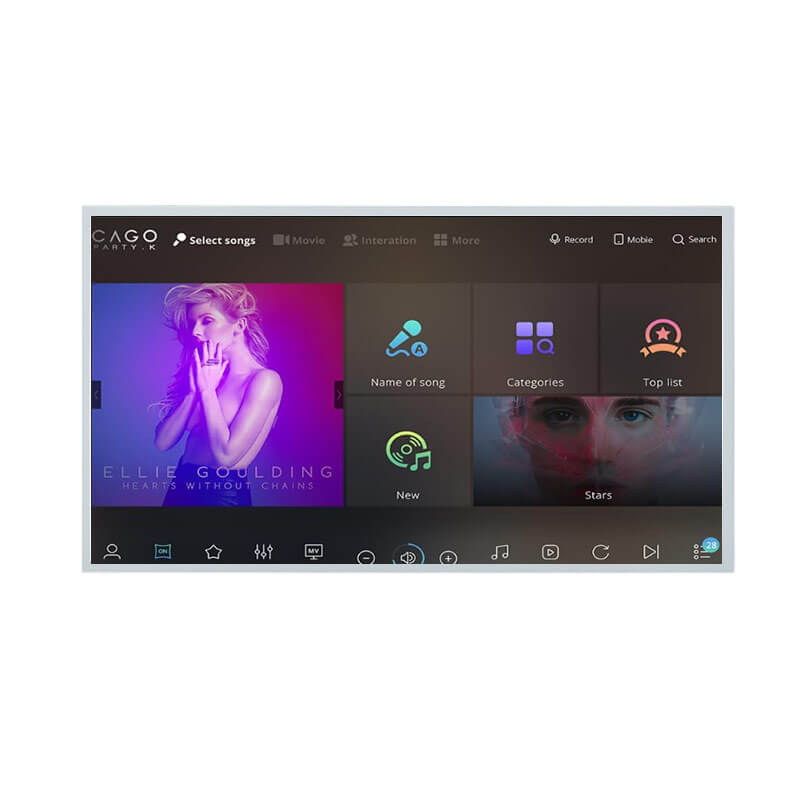

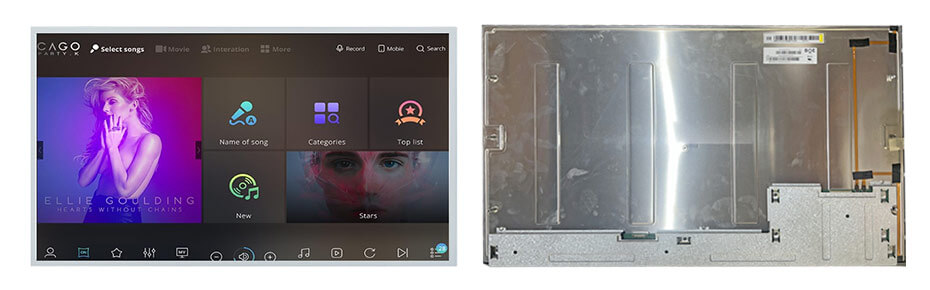

LM270WR8-SSA1 27 Inch 4K LCD Display 3840x2160 eDP (4 Lanes) 1000nits High Brightness IPS LCD Module

27 Inch 4k Display Overview
EV270QUM-N11 supports display 3840(RGB)×2160 (UHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 596.736(W)×335.664(H) mm, outline size of 630(W)×368.2(H)×21.38(D) mm, with surface treament of Antiglare (Haze 42%), Hard coating (3H), net weight of 3.34Kgs (Typ.). As a ADS, Normally Black, Transmissive LCM product, EV270QUM-N11 can provides 1000 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 100% (sRGB). This product adopted WLED as it's backlight systerm which was placed as Edge light type (Top and Bottom) and have a working life time of 30K hours, With LED Driver. EV270QUM-N11 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 10.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

More 27 Inch 4k Display For Reference
LM270WR3-SSA1 (LCM, 3840x2160, eDP, 350nits, 0~50°C, 608.8x355.3mm)
LM270WR4-SSA1 (LCM, 3840x2160, eDP, 350nits, 0~50°C, 608.8x355.3mm)
LM270WR5-SSF1 (LCM, 3840x2160, eDP, 400nits, 0~50°C, 608.8x349.4mm)
LM270WR5-SSE1 (LCM, 3840x2160, eDP, 350nits, 0~50°C, 608.8x349.4mm)
LM270WR8-SSA1 (LCM, 3840x2160, eDP, 450nits, 0~50°C, 603.9x347.45mm)
LM270WR8-SSC1 (LCM, 3840x2160, eDP, 400nits, 0~50°C, 603.9x346.15mm)
LM270WR9-SSA1 (LCM, 3840x2160, eDP, 400nits, 0~50°C, 608.8x349.4mm)
LM270WR8-SSD1 (LCM, 3840x2160, eDP, 450nits, 0~50°C, 603.9x347.45mm)
LM270WRC-SSA1 (LCM, 3840x2160, eDP, 400nits, 0~50°C, 608.8x354mm)
LM270WRA-SSA1 (LCM, 3840x2160, eDP, 450nits, 0~50°C, 608.8x349.4mm)
LM270QQ2-SPA3 (LCM, 5120x288 , eDP, 54nits, 0~50°C, 620.6x361.1mm)
G270ZAN01.1 (LCM, 3840x2160, V-by-One, 800nits, 0~50°C, 630x368.2mm)
G270ZAN01.3 (LCM, 3840x2160, eDP, 350nits, 0~50°C, 630x368.2mm)
G270ZAN01.5 (LCM, 3840x2160, eDP, 500nits, 0~50°C, 613.6x356.85mm)
M270QAN06.1 (LCM, 3840x2160, eDP, 400nits, 0~50°C, 608.92x355.3mm)
M270QAN07.0 (LCM, 3840x2160, eDP, 400nits, 0~50°C, 609.1x355mm)
MV270QUM-N50 (LCM, 3840x2160, eDP, 400nits, 0~50°C, 609.4x355.6mm)
EV270QUM-N11 (LCM, 3840x2160, eDP, 10000nits, 0~50°C, 630x368.2mm)
MV270QUM-NM1 (LCM, 3840x2160, eDP, 600nits, 0~50°C, 608.9x359.8mm)
MV270QUM-N54 (LCM, 3840x2160, eDP, 450nits, 0~50°C, 609.4x355.6mm)
MV270QUM-NM0 (LCM, 3840x2160, eDP, 720nits, 0~50°C, 608.8x354.1mm)
EV270QUM-N10 (LCM, 3840x2160, eDP, 1000nits, 0~50°C, 630x368.2mm)
ET270UH01-R (LCM, 3840x2160, LVDS,  1500nits, 0~50°C, 618x360mm)
ET270UH02-R (LCM, 3840x2160, eDP, 1000nits, 0~50°C, 628.8x367.1mm)
