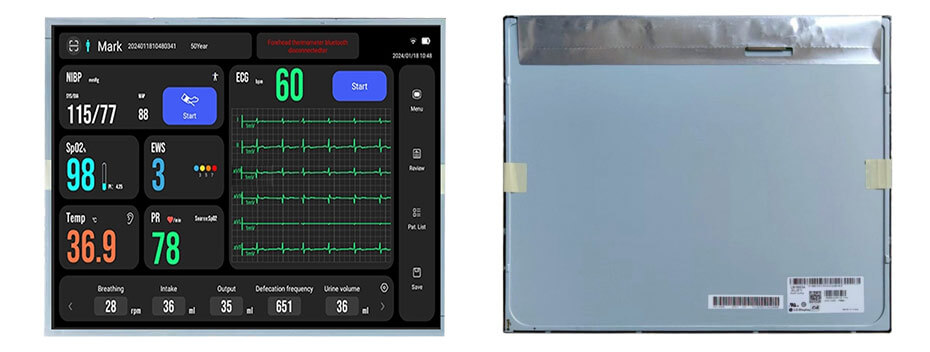

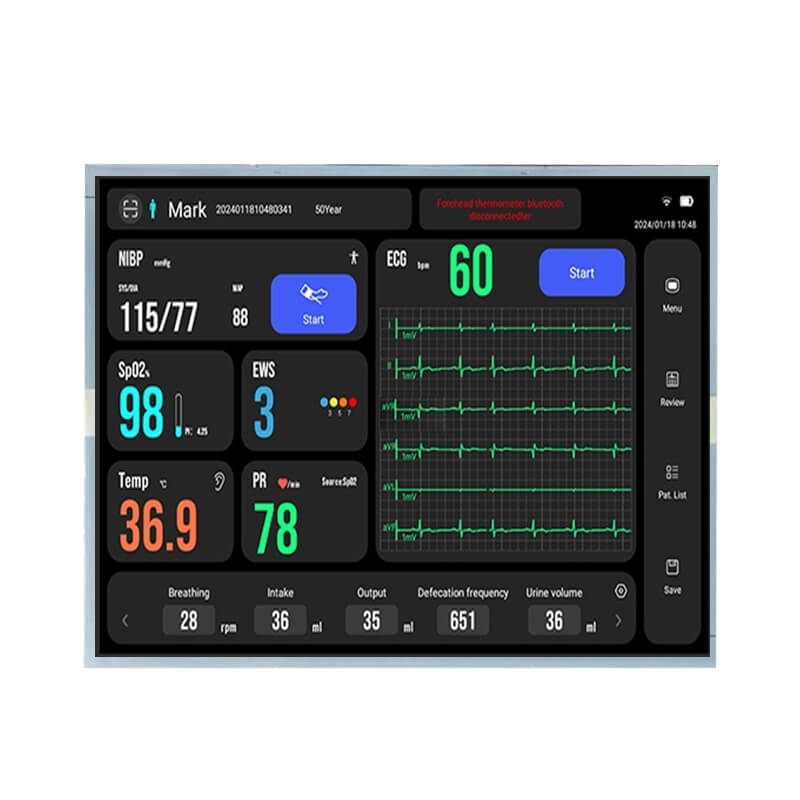

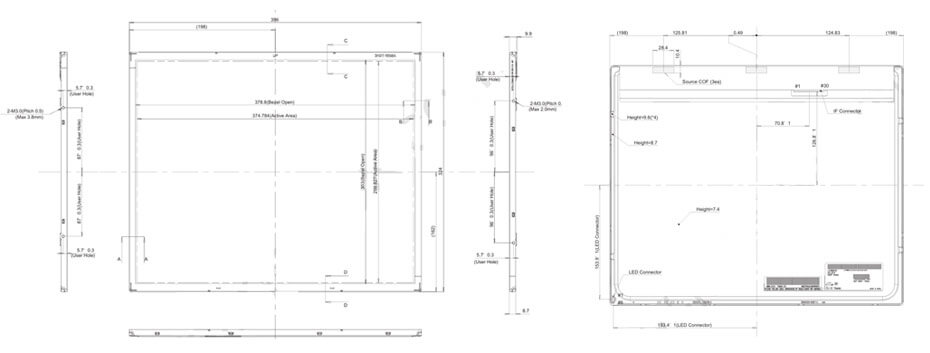

LM190E0A-SLE1 is a 19.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen. LM190E0A-SLE1 supports display 1280(RGB)×1024 (SXGA) with aspect ratio of 5:4 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 376.32(W)×301.056(H) mm, outline size of 396(W)×324(H)×10.4(D) mm, viewing area size of 378.8(W)×303.0(H) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 1.46/1.54Kgs (Typ./Max.). As a IPS, Normally Black, Transmissive LCM product, LM190E0A-SLE1 can provides 250 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted 19S2P WLED as it's backlight systerm which was placed as Edge light type (Right side) and have a working life time of 30K hours, external backlight driver is additionally needed. LM190E0A-SLE1 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.). It's typical vertical frame rate (Fv) is 75Hz.
More 19 Inch Healthcare & Medical Display Solution For Reference

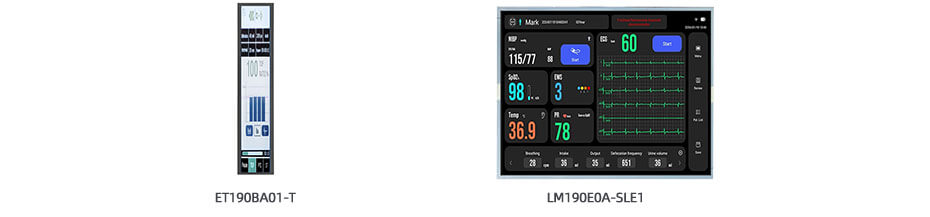

ET190BA01-T (LCM, 1920×320, LVDS, 0~50°C, 500×119.6mm)
LM190E0A-SLE1 (LCM, 1280×1024, LVDS, 0~50°C, 396×324mm)
High Image Quality
–Sharp, accurate images for medical diagnostics.
High Brightness
–Excellent visibility in various lighting conditions.
Wide Viewing Angle
–IPS technology ensures clear viewing from any angle.
24/7 Reliable Operation
–Stable performance for continuous medical use.
Wide Temperature Range
–Reliable in demanding healthcare environments.
PCAP Touch Support
–Smooth, accurate touch with glove compatibility.
Low Power Consumption
–Energy-efficient for portable medical devices.
Long-Term Supply
–Stable lifecycle for medical equipment projects.
Custom Design Support
–Brightness, touch, interface, and optical bonding customization.
OEM & ODM Service
–End-to-end display solutions for healthcare applications.
Medical Imaging Equipment
Ultrasound Systems; Patient Monitoring Systems; X-Ray Imaging Systems; Digital Radiography Systems; CT Scanners; MRI Systems; Endoscopy Systems; Medical Imaging Monitors; Portable Ultrasound Devices.
Patient Monitoring & Critical Care
Patient Monitors; Vital Signs Monitors; ECG / EKG Monitors; Blood Pressure Monitors; Pulse Oximeters; Capnography Monitors; Multi-Parameter Patient Monitors; Central Patient Monitoring Stations.
Diagnostic & Laboratory Equipment
Blood Analyzers; Hematology Analyzers; Biochemistry Analyzers; Immunoassay Analyzers; Urine Analyzers; Microscopy Systems; Laboratory Analyzers; Point-of-Care Testing Devices; Diagnostic Testing Equipment.
Surgical & Operating Room Equipment
Surgical Displays; Surgical Monitors; Endoscopic Systems; Laparoscopic Systems; Surgical Navigation Systems; Operating Room Displays; Anesthesia Machines; Electrosurgical Units; Surgical Robots.
Dental Equipment
Dental Treatment Units; Dental Imaging Systems; Dental X-Ray Systems; Intraoral Cameras; Dental CAD/CAM Systems; Dental Chairs; Dental Sterilization Equipment.
Emergency & Ambulance Equipment
Portable Patient Monitors; Defibrillators; Emergency Ventilators; Portable Ultrasound; Ambulance Monitoring Systems; Emergency Medical Devices; Portable Diagnostic Equipment.
Respiratory & Anesthesia Equipment
Ventilators; Respiratory Monitors; Anesthesia Machines; Oxygen Concentrators; CPAP / BiPAP Devices; Respiratory Therapy Equipment; Gas Monitoring Systems.
Infusion & Drug Delivery
Infusion Pumps; Syringe Pumps; Enteral Feeding Pumps; Drug Delivery Systems; IV Monitoring Systems.
Rehabilitation & Home Healthcare
Rehabilitation Equipment; Physiotherapy Equipment; Home Patient Monitoring; Home Healthcare Devices; Mobility Assistance Equipment; Smart Healthcare Devices; Remote Patient Monitoring Devices.
Ophthalmic Equipment
Ophthalmic Diagnostic Devices; Fundus Cameras; Optical Coherence Tomography (OCT) Systems; Slit Lamps; Autorefractors; Vision Screening Devices; Ophthalmic Surgical Systems.
Cardiology Equipment
ECG / EKG Devices; Holter Monitors; Cardiac Monitoring Systems; Ultrasound / Echocardiography Systems; Stress Test Systems; Defibrillators; Cardiac Diagnostic Equipment.
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
