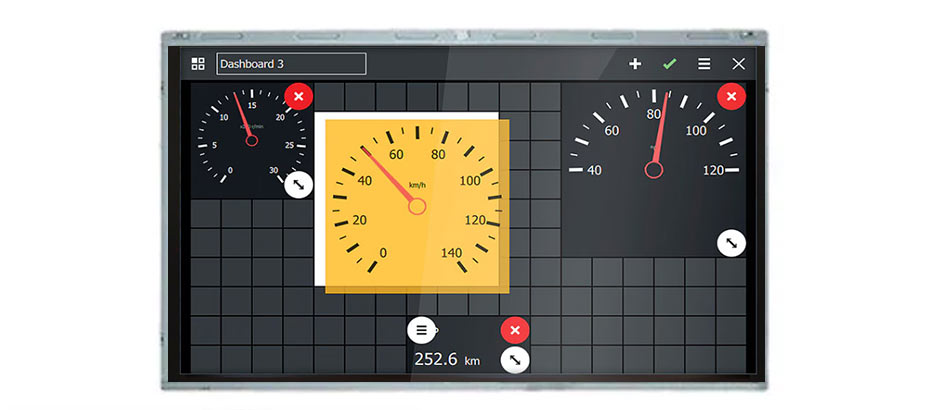

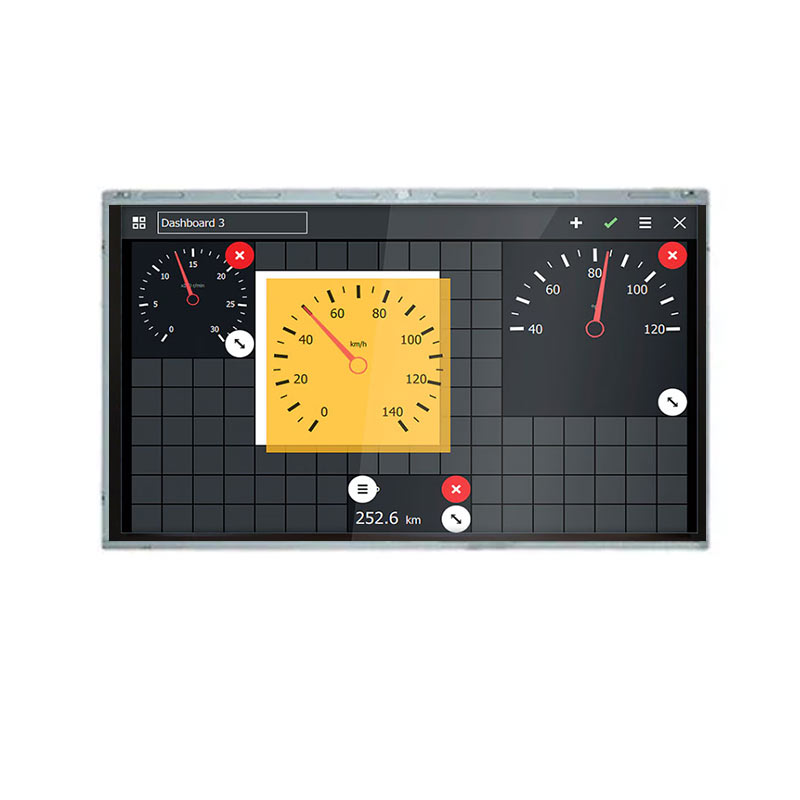

DQ382FHM-N10 BOE 38.2 Inch Reflective Display 1920x1080 LVDS Sunlight Readable Display

DQ382FHM-N10 Overview

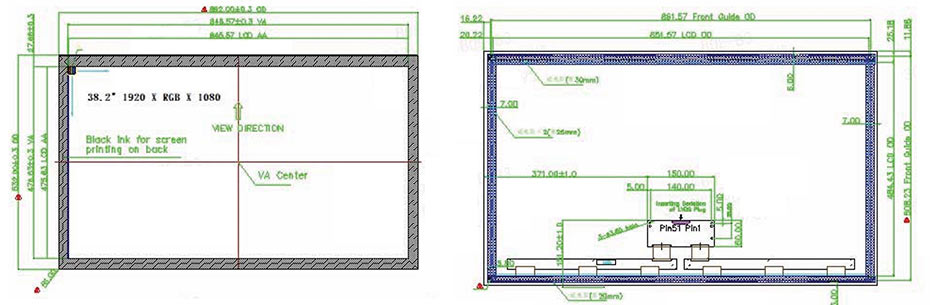

DQ382FHM-N10 supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 845.57(W)×475.63(H) mm, outline size of 892(W)×532(H) mm, with surface treament of Antiglare (Haze 3%), net weight of 7.40/7.80Kgs (Typ./Max.). As a TN, Normally White, Reflective LCM product, DQ382FHM-N10 can provides 50 cd/m² display brightness, 20:1 (Typ.) reflective contrast ratio, 70/70/80/80 (Typ.)(CR≥2) (L/R/U/D) viewing angle . Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 18% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Front light type, external backlight driver is additionally needed. DQ382FHM-N10 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 51 pins Connector with power supply voltage of 12.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

DQ382FHM-N10 Feature
-Reflective
-Sunlight Readable
-WLED Backlight
-Matte

Screen Size: 38.2 inch
Resolution: 1920x1080
Brand: BOE
DQ382FHM-N10 BOE 38.2 Inch Reflective TFT LCD Display.

DQ382FHM-N10 Application
For Industrial LCD Display.

Reflective MIP Displays Technology

Reflective MIP Displays Application

To operate in low-light conditions, RLCDs need to be paired with an efficient front light solution such as the Youritech Front Light Panel.With improved optical coupling, collimation, and attenuation, our front light solution efficiently delivers more light exactly where you need it, and efficient LEDs can be used without experiencing typical issues with diffusion and material losses. Plus, as few as one low-power LED can be used in a front light instead of the five or more LEDs needed for alternative display light guides, making our solution the most efficient front light option available today.

It means your devices can stop relying on power-hungry backlights. By reinventing light guide and front light technology, we makes it possible to fully embrace the inherent power-saving features of RLCDs – from the brightest outdoor to the darkest indoor lighting environments.
