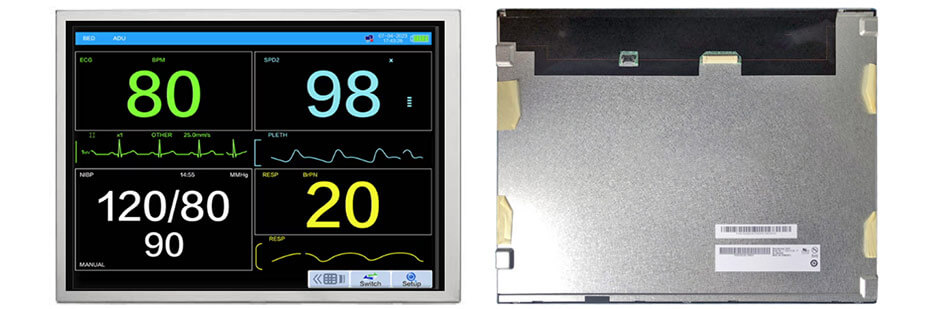

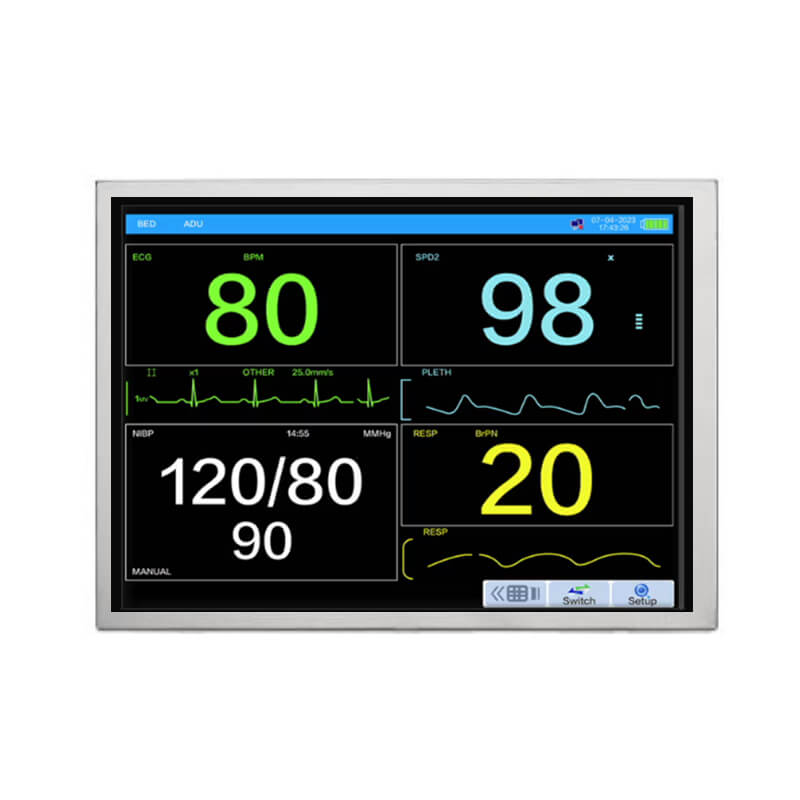

G150XAN01.0 supports display 1024(RGB)×768 (XGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 304.128(W)×228.096(H) mm, outline size of 326.5(W)×253.5(H)×9(D) mm, viewing area size of 309.9(W)×236.3(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 920g (Max.). As a AHVA, Normally Black, Transmissive LCM product, G150XAN01.0 can provides 400 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + FRC gray scale signal for each dot, thus presenting a palette of 16.2M colors, also with performance of color gamut 60% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver. G150XAN01.0 utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

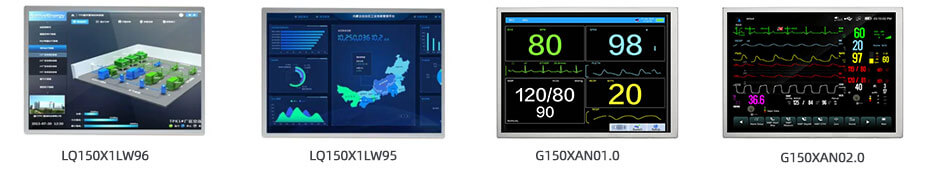

More 15 Inch Healthcare & Medical Display Solution For Reference
LQ150X1LW96 (LCM, 1024×768, LVDS, -20~70°C, 326.5×253.5mm)
LQ150X1LW95 (LCM, 1024×768, LVDS, -20~70°C, 326.5×253.5mm)
G150XAN01.0 (LCM, 1024×768, LVDS, -20~70°C, 326.5×253.5mm)
G150XAN02.0 (LCM, 1024×768, LVDS, -30~85°C, 326.5×253.5mm)
High Image Quality
–Sharp, accurate images for medical diagnostics.
High Brightness
–Excellent visibility in various lighting conditions.
Wide Viewing Angle
–IPS technology ensures clear viewing from any angle.
24/7 Reliable Operation
–Stable performance for continuous medical use.
Wide Temperature Range
–Reliable in demanding healthcare environments.
PCAP Touch Support
–Smooth, accurate touch with glove compatibility.
Low Power Consumption
–Energy-efficient for portable medical devices.
Long-Term Supply
–Stable lifecycle for medical equipment projects.
Custom Design Support
–Brightness, touch, interface, and optical bonding customization.
OEM & ODM Service
–End-to-end display solutions for healthcare applications.
