LCD above 17.3" (28")

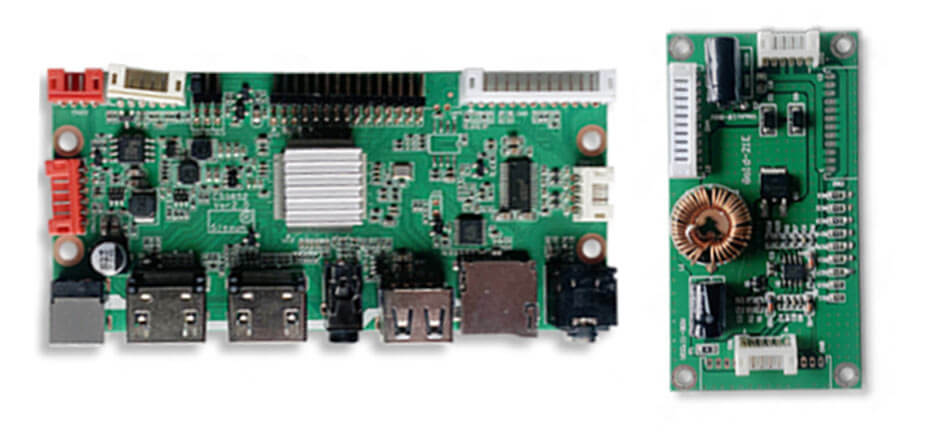

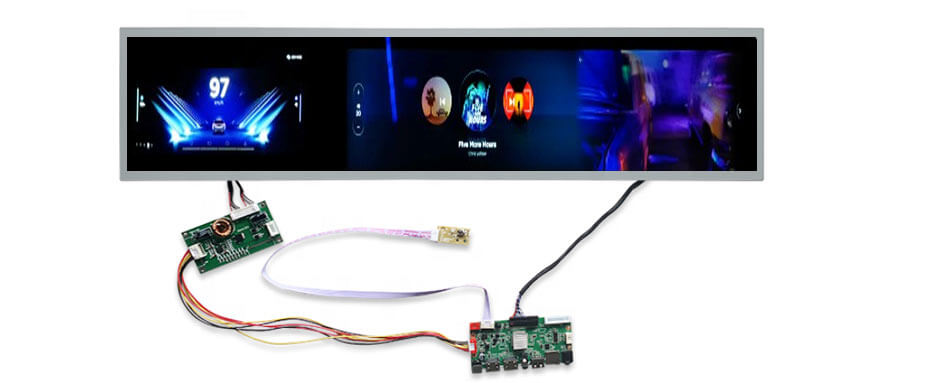

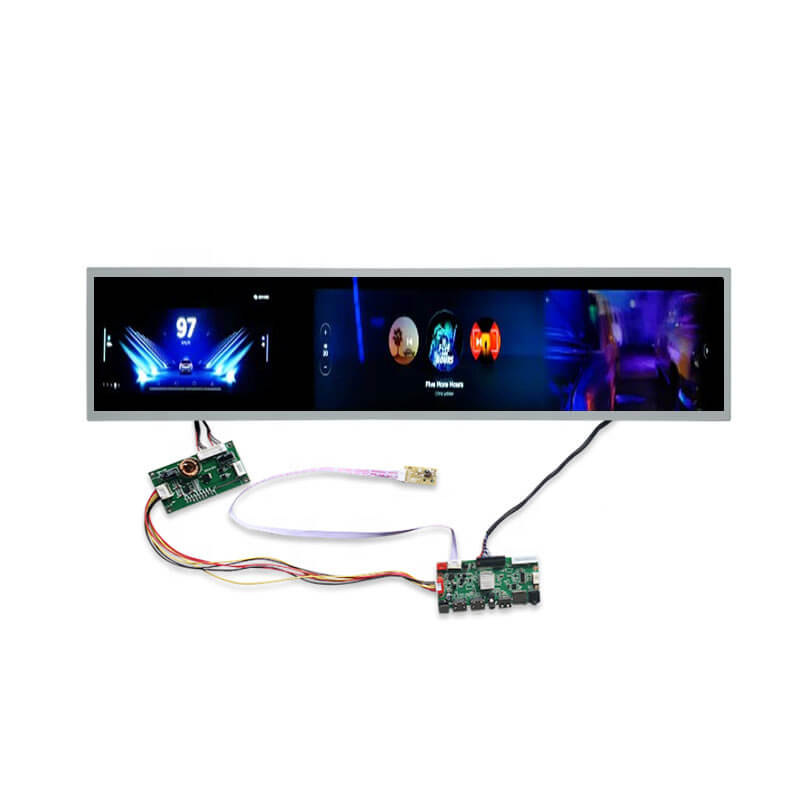

DV280FBM-NB2 BOE 28 Inch TFT LCD Display 1920x360 LVDS High Brightness 700nits Stretched Bar Display With Driver Board.

  • Part No.:DV280FBM-NB2
  • Size:28″ inch
  • Resolution:1920x360
  • Panel Interface:LVDS (1 ch,8-bit)
  • Display mode:ADS,Transmissive
  • Outline Dimension:732x165x17.3mm

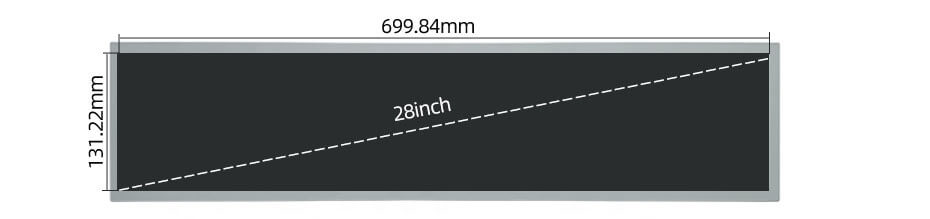

  • Active Area:699.84x131.22mm
  • Viewing Angle L/R/U/D:89/89/89/89 (Typ.)
  • Brightness(cd/m2):700cd/m²(Typ.)
  • Operation / Storage Temp:0~50°C / -20~60°C
  • Touch:no



28 Inch LCD Display Overview

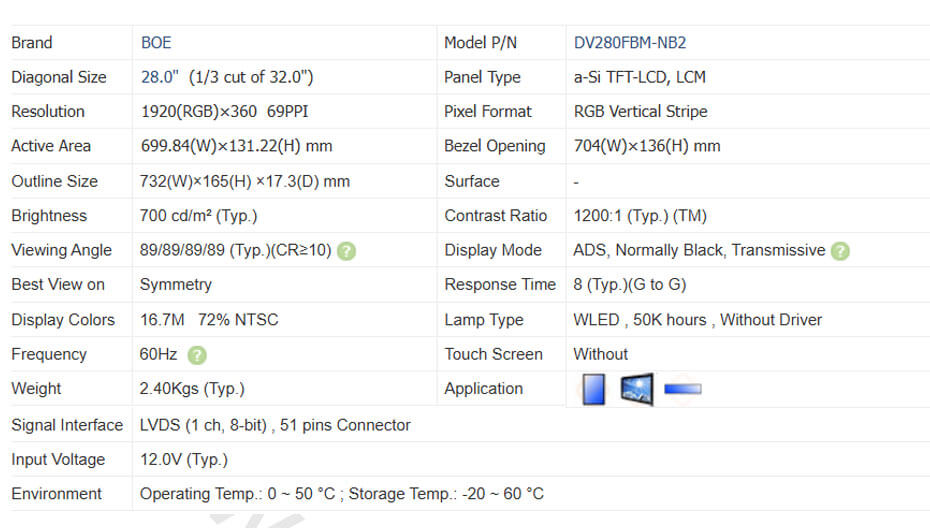

DV280FBM-NB2 is a 28.0 inch diagonal a-Si TFT-LCD display panel with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.0G (9.8 m/s²). It's general features are summarized by Panelook in the following: Hight Brightness, WLED Backlight, Life ≥ 50K hours, Bar Display , 1/3 cut of 31.5".

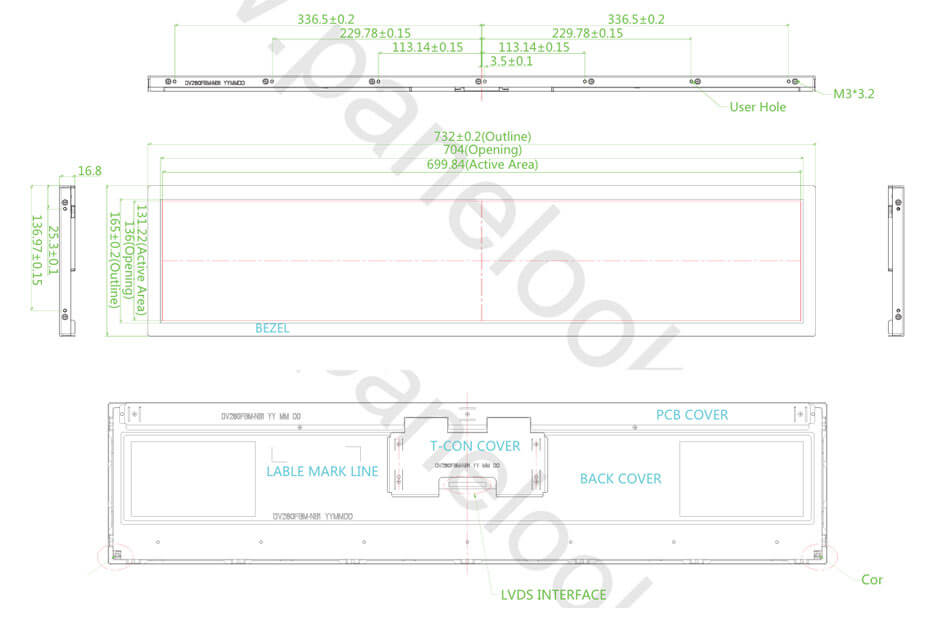

28 Inch LCD Display Drawing
