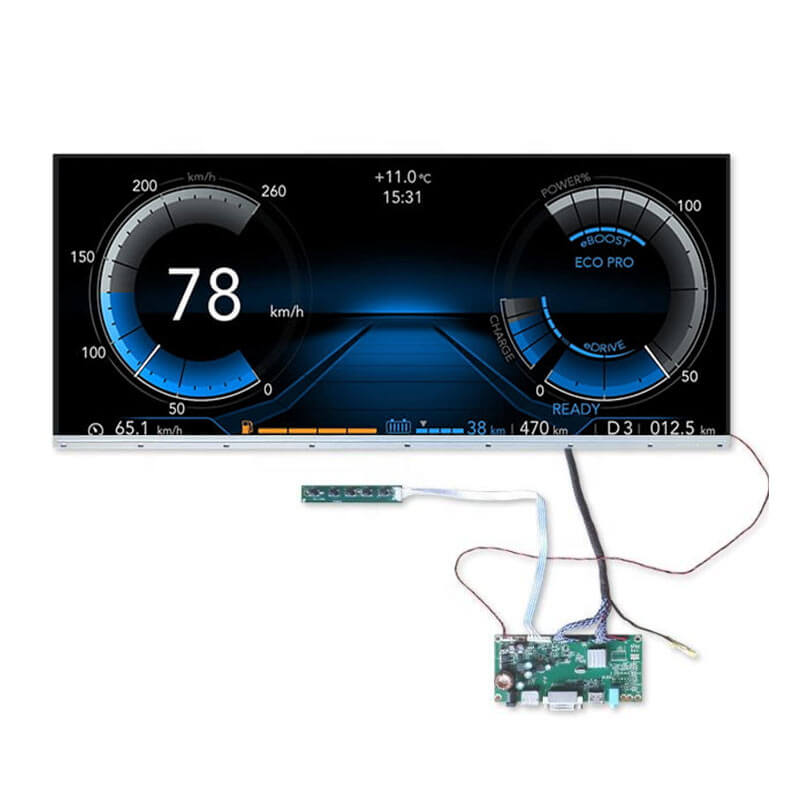

LM290WW2-SSC1 LG 29 Inch TFT LCD Display 2560x1080 LVDS LCD Panel With Driver Board

29 Inch LCD Display Overview

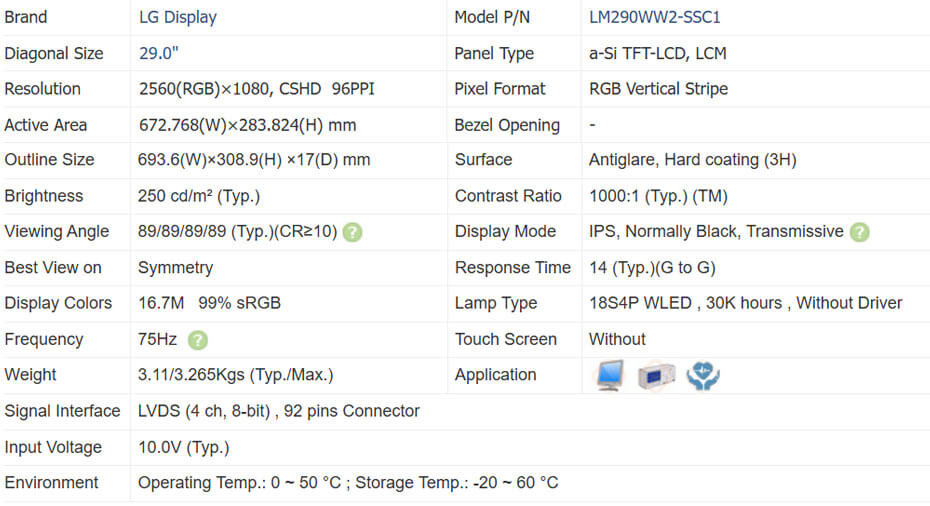

 LM290WW2-SSC1 is a 29.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen. LM290WW2-SSC1 supports display 2560(RGB)×1080 (CSHD) with aspect ratio of 21:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 672.768(W)×283.824(H) mm, outline size of 693.6(W)×308.9(H)×17(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 3.11/3.265Kgs (Typ./Max.). As a IPS, Normally Black, Transmissive LCM product, LM290WW2-SSC1 can provides 250 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 99% (sRGB). This product adopted 18S4P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, external backlight driver is additionally needed. LM290WW2-SSC1 utilizes LVDS (4 ch, 8-bit) as it's signal inputting systerm, which connected by 92 pins Connector with power supply voltage of 10.0V (Typ.). It's typical vertical frame rate (Fv) is 75Hz.

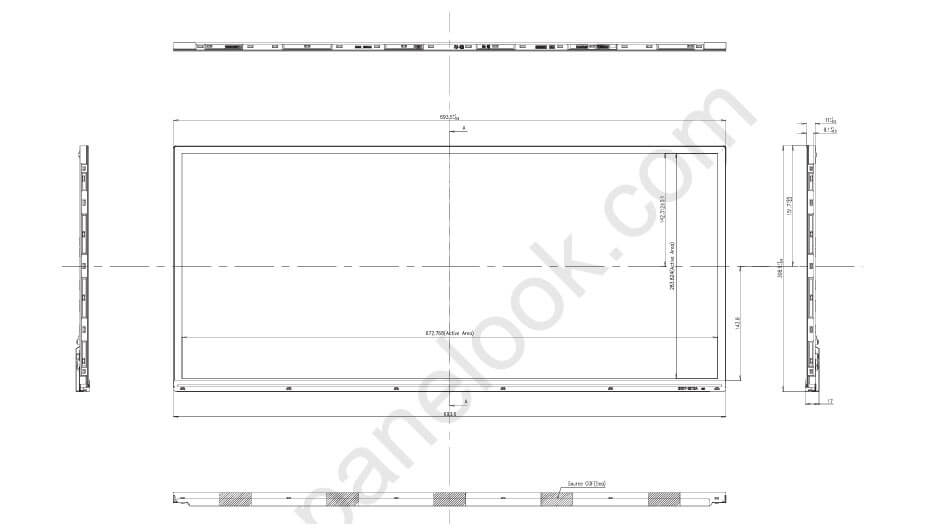

29 Inch LCD Display Drawing
