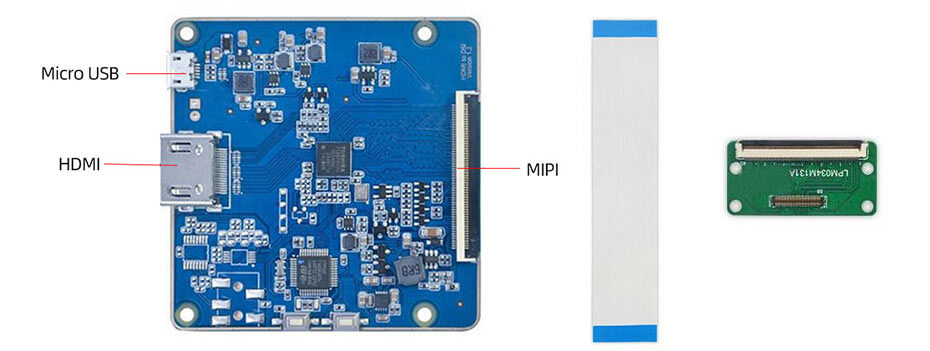

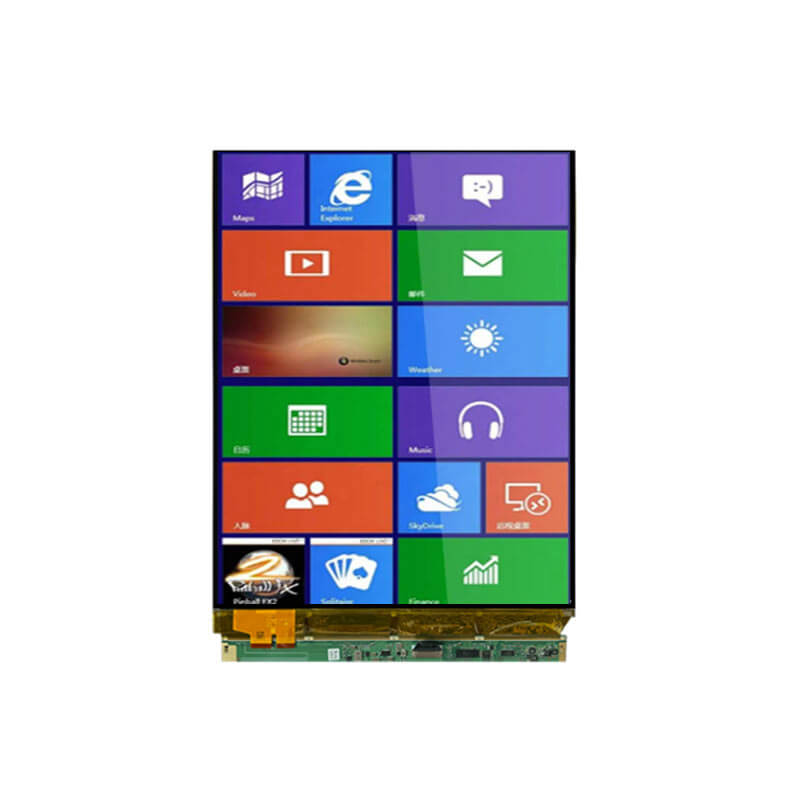

AMSA70FD01-0 Samsung 17 Inch AMOLED Display 2880x1620 Wide Temperature eDP High Brightness 1000nits OLED Display With Driver Board.

17 Inch AMOLED Display Overview

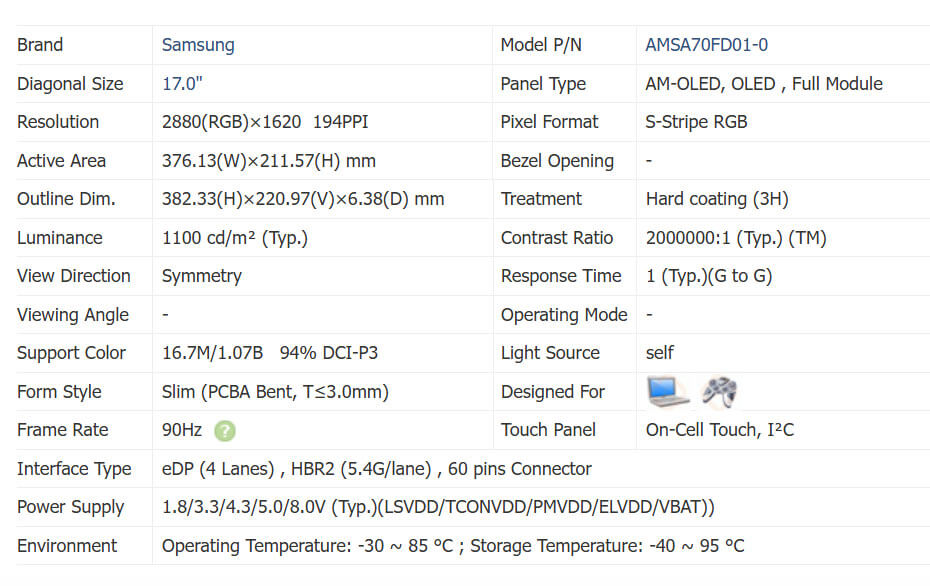

AMSA70FD01-0 is a 17.0 inch diagonal AM-OLED display screen product from Samsung, it self emiting, touchscreen On-Cell Touch.AMSA70FD01-0 supports display 2880(RGB)×1620 with aspect ratio of 16:9 (W:H), whose pixels are arranged in S-Stripe RGB.It features active area of 376.13(W)×211.57(H) mm, outline size of 382.33(W)×220.97(H)×6.38(D) mm, with surface treament of Hard coating (3H), net weight of 372g (Typ.), shape stype of Slim (PCBA Bent, T≤3.0mm). AMSA70FD01-0 can provides 1100 cd/m² display brightness 2000000:1 transimissive contrast ratio, best view direction on Symmetry , and response time of 1 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M/1.07B colors, also with performance of color gamut 94% (DCI-P3). This product emiting itself . AMSA70FD01-0 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 60 pins Connector with power supply voltage of 1.8/3.3/4.3/5.0/8.0V (Typ.)(LSVDD/TCONVDD/PMVDD/ELVDD/VBAT)). It's typical vertical frame rate (Fv) is 90Hz.

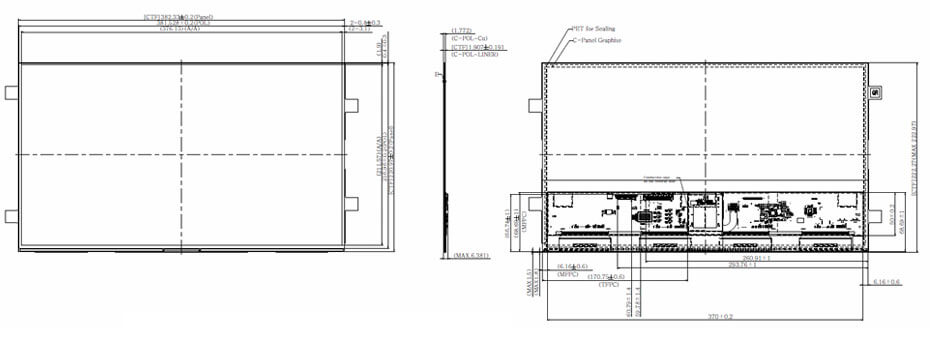

17 Inch AMOLED Display Drawing
