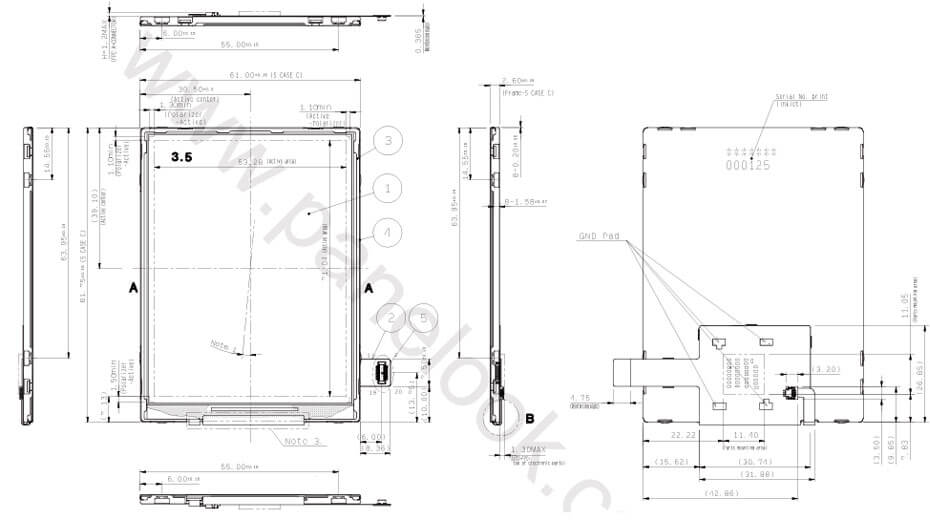

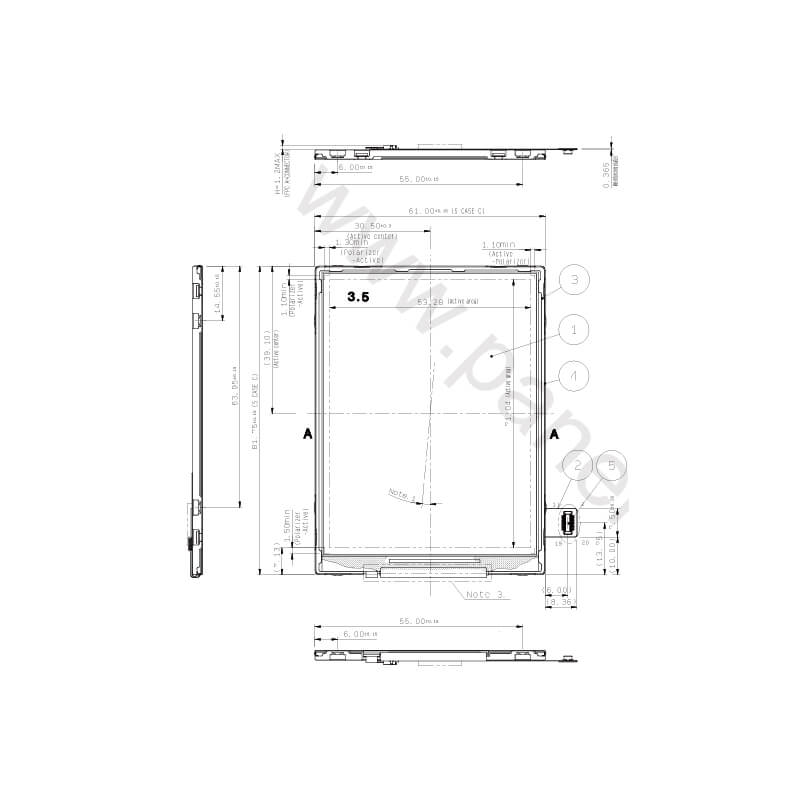

COM35H3R29ULC supports display 480(RGB)×640 (VGA) with aspect ratio of 3:4 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 53.28(W)×71.04(H) mm, outline size of 61(W)×81.75(H)×2.75(D) mm, with surface treament of Hard coating (2H), net weight of 27.7g. As a VA, Normally Black, Transflective LCM product, COM35H3R29ULC can provides 900 cd/m² display brightness 900:1 transimissive contrast ratio, 2:1 (Typ.) reflective contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 40/60 (Max.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 6S1P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 10K hours, external backlight driver is additionally needed. COM35H3R29ULC utilizes MIPI (2 data lanes) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 1.8/2.8V (Typ.)(VCCIO/VDD). It's typical vertical frame rate (Fv) is 60Hz.
