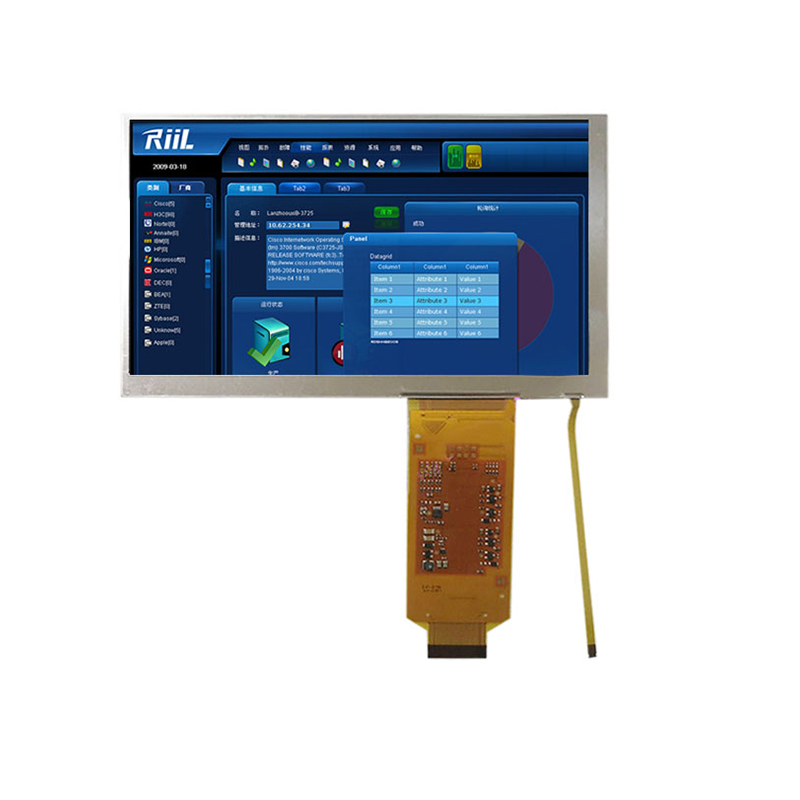

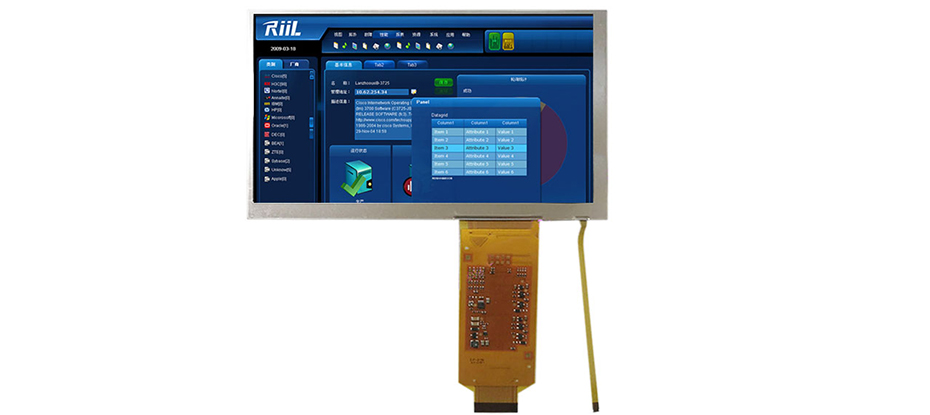

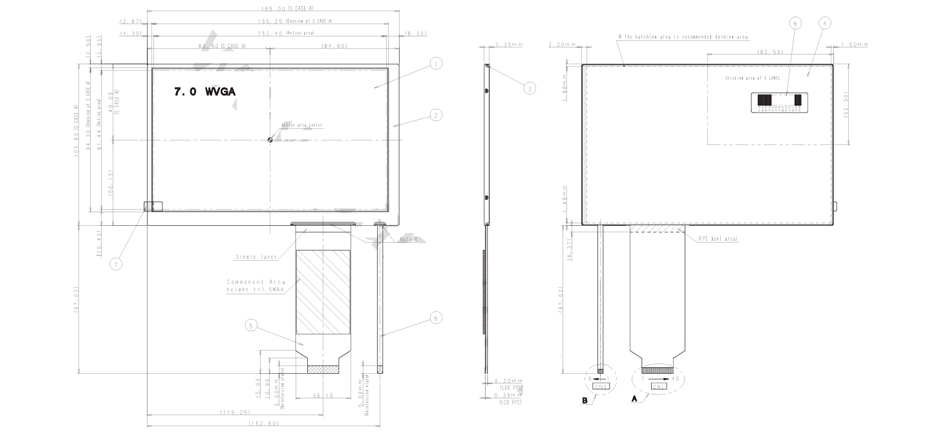

COM70T7M07ZLC is a 7.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen. COM70T7M07ZLC supports display 800(RGB)×480 (WVGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 152.4(W)×91.44(H) mm, outline size of 165(W)×105.8(H)×3.65(D) mm, viewing area size of 155.25(W)×94.3(H) mm, with surface treament of Hard coating (3H), net weight of 135g. As a TN, Normally White, Transmissive LCM product, COM70T7M07ZLC can provides 450 cd/m² display brightness 400:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 40/60 (Max.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 8S3P WLED as it's backlight systerm which was placed as Edge light type (Bottom side), external backlight driver is additionally needed. COM70T7M07ZLC utilizes Parallel RGB (1 ch, 6-bit) as it's signal inputting systerm, which connected by 40 pins FPC with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
-Sunlight Readable Low PowerConsumption
-Supply Long-term Stable
-High-Mix/Low-Volume Production
-Customer-oriented Support System
-Customized Product Support
