COM57H5N28XTC 5.7 Inch Transflective Display 640x480 Parallel RGB Sunlight Readable LCD Display With 4-wire Resistive Touch

5.7 Inch Transflective LCD Display Overview

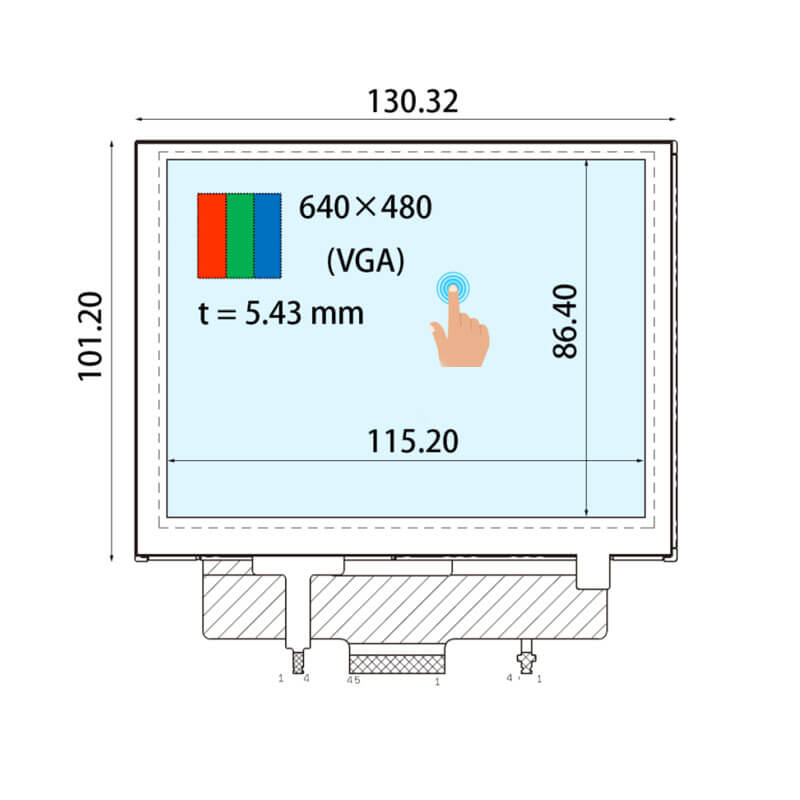

COM57H5N28XTC supports display 640(RGB)×480 (VGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 115.2(W)×86.4(H) mm, outline size of 130.32(W)×101.2(H)×5.93(D) mm, viewing area size of 118.7(W)×89.9(H) mm, with surface treament of Clear, Hard coating (3H), net weight of 121g (Typ.). As a TN, Normally White, Transflective LCM product, COM57H5N28XTC can provides 450 cd/m² display brightness 600:1 transimissive contrast ratio, 2.3:1 (Typ.) reflective contrast ratio, 80/80/60/65 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 100 (Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 50% (NTSC). This product adopted 9S2P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, external backlight driver is additionally needed. COM57H5N28XTC utilizes Parallel RGB (1 ch, 6-bit) as it's signal inputting systerm, which connected by 45 pins FPC with power supply voltage of 3.3/12.0/21.0/-7.0V (Typ.)(VDD/AVDD/VGH/VGL). It's typical vertical frame rate (Fv) is 60Hz.

More 5.7 Inch Transflective LCD Display For Reference
COM57H5N27XLC (640x480, TTL, 550nits, -20~70°C, 130.32x101.2mm)
COM57H5N28XTC (640x480, TTL, 450nits, -20~70°C, 130.32x101.2mm, 4w-RTP)
COM57H5N32XSC (640x480, TTL, 440nits, -20~70°C, 130.32x101.2mm)
COM57H5N33XRC (640x480, TTL, 350nits, -20~70°C, 4w-RTP)
