COM43H4P44ULC 4.3 Inch Transflective Display 480x272 Parallel RGB Sunlight Readable LCD Display For Handheld PDA

4.3 Inch Transflective LCD Display Overview

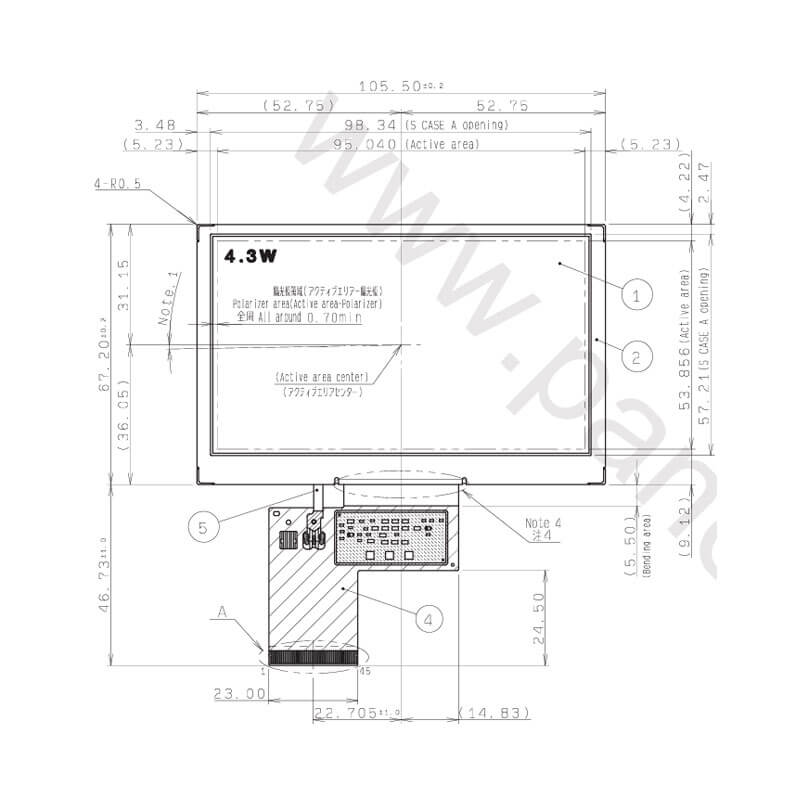

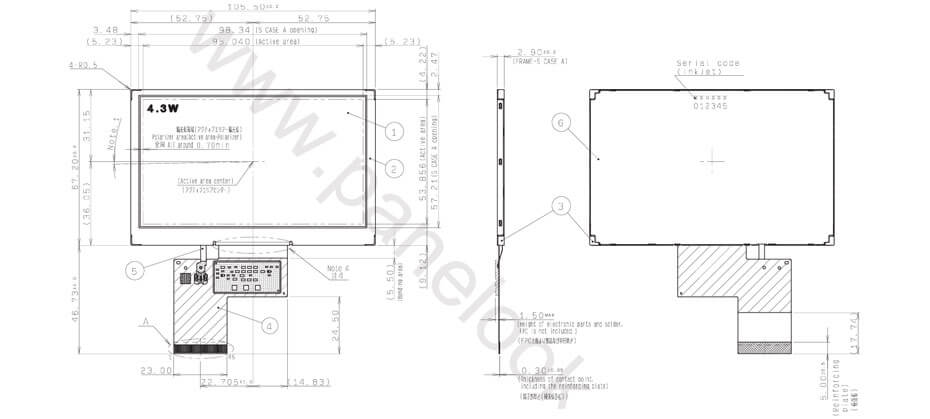

COM43H4P44ULC supports display 480×272(RGB) (WQVGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Horizontal Stripe. It features active area of 95.04(W)×53.856(H) mm, outline size of 105.5(W)×67.2(H)×3.1(D) mm, viewing area size of 98.34(W)×57.21(H) mm, net weight of TBD. As a VA, Normally Black, Transflective LCM product, COM43H4P44ULC can provides 450 cd/m² display brightness 800:1 transimissive contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of TBD ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors. This product adopted 9S1P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, external backlight driver is additionally needed. COM43H4P44ULC utilizes Parallel RGB (1 ch, 8-bit) as it's signal inputting systerm, which connected by 45 pins FPC with power supply voltage of 3.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

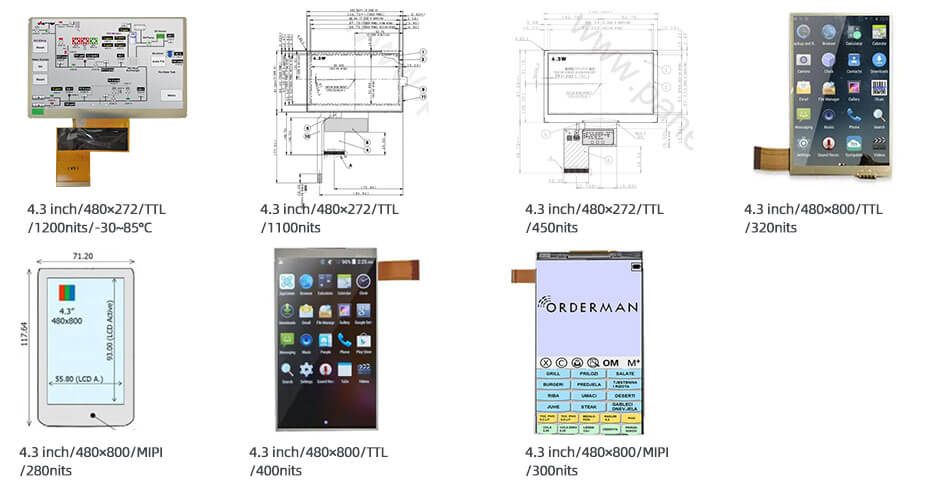

More 4.3 Inch Transflective LCD Display For Reference
COM43H4N44ULC (480x272, TTL, 1200nits, -30~85°C, 105.5x67.2mm)
COM43H4P09UTC (480x272, TTL, 1100nits, -20~70°C, 105.5x67.2mm, 4w-RTP)
COM43H4P44ULC (480x272, TTL, 450nits, -20~70°C, 105.5x67.2mm)
COM43H4N91UTC (480x800, TTL, 320nits, -20~70°C, 63x105.3mm, 4w-RTP)
COM43H4N98UTC (480x800, MIPI, 280nits, -20~70°C, 71.2x117.64mm, CTP(Optical))
COM43H4N90ULC (480x800, TTL, 400nits, -20~70°C, 63x105.3mm)
COM43H4N66ULC (480x800, MIPI, 300nits, -20~70°C, 61.2x103mm)
