COM43H4N03XTC Ortustech 4.3 Inch Transflective Display 480×272 Parallel RGB TFT LCD Display With 4-wire Resistive Touch

COM43H4N03XTC Ortustech 4.3 Inch Transflective Display 480×272 Parallel RGB TFT LCD Display With 4-wire Resistive Touch Overview

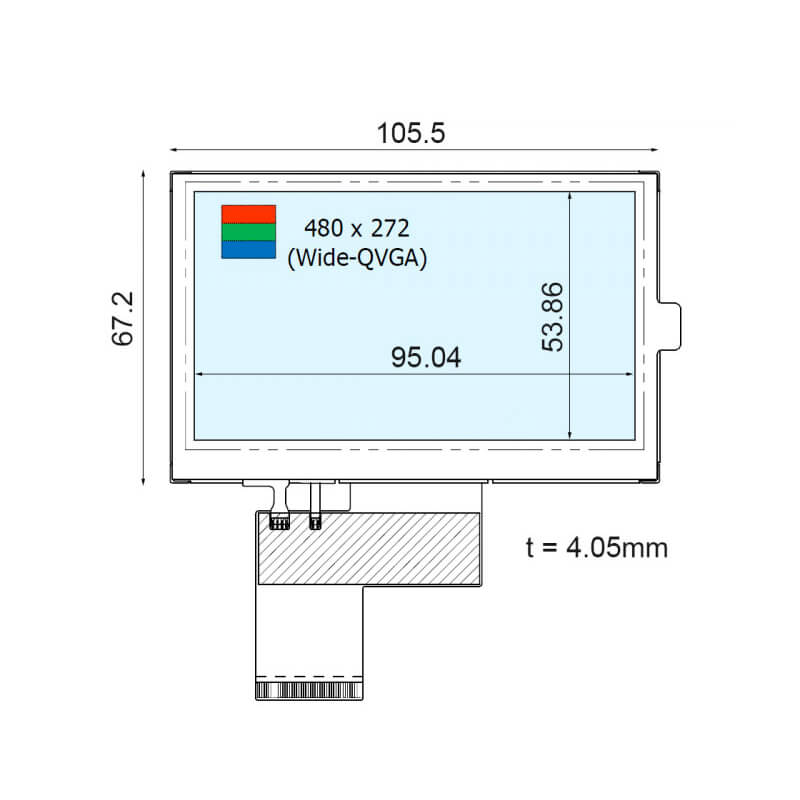

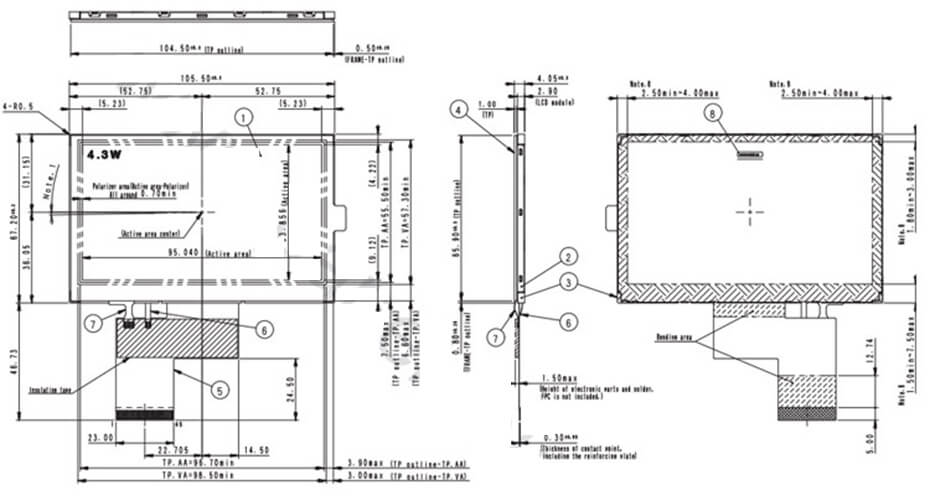

COM43H4N03XTC is a 4.3 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, touchscreen 4-wire Resistive Touch. Based on datasheet with version of Ver1.0 which was released out on 6 10 2015, COM43H4N03XTC supports display 480(RGB)×272 (WQVGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 95.04(W)×53.856(H) mm, outline size of 105.5(W)×67.2(H)×4.25(D) mm, with surface treament of Hard coating (3H), net weight of 54.5g. As a TN, Normally White, Transflective LCM product, COM43H4N03XTC can provides 350 cd/m² display brightness 400:1 transimissive contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle , and response time of 40/60 (Max.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors. This product adopted 9S1P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, external backlight driver is additionally needed. COM43H4N03XTC utilizes Parallel RGB (1 ch, 8-bit) as it's signal inputting systerm, which connected by 45 pins FPC with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

Ortustech Transflective Display Advantage

-Sunlight Readable Low PowerConsumption
-Supply Long-term Stable
-High-Mix/Low-Volume Production
-Customer-oriented Support System
-Customized Product Support

Ortustech Transflective Display Application

Ortustech Transflective Display Production and Manufacturing
