COM27H2R06ULC 2.7 Inch Transflective Display IPS 240x320 Sunlight Readable 3/4-wire SPI LCD Display For Handheld PDA

2.7 Inch Transflective LCD Display Overview

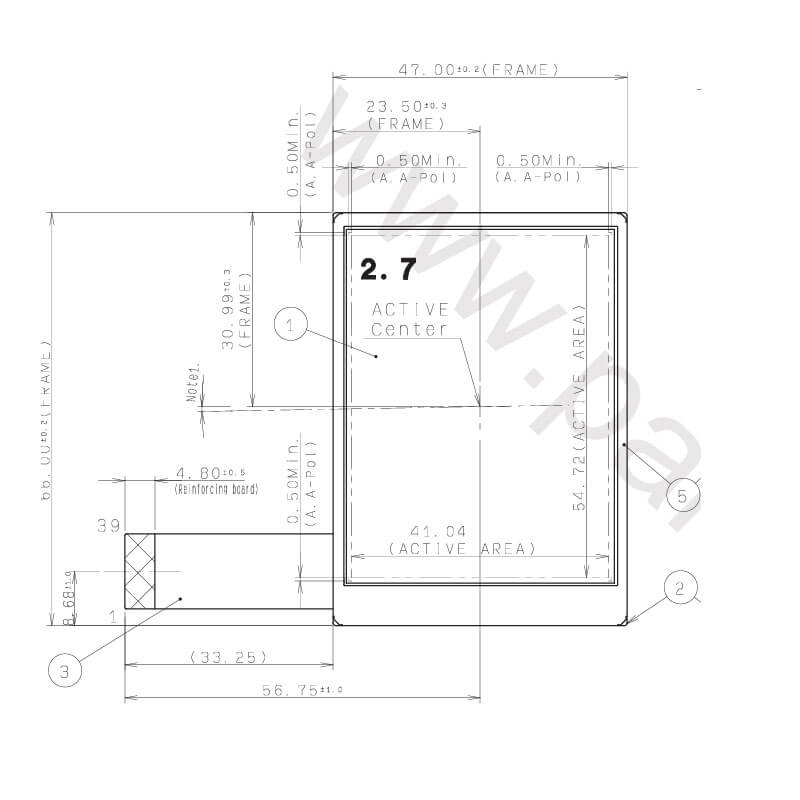

COM27H2R06ULC is a 2.7 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen.COM27H2R06ULC supports display 240(RGB)×320 (QVGA) with aspect ratio of 3:4 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 41.04(W)×54.72(H) mm, outline size of 47(W)×66(H)×4.64(D) mm, with surface treament of Hard coating (2H), net weight of 18.0g (Typ.). As a VA, Normally Black, Transflective LCM product, COM27H2R06ULC can provides 350 cd/m² display brightness 800:1 transimissive contrast ratio, 2:1 (Typ.) reflective contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 100 (Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 50% (NTSC). This product adopted 3S1P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, external backlight driver is additionally needed. COM27H2R06ULC utilizes 3/4-wire SPI as it's signal inputting systerm, which connected by 39 pins FPC with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

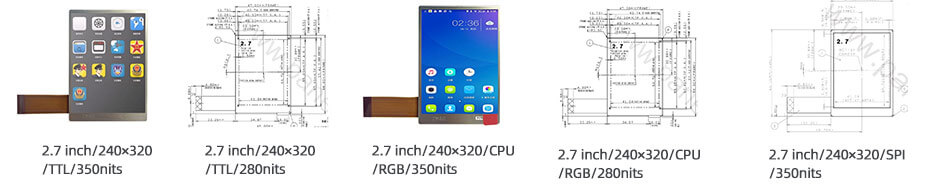

More 2.7 Inch Transflective LCD Display For Reference
COM27H2P86ULC (240x320, TTL, 350nits, -20~70°C, 47x66mm)
COM27H2P88UTC (240x320, TTL, 280nits, -20~70°C, 47x66mm, 4w-RTP)
COM27H2P90ULC (240x320, CPU/RGB, 350nits, -20~70°C, 47x66mm)
COM27H2P92UTC (240x320, CPU/RGB, 280nits, -20~70°C, 47x66mm, 4w-RTP)
COM27H2R06ULC (240x320, SPI, 350nits, -20~70°C, 47x66mm)
