LCD above 17.3" (21.3")

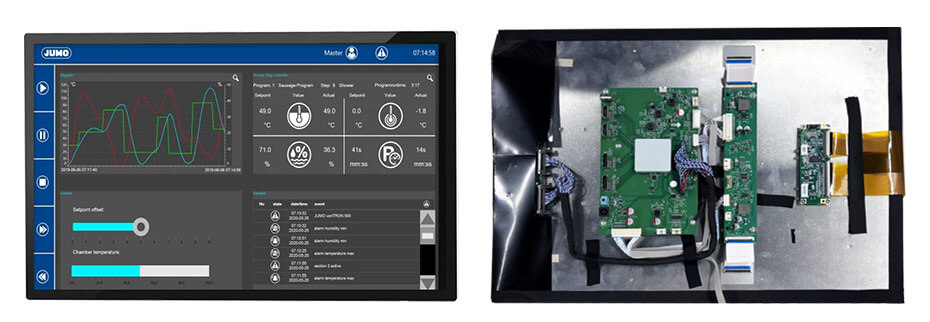

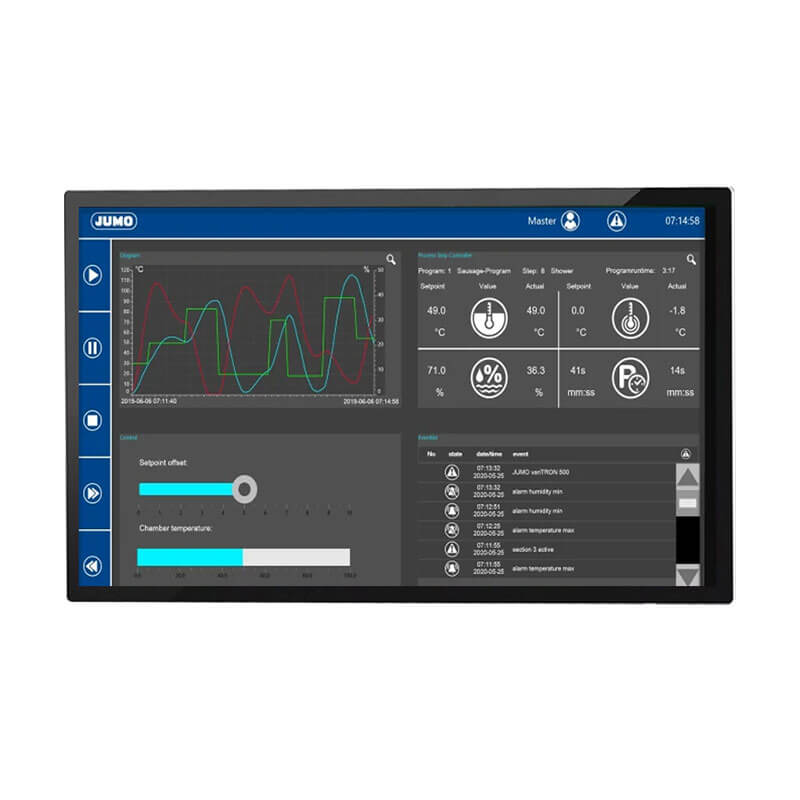

21.3 Inch Transflective Display 1536x2048 LVDS Sunlight Readable LCD Display With Capacitive Touch

Part No.:ET213TR01-GXT
Size:21.3″ inch
Resolution:1536x2048
Panel Interface:LVDS
Display mode:Transflective
Outline Dimension:470x350mm
Active Area:324.864x433.152mm
Viewing Angle L/R/U/D:89/89/89/89
Brightness（cd/m2）:1500(Min.)
Operation / Storage Temp:0~50°C / -20~60°C
Touch:no

21.3 Inch Transflective LCD Display Overview
The ET080TR01-VT is an 8-inch transflective LCD display designed for handheld PDAs, featuring sunlight-readable capability and capacitive touch support. It delivers a resolution of 1200×1920 through a 4-lane MIPI interface. The display has an active area of 108×172.8 mm within an outline dimension of 132.6×202.6×4.98 mm. It offers an all-direction (“All O’clock”) viewing angle, typical brightness of 369 cd/m², and operates in temperatures from –20 °C to 70 °C, with storage from –30 °C to 80 °C.
