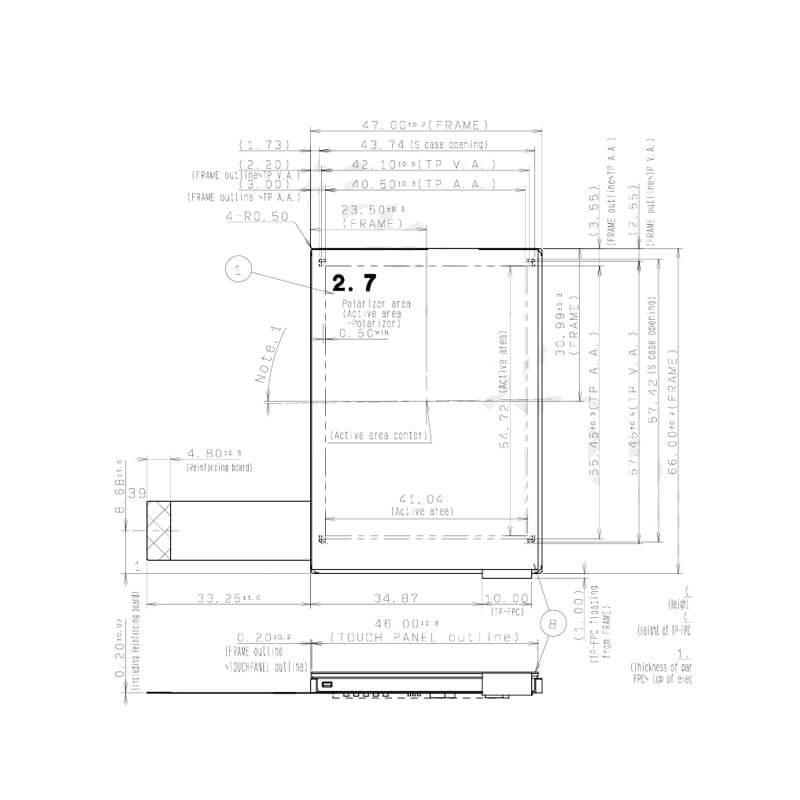

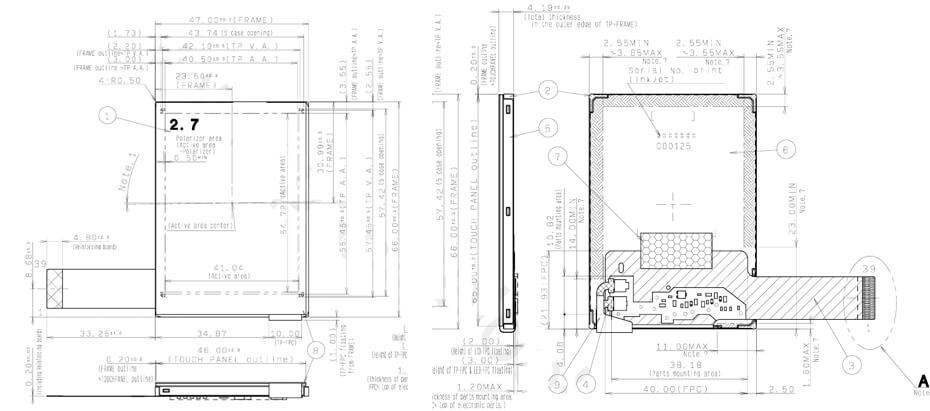

COM27H2N76XTC is a 2.7 inch diagonal a-Si TFT-LCD display screen product from Ortustech, with a built-in WLED backlight, without backlight driver, touchscreen 4-wire Resistive Touch. COM27H2N76XTC supports display 240(RGB)×320 (QVGA) with aspect ratio of 3:4 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 41.04(W)×54.72(H) mm, outline size of 47(W)×66(H)×5.4(D) mm, viewing area size of 43.74(W)×57.42(H) mm, with surface treament of Hard coating (3H), net weight of 25.0g (Typ.). As a TN, Normally White, Transflective LCM product, COM27H2N76XTC can provides 340 cd/m² display brightness 400:1 transimissive contrast ratio, 2.5:1 (Typ.) reflective contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle , and response time of 40/60 (Max.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 3S1P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, external backlight driver is additionally needed. COM27H2N76XTC utilizes CPU as it's signal inputting systerm, which connected by 39 pins FPC with power supply voltage of 2.7/2.7V (Typ.)(VCI/IOVCC).
-Sunlight Readable Low PowerConsumption
-Supply Long-term Stable
-High-Mix/Low-Volume Production
-Customer-oriented Support System
-Customized Product Support
