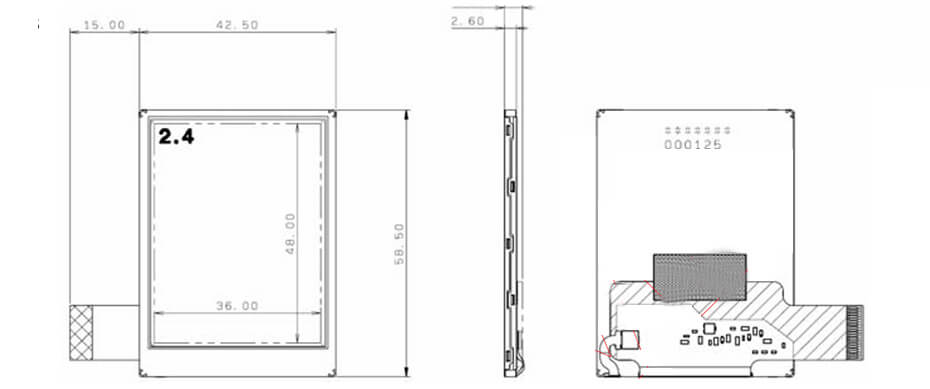

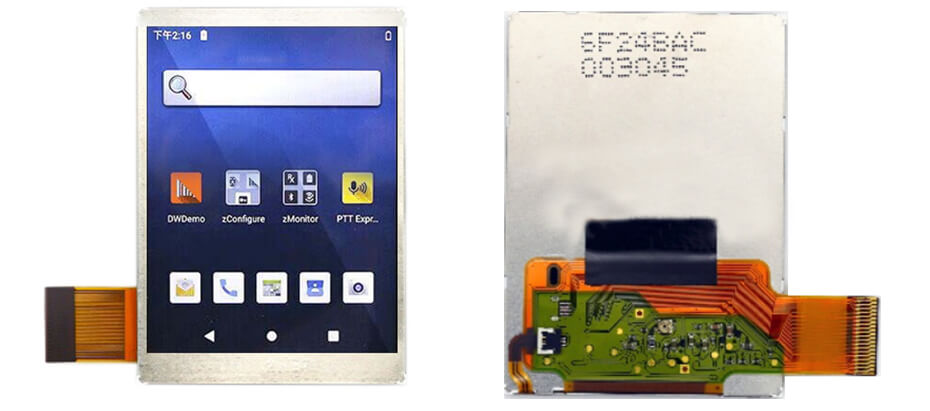

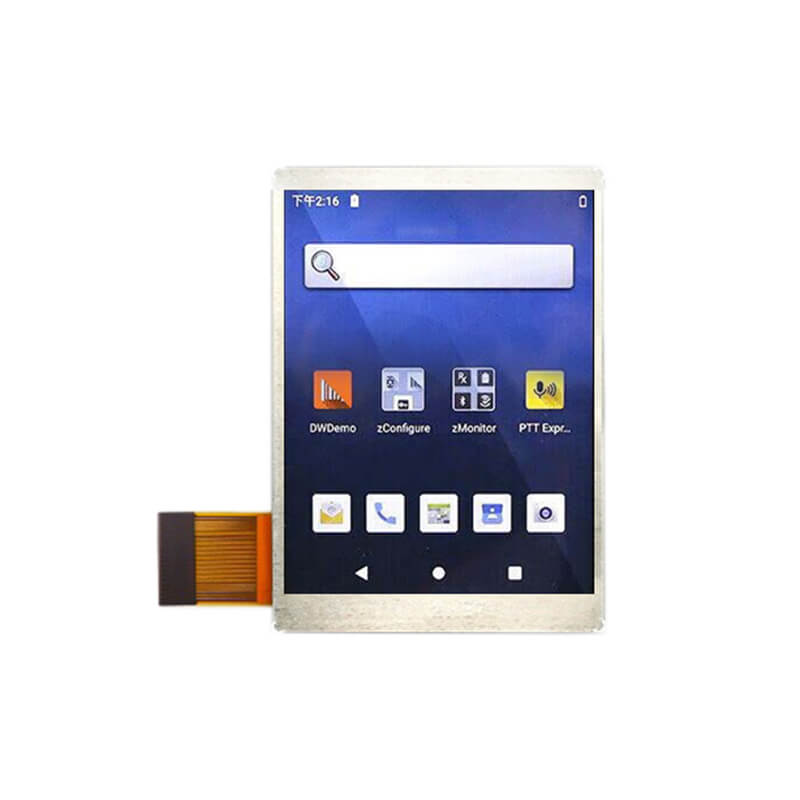

COM24H2N57XLC is a 2.4 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen. COM24H2N57XLC supports display 240(RGB)×320 (QVGA) with aspect ratio of 3:4 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 36(W)×48(H) mm, outline size of 42.5(W)×58.5(H)×4(D) mm, with surface treament of Hard coating (3H), net weight of 13.6g (Typ.). As a TN, Normally White, Transflective LCM product, COM24H2N57XLC can provides 300 cd/m² display brightness 400:1 transimissive contrast ratio, 8.5:1 (Typ.) reflective contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle , and response time of 40/60 (Max.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 2S1P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, external backlight driver is additionally needed. COM24H2N57XLC utilizes CPU as it's signal inputting systerm, which connected by 39 pins FPC with power supply voltage of 2.7V (Typ.)(VCI).
-Sunlight Readable Low PowerConsumption
-Supply Long-term Stable
-High-Mix/Low-Volume Production
-Customer-oriented Support System
-Customized Product Support
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
