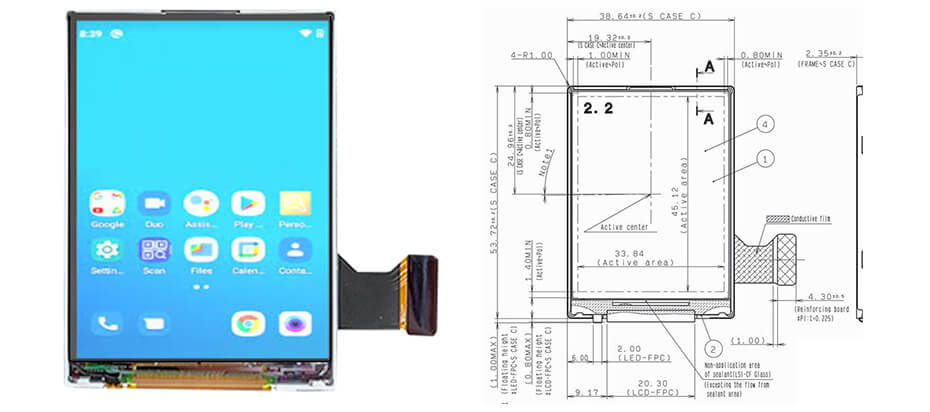

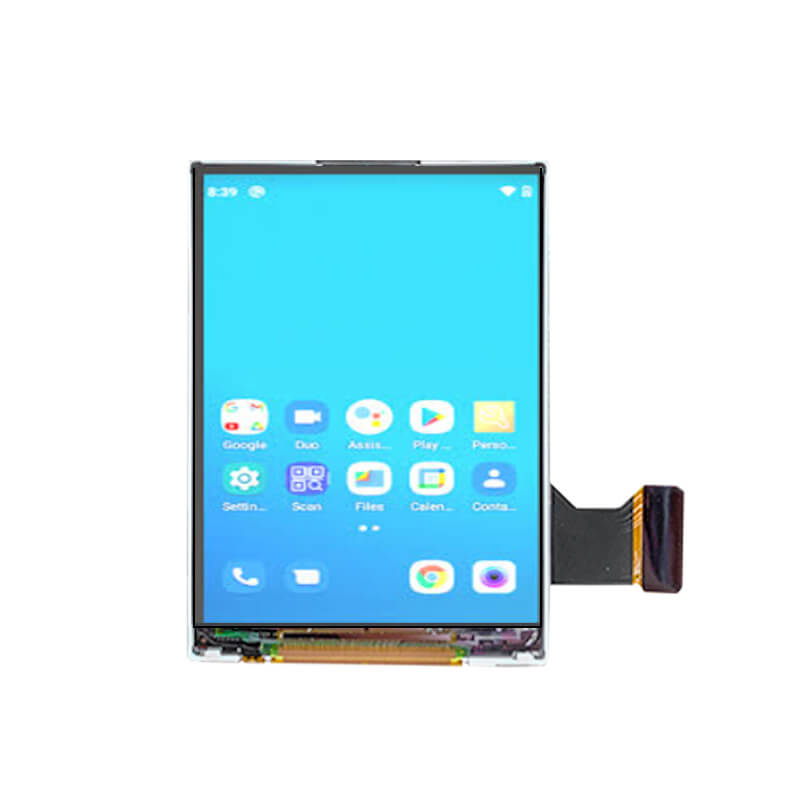

COM22H2P69ULC is a 2.2 inch diagonal a-Si TFT-LCD display screen product from Ortustech, with a built-in WLED backlight, without backlight driver, without touch screen.COM22H2P69ULC supports display 240(RGB)×320 (QVGA) with aspect ratio of 3:4 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 33.84(W)×45.12(H) mm, outline size of 38.64(W)×53.72(H)×3.55(D) mm, with surface treament of Hard coating (3H), net weight of 11.0g. As a VA, Normally Black, Transflective LCM product, COM22H2P69ULC can provides 400 cd/m² display brightness 800:1 transimissive contrast ratio, 3.5:1 (Typ.) reflective contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 60/40 (Max.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 35% (NTSC). This product adopted 3S1P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, external backlight driver is additionally needed. COM22H2P69ULC utilizes CPU as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 2.8/2.8V (Typ.)(IOVCC/VCI).
