10.1 Inch Transflective LCD Display Overview

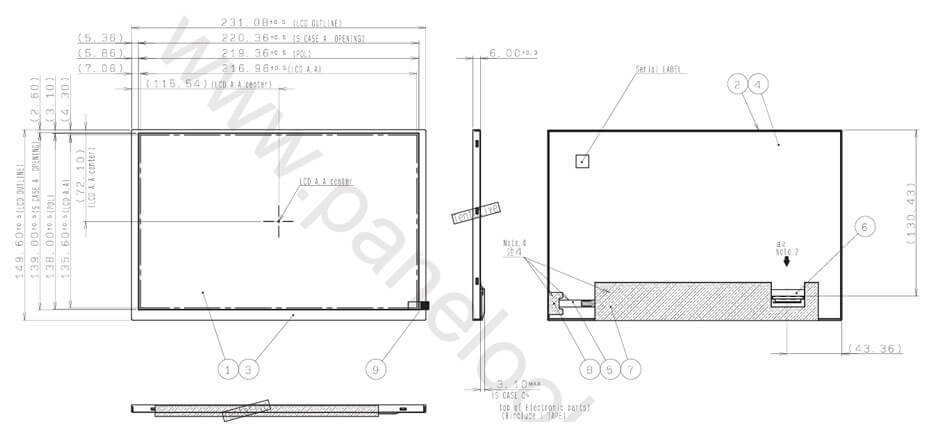

COM101H9M36FLC supports display 1280(RGB)×800 (WXGA) with aspect ratio of 16:10 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 216.96(W)×135.6(H) mm, outline size of 231.08(W)×149.6(H)×9.4(D) mm, viewing area size of 220.36(W)×139(H) mm, net weight of TBD. As a FFS, Normally Black, Transflective LCM product, COM101H9M36FLC can provides 1000 cd/m² display brightness 1000:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry . Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 8S6P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 70K hours, external backlight driver is additionally needed. COM101H9M36FLC utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 2.5/8.2V (Typ.)(VDD/AVDD). It's typical vertical frame rate (Fv) is 60Hz.
More 10.1 Inch Transflective LCD Display For Reference
HSD101JFW1-C11 (1024x600, LVDS, 500nits, -30~85°C, 235x143mm)
COM101H9M36FLC (1280x800, LVDS, 1000nits, -30~85°C, 231.08x149.6mm)
