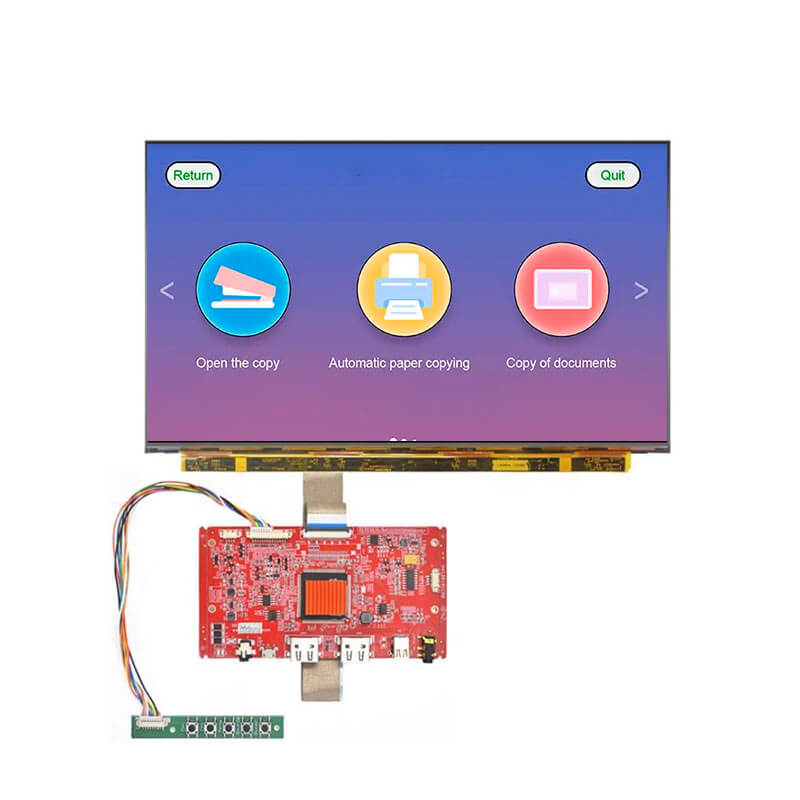

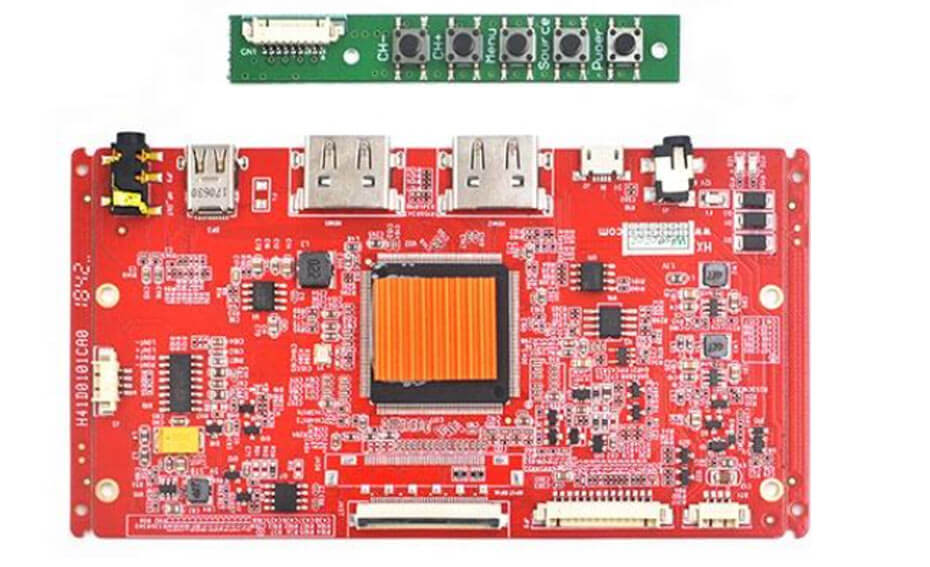

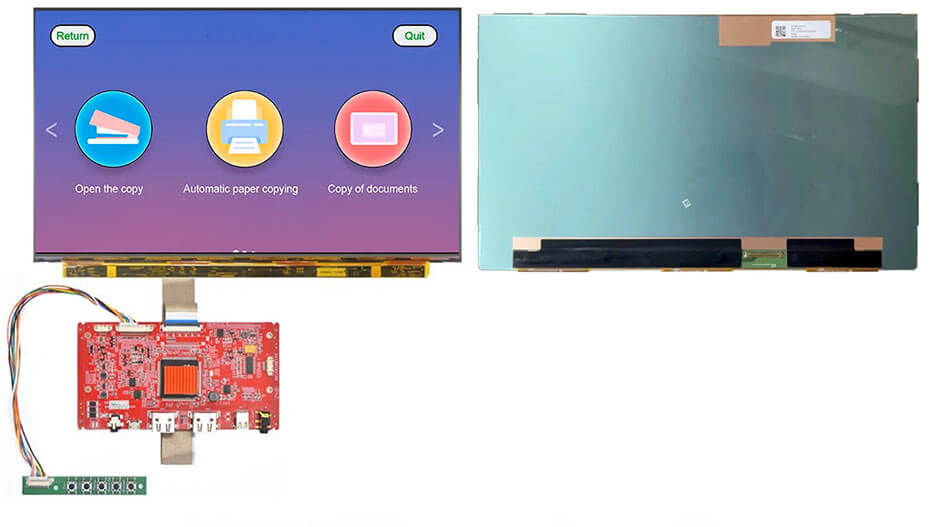

ATNA33TP10 Samsung 13.3 Inch AMOLED Display 3840x2160 eDP OLED Display With Driver Board.

13.3 Inch LCD Display Overview

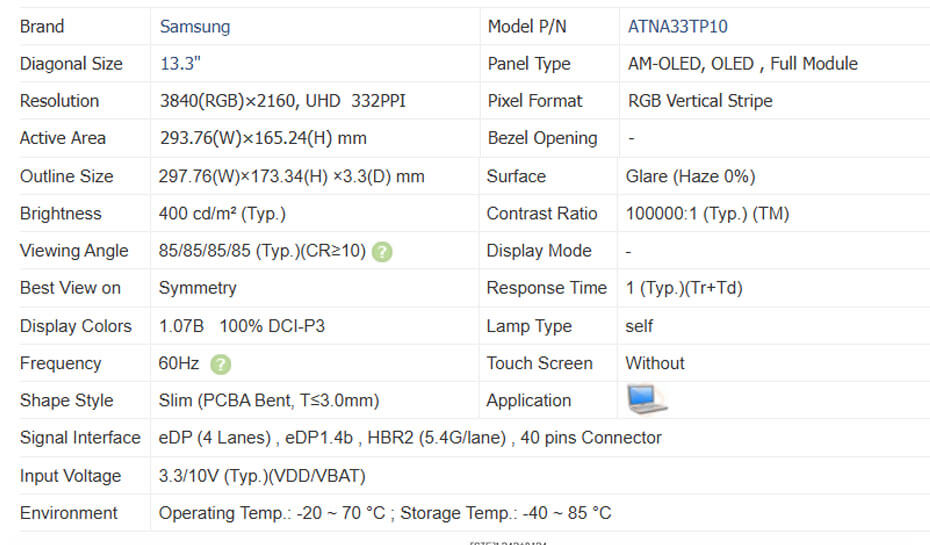

 ATNA33TP10 is a 13.3 inch diagonal AM-OLED display screen product, it self emiting, without touch screen.ATNA33TP10 supports display 3840(RGB)×2160 (UHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe, according to calculation of Panelook it's pixel density is 332 PPI. It features active area of 293.76(W)×165.24(H) mm, outline size of 297.76(W)×173.34(H)×3.3(D) mm, with surface treament of Glare (Haze 0%), net weight of 154g (Max.), shape stype of Slim (PCBA Bent, T≤3.0mm). ATNA33TP10 can provides 400 cd/m² display brightness 100000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 1 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 100% (DCI-P3). This product emiting itself . ATNA33TP10 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3/10V (Typ.)(VDD/VBAT). It's typical vertical frame rate (Fv) is 60Hz.

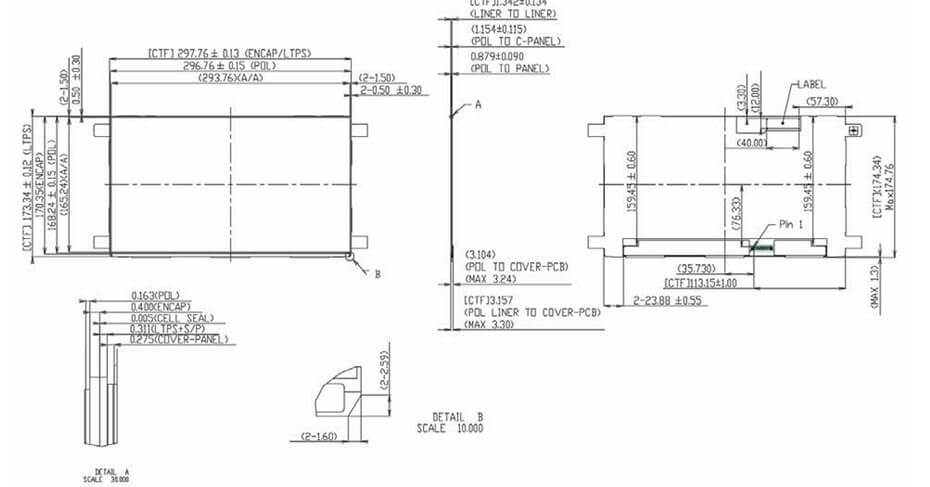

13.3 Inch LCD Display Drawing
