7.1"-10.1" LCD Display (7.8")

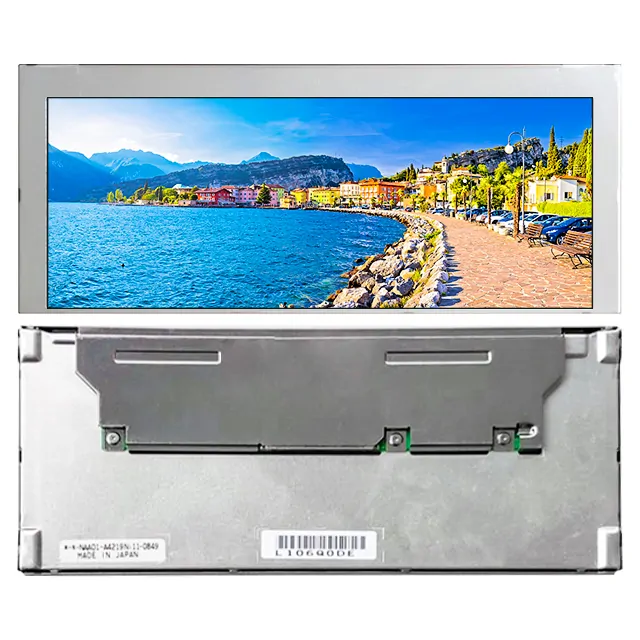

7.8 Inch 800x300 Lcd Display With Led Driver High Brightness Wide Temperature Ips Wide Viewing Angle

  • Part No.:ET078AA01
  • Size:7.8″ inch
  • Resolution:800x300
  • Panel Interface:LVDS (1 ch,6/8-bit),30 pins Connector
  • Display mode:a-Si TFT-LCD,LCM
  • Outline Dimension:187.8(H)x72.3(V)mm
  • Active Area:
  • Viewing Angle L/R/U/D:88/88/88/88
  • Brightness(cd/m2):500cd/m2
  • Operation / Storage Temp:30 / 80
  • Touch:no

Wide Temperature,WLED Backlight,Life ≥ 100K hours,With LED Driver,Bar Display,180° Reverse,6/8 bit,Matte    NCM, Landscape view

Diagonal Size        7.8 inch  (8/15 cut of 8.5") Type                  a-Si TFT-LCD, LCM
Pixel Format      800(RGB)×300  109PPI Configuration        RGB Vertical Stripe
Active Area        184.8(H)×69.3(V) mm Outline Dim.        207(H)×86(V) mm
Bezel Area        187.8(H)×72.3(V) mm Treatment          Antiglare, Hard coating (3H)
Luminance      500 cd/m² (Typ.) Contrast Ratio   1000:1 (Typ.) (TM)
View Direction    Symmetry Response Time     12/12 (Typ.)(Tr/Td)
Viewing Angle      88/88/88/88 (Typ.)(CR≥10) Operating Mode   SWV, Normally Black, Transmissive
Support Color      262K/16.7M   72% NTSC Light Source        WLED , 100K hours , With LED Driver
Weight       200g (Typ.) Designed For      Industrial Stretched Bar LCD
Frame Rate      60Hz Touch Panel      Without
Interface Type      LVDS (1 ch, 6/8-bit) , 30 pins Connector Power Supply      12.0V (Typ.)
Environment Operating Temperature:     -30 ~ 80 °C ; Storage Temperature: -30 ~ 80 °C
