8.8 Inch High Brightness LCD Display Overview

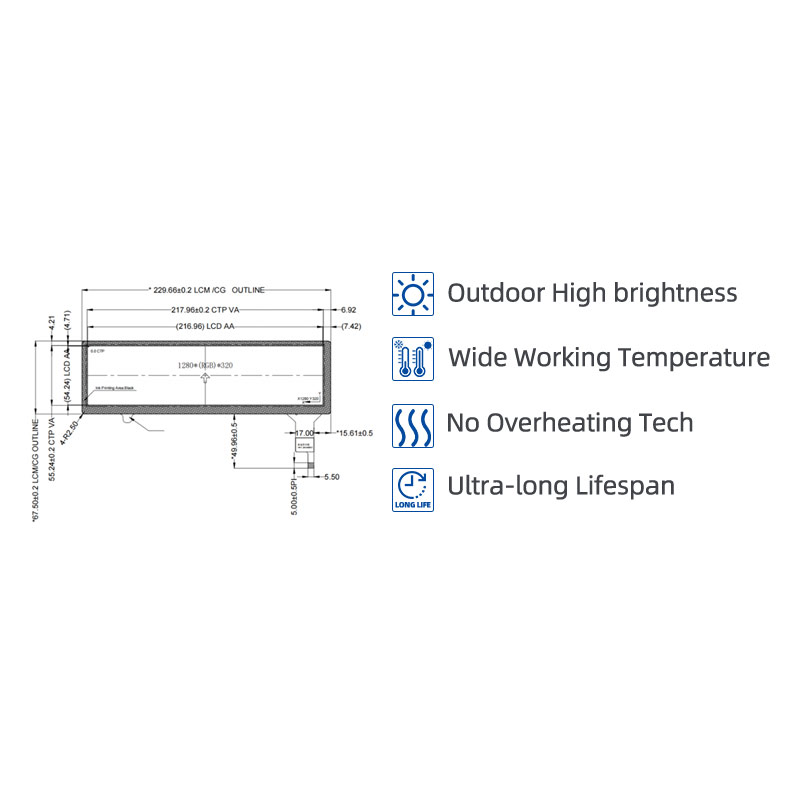

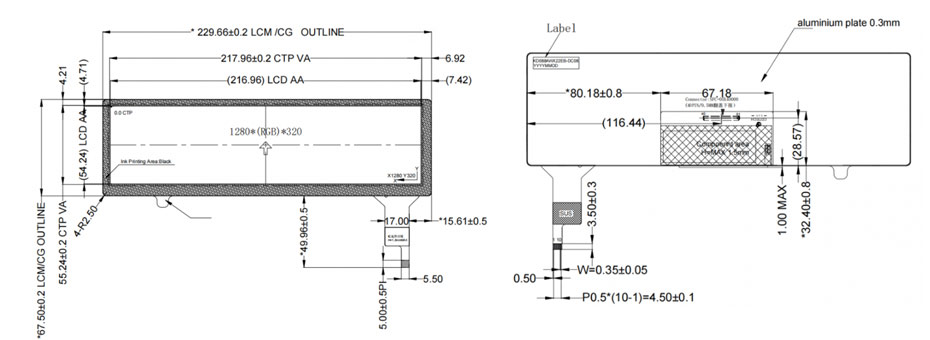

The ET088BA01-KDT is an 8.8-inch high-brightness IPS TFT LCD display with a 1280×320 resolution and an LVDS interface. This transmissive display delivers a typical brightness of 1000 cd/m² and offers viewing angles of 80° in all directions. It features an active area of 216.96×54.24 mm within an outline size of 229.66×67.5 mm. The display supports capacitive touch input and operates over a temperature range of –20 °C to 70 °C, with storage temperatures from –30 °C to 80 °C.

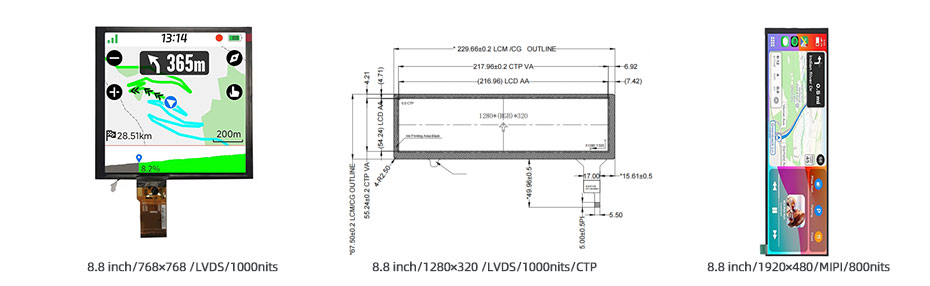

More 8.8 Inch High Brightness Display For Reference
ET088SQ01-DB (768x768, LVDS ,1000nits, -20~70°C, 179.4x179.6mm)
ET088BA01-KDT (1280x320, LVDS ,1000nits, -20~70°C, 229.66x67.5mm, CTP)
ET088BA01-Z (1920x480, MIPI, 800nits, -20~70°C, 231.3x64.3mm)
Outdoor High Brightness Displays Technology
YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options
Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
Production and Manufacturing
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
