7.1"-10.1" LCD Display (9")

9 Inch High Brightness Display 800nits IPS 1280x720 LVDS TFT LCD Display With Capacitive Touch

Part No.:ET090WX01-KDT
Size:9″ inch
Resolution:1280x720
Panel Interface:LVDS
Display mode:Transmissive

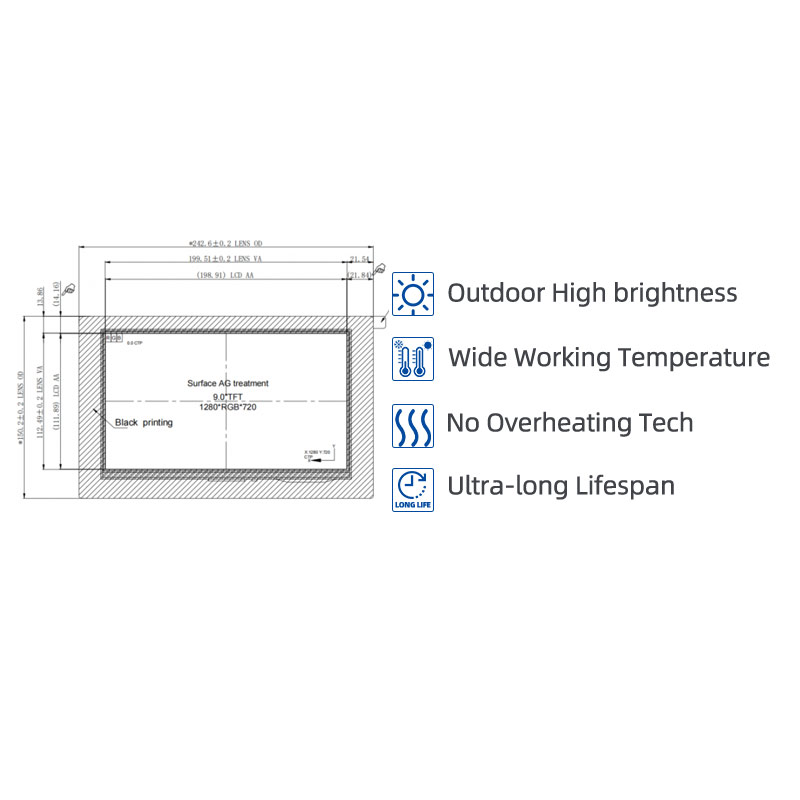

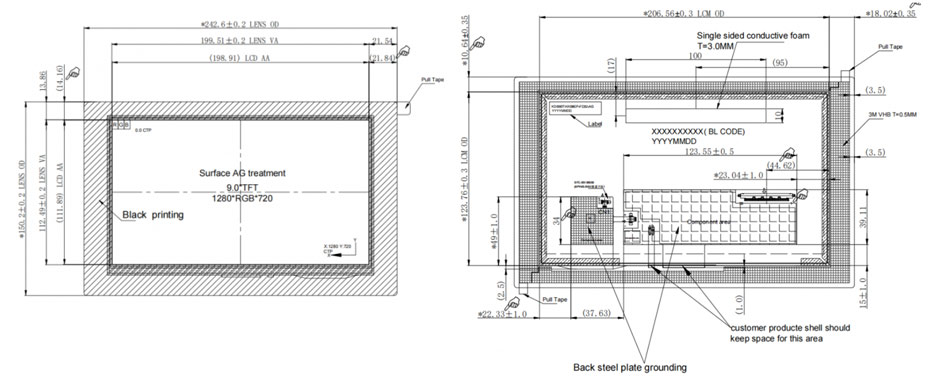

Outline Dimension:242.6x150.2mm
Active Area:198.91x111.89mm
Viewing Angle L/R/U/D:85/85/85/85
Brightness（cd/m2）:800(Typ.)
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:yes

9 Inch High Brightness LCD Display Overview
9 Inch High Brightness Display 800nits IPS 1280x720 LVDS TFT LCD Display With Capacitive Touch.

More 9 Inch High Brightness Display For Reference

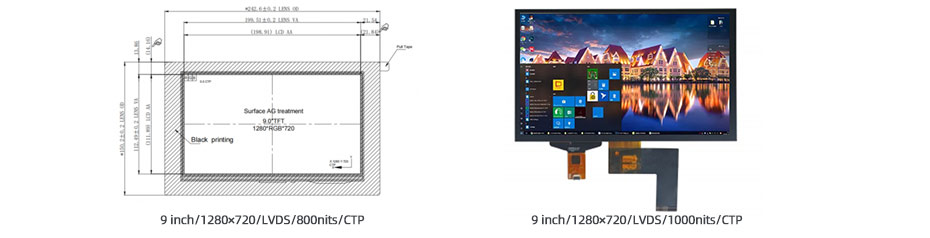

ET090WX01-KDT (1280x720, LVDS ,800nits, -20~70°C, 242.6x150.2mm, CTP)
ET090WS01-KDT (1024x600, LVDS ,1000nits, -20~70°C, 210.7x126.5mm, CTP)

Outdoor High Brightness Displays Technology

YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
